HK60-Q-3PS 3-Piece Electric Actuator Ball Valve
What Is Electric Actuated 3-Piece Ball Valve?
Electric actuated 3-piece ball valve is a type of valve that uses an electric actuator to control the opening and closing of the valve. The 3-piece design of the valve refers to the construction of the valve body, which is made up of three separate pieces that can be easily disassembled for maintenance or repair. The ball valve itself consists of a spherical ball with a hole in the center that allows for the flow of fluid through the valve. When the electric actuator is activated, it rotates the ball within the valve body, either opening or closing the flow of fluid. Electric actuated 3-piece ball valves are commonly used in industrial applications where precise control of fluid flow is required, such as in chemical processing, oil and gas, and water treatment industries.
Benefits Of Electric 3-Piece Ball Valves:
COVNA electric 3-piece ball valves provide the most flexible fluid control solution. It can be customized as threaded connection, flange connection, clamp connection or welded connection to meet your various piping connection needs. Furthermore, the advantage of the 3-piece ball valve is that it is easy to disassemble, which will facilitate your routine valve maintenance and prolong the service life of the valve.
At the same time, the advantage of electric actuators is that they can receive and feedback signals to help you achieve remote control and regulate flow.
Features Of 3-Piece Electric Actuated Ball Valve:
● 3-piece ball valve design. Easy to maintain and repair to extend the lifespan
● 2 Versions of seals for choice: PTFE and PPL. To meet various mediums requirements
● Multi control methods for your choice: AC/DC power supply, signal control, Bluetooth control and manual override to help you control locally and remotely.
● Full port design with high flow rate feature

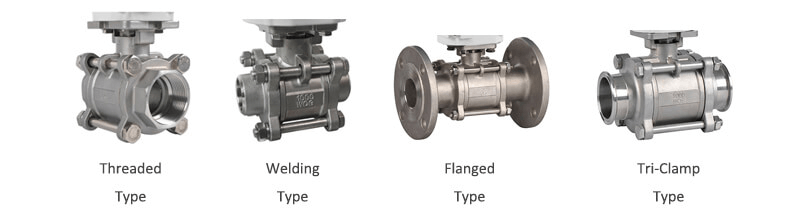

● Available in threaded, flanged, tri-clamp, and welding connections to meet your pipeline's standard
● Available in normally closed type or normally open type
● Vast applications like water treatment, HVAC, paper & pulp, power plant, FGD industry, and other applications
Technical ParametersOf 3-Piece Electric Actuated Ball Valve:
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10 / 16 / 25 / 40 / 64 bar |
| Temperature Of Media | -10 to 180℃ (14℉ to 356℉) | Suitable Media | Water, Air, Oil, Gas, Pulp, etc |
| Structure | 2 Way 3-Piece ball valve | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Port size range | DN08 to DN100 | Voltage Tolerance | ±10% |
| Actuator Type | ON OFF Type, Modulating Type, Intelligent Type and Explosion-proof Type | Connections Options | Threaded/Flanged/Welding/Tri-clamp |

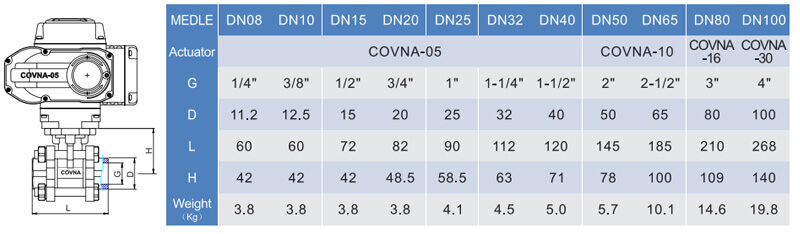

Dimension Of 3-Piece Electric Actuated Ball Valve:
Other COVNA Electric Actuator Options:
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
Technical Parameter Of COVNA Quarter-Turn Electric Actuator:
COVNA Quarter-Turn Electric Actuator uses a digital control system, which has the characteristics of high precision, fast response speed, and good stability, and can meet different industrial application requirements. In addition, the product also has multiple protection functions such as explosion-proof, waterproof, and dustproof, and can operate stably for a long time in harsh working environments
● ON/OFF Type Electric Actuator: For 90 degrees fully open and close.
● RegulationType Electric Actuator: For adjusting the switch angle from 0 degrees to 90 degrees.
● Intelligent Type Electric Actuator: For adjusting the switch angle from 0 degrees to 90 degrees with a display screen.
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Model | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90°Cycle Time | 20s/60s | 15s/30s/60s | 30s/60s | 100s | 100s | 100s | ||
| Angle of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Product Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Voltage Option | AC 110V, AC 220V, AC 380V, DC 12V, DC 24V | |||||||
| Insulation Resistance | DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V | |||||||
| Withstand Voltage | DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute | |||||||
| Protection Class | IP65 | |||||||
| Installation Angle | Any | |||||||
| Electrical Connection | G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃to 60℃ | |||||||
| Control Circuit | A:ON/OFF type with light indicator signal feedback | |||||||
| B:ON/OFF type with passive contact signal feedback | ||||||||
| C:ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D:ON/OFF type with resistance potentiometer and neutral posistion signal feedback | ||||||||
| E:Regulation type with servo control module | ||||||||
| F:DC24V/DC12V dirct ON/OFF type | ||||||||
| G:AC380V three-phase power supply with passive signal feedback | ||||||||
| H:AC380V three-phase power supply with resistance potentiometer signal feedback | ||||||||
| Optional Function | Over Torque protectors, dehumidify heater, stainless steel coupling & yoke | |||||||
