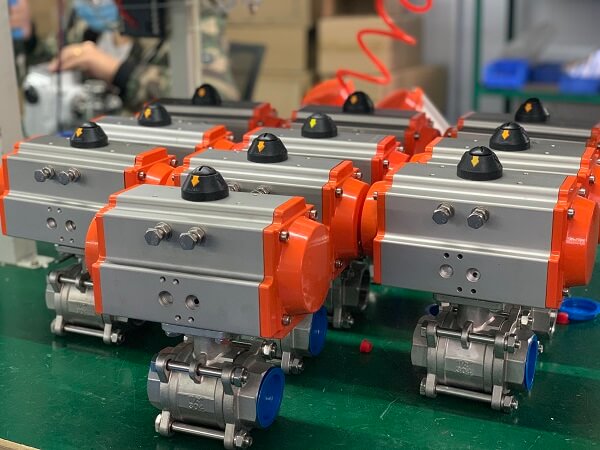

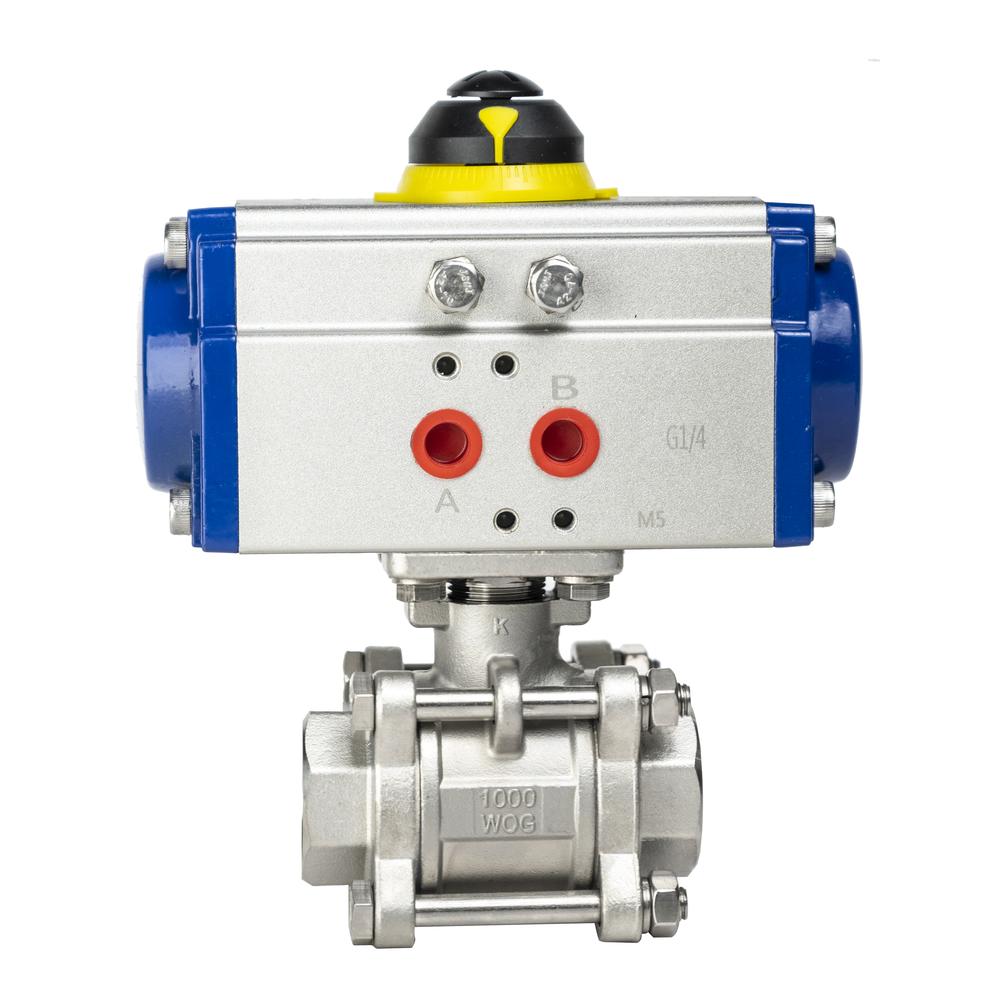

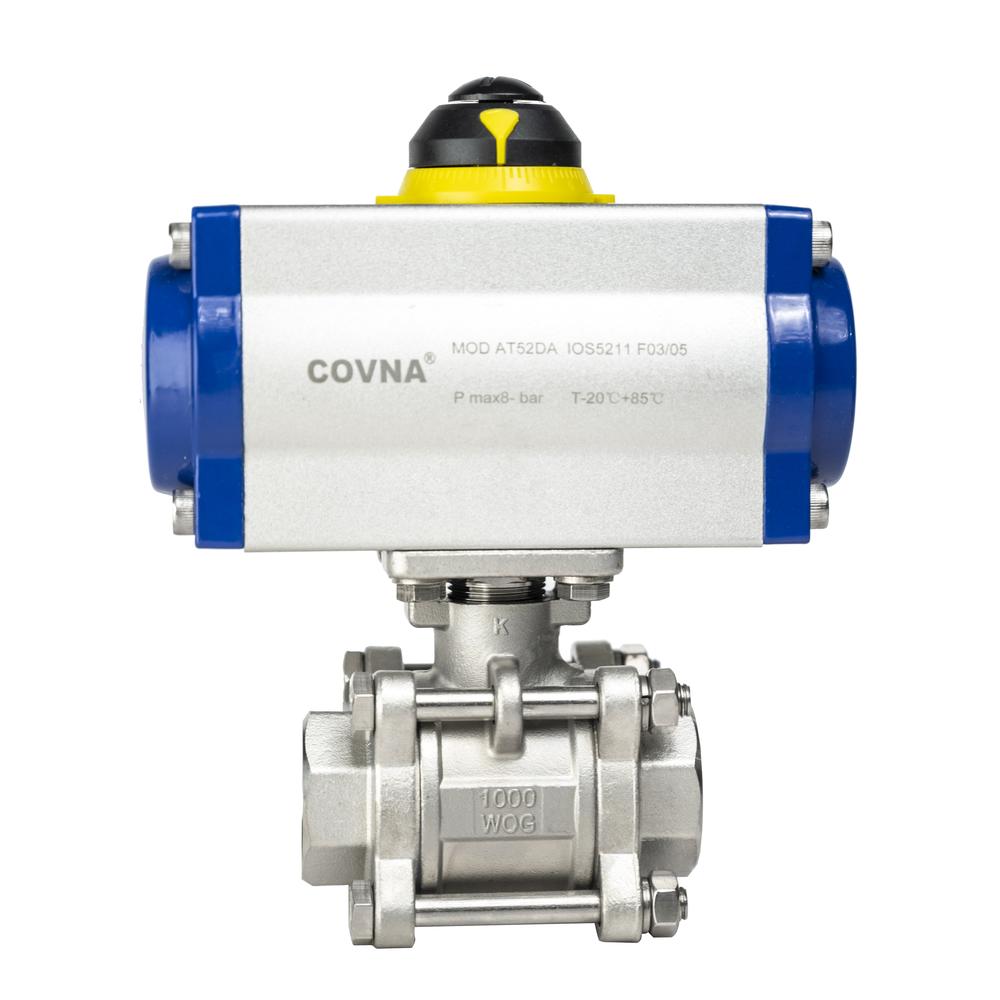

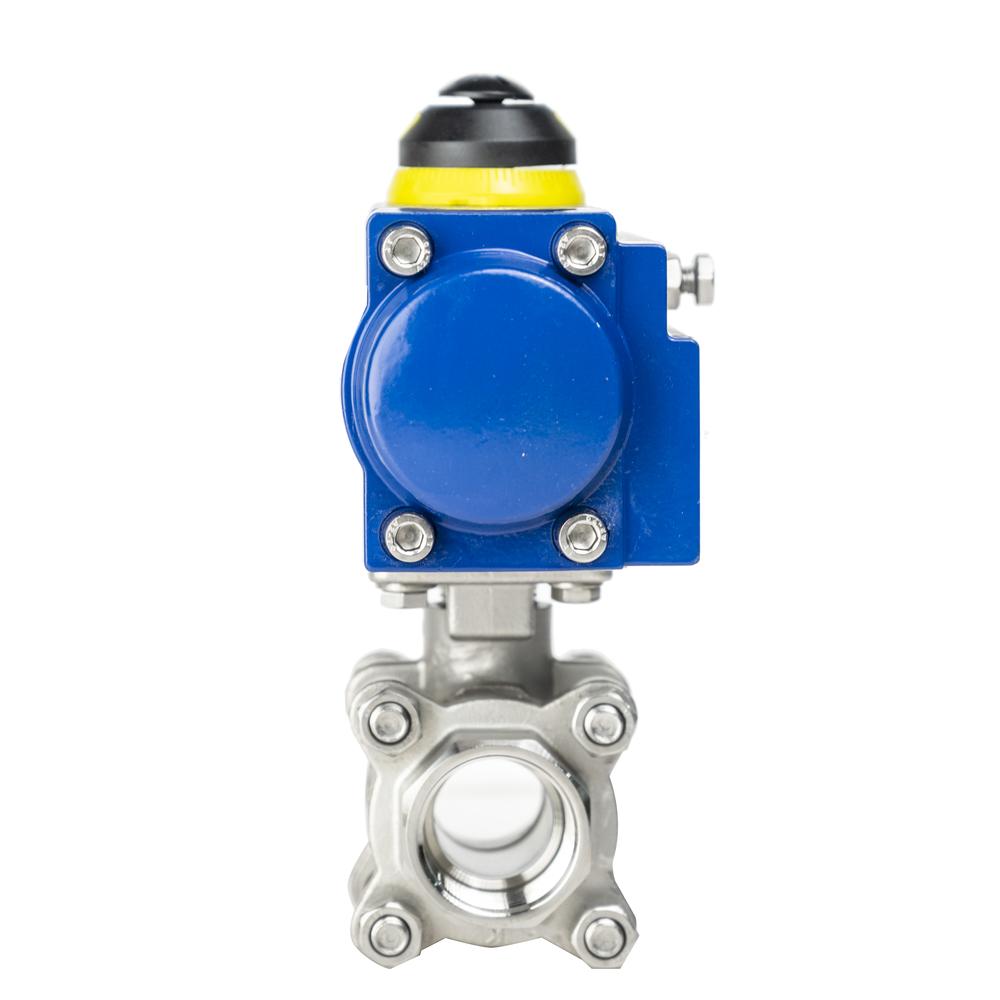

HK56-3PS Stainless Steel Pneumatic Actuator Ball Valve
Benefits of Pneumatic 3-Piece Ball Valves:
COVNA 3-piece ball valve provides a flexible solution, which can be customized into a variety of connection methods such as threaded connection, flange connection, clamp connection and welded connection. The three-piece ball valve is a full-bore valve with the advantage of large flow. In order to meet the customer's requirements for valves, COVNA valves have undergone material testing and leakage testing to ensure the quality of the valve and avoid losses caused by the valve.
At the same time, the pneumatic actuator can help customers to remotely control the three-piece ball valve, improve production efficiency and reduce labor costs
Features Of HK56-3PS Stainless Steel Pneumatic Actuator Ball Valve:
● Rack and pinion pneumatic actuator with high torque up to 4678Nm
● Available in spring return and double acting type actuator to meet your project's requirements
● Also available in welding, tri-clamp, threaded and flange connection types for your choice
● Easy to install and easy to repair to extend the lifespan
● 1 Million lifespans. Offering a cost-effective valve solution for your project
Technical Parameters Of HK56-3PS Stainless Steel Pneumatic Actuator Ball Valve:
| Size Range | DN08 to DN100 | Valve Material | Stainless Steel 304/316/316L |
| Medium | Air, water, steam, oil, gas, etc | Connection | Thread/Flange/Tri-clamp/Welding |
| Seal Options | NBR, EPDM, VITON, PTFE | Working Pressure | 10 / 16 / 25 40 / 64 bar (145 / 232 / 362 / 580 / 928 psi) |
| Temperature Of Medium | -10 to 180℃(14℉ to 356℉) | Actuator Type | Spring Return / Double Acting Pneumatic Valve Actuator |
| Core Material Options | Stainless Steel 304/316/316L | Applications | Water treatment, Packing industry, Food and beverage, etc |
Dimension of HK56-3PS Stainless Steel Pneumatic Actuator Ball Valve:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, Pneumatic Solenoid Valve, Gearbox,F.R.L |
COVNA AW Series Pneumatic Actuator:
AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
