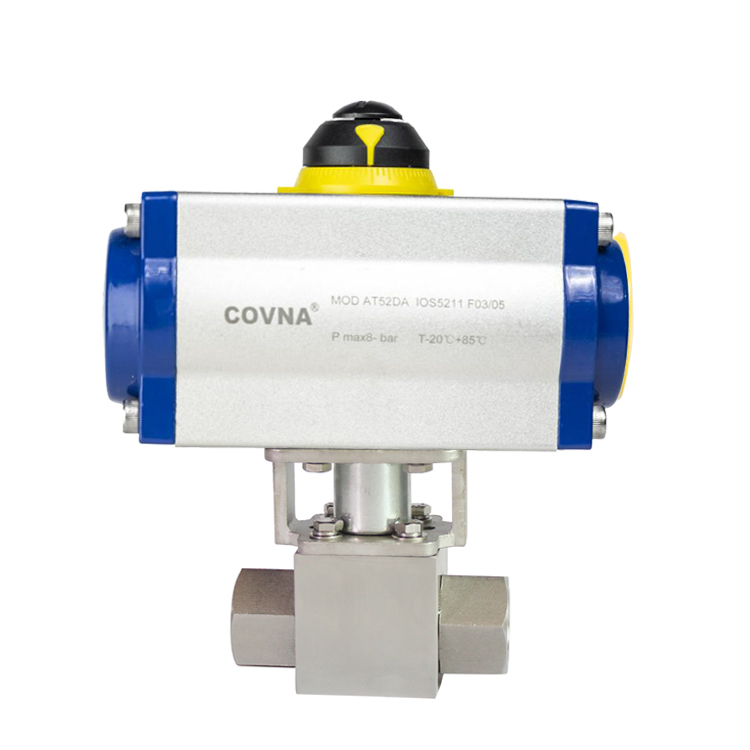

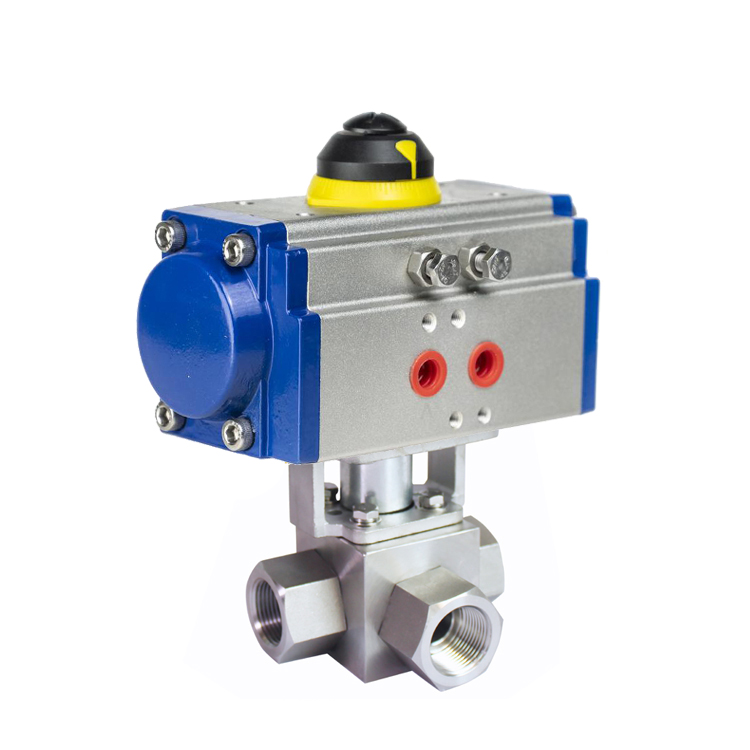

HK56GT 3 Way High Pressure Pneumatic Ball Valve

Short Description:

Manufacturing

3 Way High Pressure Pneumatic Ball Valve

in T port and L port for your choice. Good diverter performance. 1 million lifespans, fast open/close and easy to install.
As a pneumatic ball valve, COVNA manufactures all types of ball valves for your choice! We will help you select the right valve and help you save time and cost.
Consult us to get the right pneumatic ball valve!

Model

Actuator Type: Spring Return / Double Acting
Air Supply Pressure: 2.5 bar to 8 bar
Pressure: 10 bar to 250 bar
Body Material: Stainless Steel 304/316/316L
Temperature Of Media: -10 to 180℃ (14℉ to 356℉)
Suitable Media: Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Pneumatic 3-Way High-Pressure Ball Valves:

COVNA pneumatic three-way high-pressure ball valve provides you with a safe and reliable fluid control solution. Three-way high-pressure ball valve can withstand pressures up to 400bar. And it could perfectly match the needs of transport, shut-off and changing the flow direction of the medium. It is suitable for automatic integrated systems such as atomization systems and cleaning systems.

Equipped with a pneumatic actuator for remote control which could help you increase productivity and gain more market share.

Features Of HK56GT 3 Way High-Pressure Pneumatic Ball Valve:

● High-pressure range from 10 bar to 250 bar

● Available in stainless steel 304/316/316L.Offering a no-rust solution for your applications

● Spring return and double-acting pneumatic actuator for your choice

● Available in threaded and welding connection

● T port and L port for your choice

Technical Parameters Of HK56GT 3 Way High-Pressure Pneumatic Ball Valve:

Size Range	DN08 to DN50	Material	Stainless Steel 304/316/316L
Medium	Air, water, steam, oil, gas, etc	Core Material	Stainless Steel 304/316/316L
Structure Type	3 Way T port or L port	Working Pressure Range	10 bar to 250 bar
Temperature Of Medium	-10 to 180℃(14℉ to 356℉)	Actuator Type	Spring Return / Double Acting

Dimension Of HK56GT 3 Way High-Pressure Pneumatic Ball Valve:

Technical Parameters Of COVNA Pneumatic Valve Actuators:

Structure	Rack and pinion pneumatic valve actuator
Mounting	ISO5211, NAMUR, DIN3337
Air Supply Pressure	2.5 to 8 bar
Double Acting Type	Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm
Single Acting (Spring Return)	Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm
Optional Accessory	Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox

COVNA AW Series Pneumatic Actuator

AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.

● Double acting type: Torque range from 515Nm to 157,300Nm

● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
