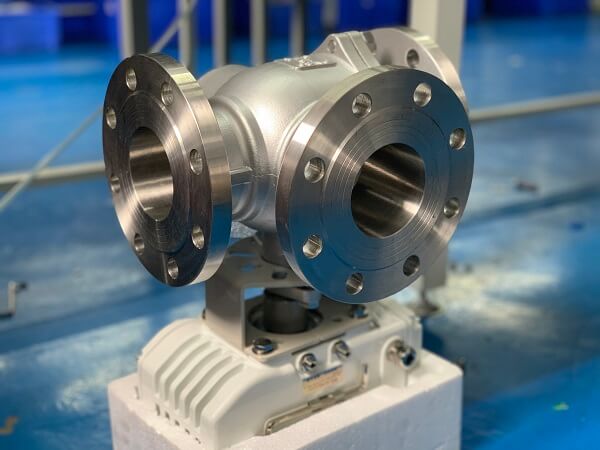

HK60-Q-TF Flanged 3 Way Electric Actuator Ball Valve

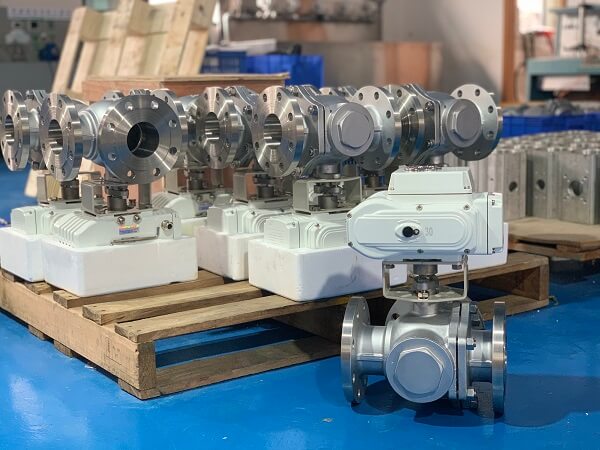

What Is COVNA Electric 3-Way Flanged Ball Valve?
COVNA Electric 3-Way Flanged Ball Valves provide a reliable and efficient fluid control solution. The three-way flanged ball valve is driven by an electric actuator, which can be easily controlled remotely, helping you improve production efficiency and reduce labor costs. Driven by AC/DC power supply and 4-20mA, 0-10VDC or 1-5VDC signal. To help you to start, stop and separate the flow.
The 3-way flanged ball valve can on-off or change the flow direction of the medium, helping to make the fluid control of your project easier. All of COVNA 3-way ball valves have T port type and L port type to help your project run well.

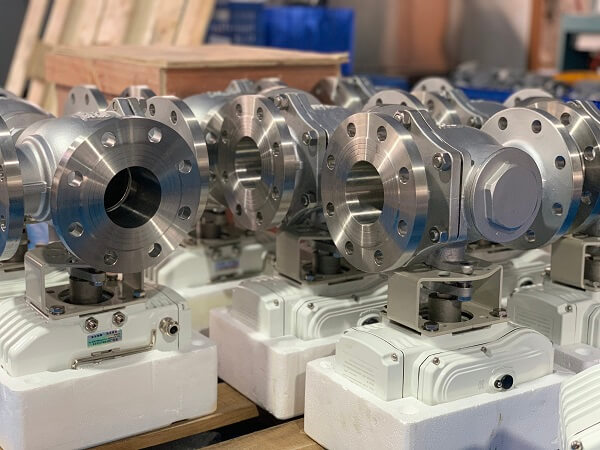

Features Of HK60-Q-TF Flanged 3 Way Electric Actuator Ball Valve
● 3 Way flanged connection with features including easy to connect and zero leakage
● Available in T port and L port. Offering the solution for the applications which need flow separate
● Available in ANSI, JIS, DIN, GB standard
● Available in normally open type or normally close type
● Widely used in wastewater treatment, paper and pulp, food and beverage, FGD industry, etc
Technical Parameters Of HK60-Q-TF Flanged 3 Way Electric Actuator Ball Valve
| Medium | Air, water, steam, oil, liquid, etc | Size Range | DN15 to DN200 |
| End Connection | Flanged (ANSI, JIS, DIN, GB) | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Structure | 3 Way L Port / T Port | Voltage Tolerance | ±10% |
| Core Material | Stainless Steel 304/316/316L | Temperature Of Media | -30 to 180℃(-22℉ to 356℉) |
| Working Pressure | 10 / 16 / 25 /40 / 64 bar | Actuator Type | ON/OFF type, Modulating type, Intelligent type, Multi-turn type |

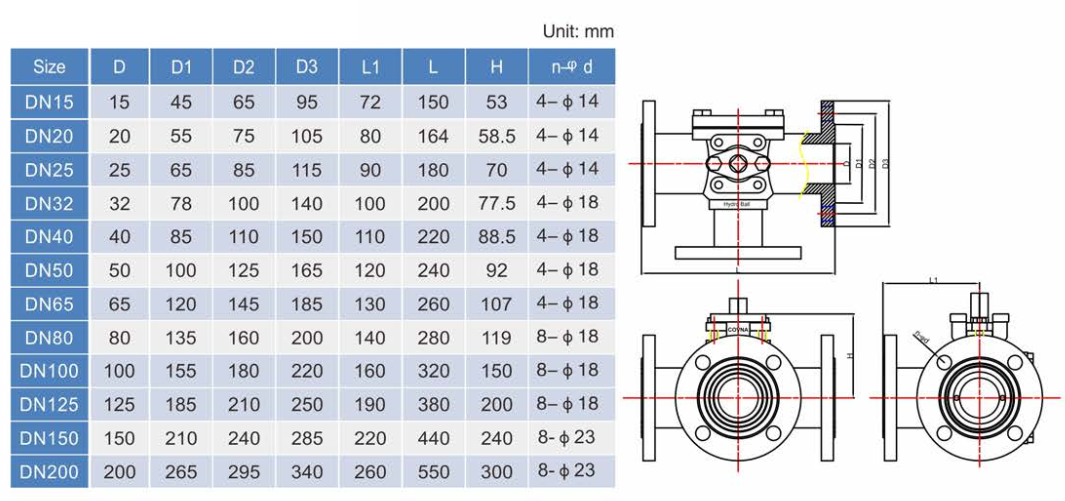

Dimension Of HK60-Q-TF Flanged 3 Way Electric Actuator Ball Valve
3-Way Ball Valve Flow Diagram
Technical Parameter of COVNA Motorized Valve Actuator
● ON/OFF type motorized valve actuator: 90 degrees part-turn rotation
● Regulation type motorized valve actuator: For regulating switch angle from 0 degrees to 90 degrees
● Intelligent type motorized valve actuator: Same function as regulation type but with an LCD display screen to allow you to check and regulate easier
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with the servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
Other COVNA Electric Actuator Options:
Besides, we also offer IP68 motorized valve actuator, explosion-proof motorized valve actuator and auto return electric actuator which suitable for large size valves for your choice
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
