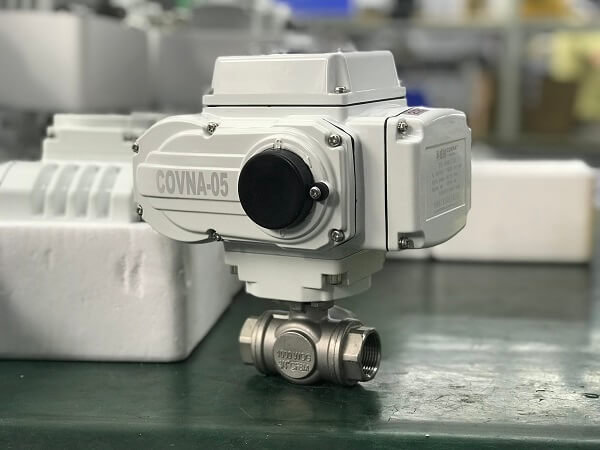

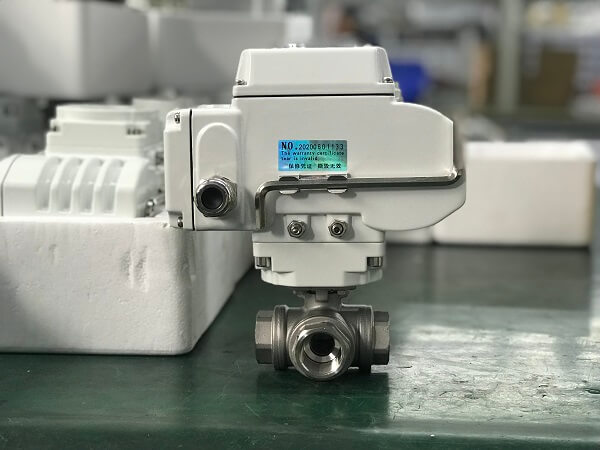

HK60-Q-T 3 Way Electric Ball Valve
What Is Electric 3 Way Ball Valve?
Electric 3-way ball valve(Motorized 3 way ball valve) means 3-way ball valve driven by electric actuator by AC/DC power supply and 4-20mA signal to open or close to start, stop or diverter the flow rate. 3 way ball valve has T type and L type options to meet your diverter requirements.
Valve body could be UPVC and stainless steel material to meet different medium requirements.
Meanwhile, the switch angle could be adjusted by the electric actuator to achieve flow rate control.
Consult us to get a free valve solution with the best price sales@covnavalve.com
Features Of HK60-Q-T 3 Way Electric Actuated Ball Valve:
● 3-Way threaded ball valve with excellent diverter performance. Available in T and L type to meet your requirements
● Threaded connection with features of easy to connect and not easy to leak
● Made of stainless steel material with features of strong and anti-corrosion performance. Suitable for air, water, steam, seawater, fuel and so on
● Multiple control methods like a manual override, signal control and AC/DC power supply. To let you control the valve remotely. And once some urgent happens, you could control it by manual override to keep the valve and the project safe.
Technical Parameters Of HK60-Q-T 3 Way Electric Actuated Ball Valve:
| Medium | Air, water, steam, oil, liquid, etc | End Connection | Threaded (G / NPT / BSP) |
| Port size range | DN08 to DN100 | Core Material | Stainless Steel 304/316/316L |
| Body Material | Stainless Steel 304/316/316L | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Structure | 3 Way (L port / T port) | Voltage Tolerance | ±10% |
| Temperature Of Media | -10 to 180℃(14℉ to 356℉) | Working Pressure | 10 / 16 bar |
3 Way Ball Valve Flow Diagram:
Dimension Of HK60-Q-T 3-Way Electric Ball Valve:
Technical Parameters Of COVNA Electric Actuator:
As a leader actuator valve manufacturer in China, we offer high quality valves and actuators to let your project run well and help you to remotely control the valve.
The electric actuator that we offer has 4 options: ON/OFF type, modulating type, intelligent type and explosion-proof type.
● ON/OFF type: 90 degrees fully open and close
● Modulating type: Adjustable open/close angle from 0 degrees to 90 degrees
● Intelligent type: Adjustable open/close angle with a display screen to let you check the situation easier
● Explosion-proof type: Design and manufacture on API explosion-proof standard
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP67 |
| Torque Range | 50 to 4,000 Nm |
| Model | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90°Cycle Time | 20s/60s | 15s/30s/60s | 30s/60s | 100s | 100s | 100s | ||
| Angle of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Product Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Voltage Option | AC 110V, AC 220V, AC 380V, DC 12V, DC 24V | |||||||
| Insulation Resistance | DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V | |||||||
| Withstand Voltage | DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute | |||||||
| Protection Class | IP65 | |||||||
| Installation Angle | Any | |||||||
| Electrical Connection | G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃to 60℃ | |||||||
| Control Circuit | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24V/DC12V direct ON/OFF type | ||||||||
| G: AC380V three-phase power supply with passive signal feedback | ||||||||
| H: AC380V three-phase power supply with resistance potentiometer signal feedback | ||||||||
| Optional Function | Over Torque protectors, dehumidify heater, stainless steel coupling & yoke | |||||||
Other COVNA Electric Actuator Options:
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
