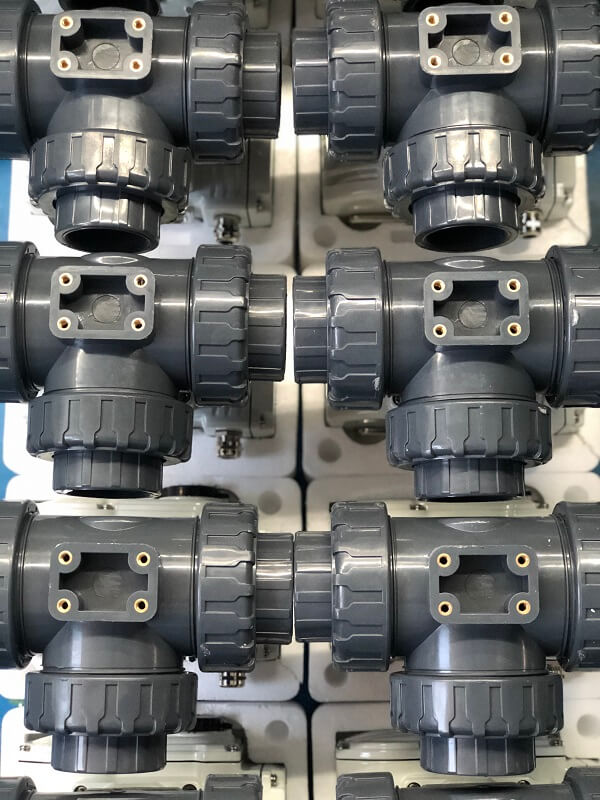

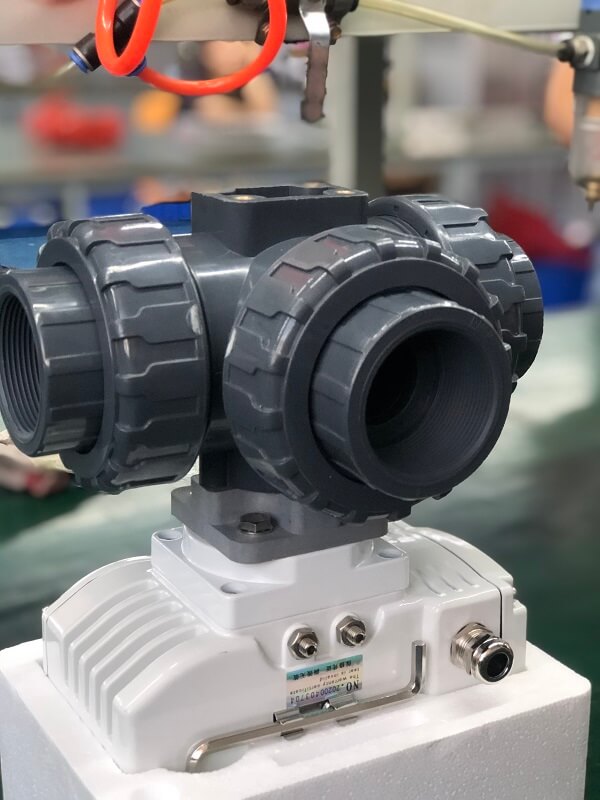

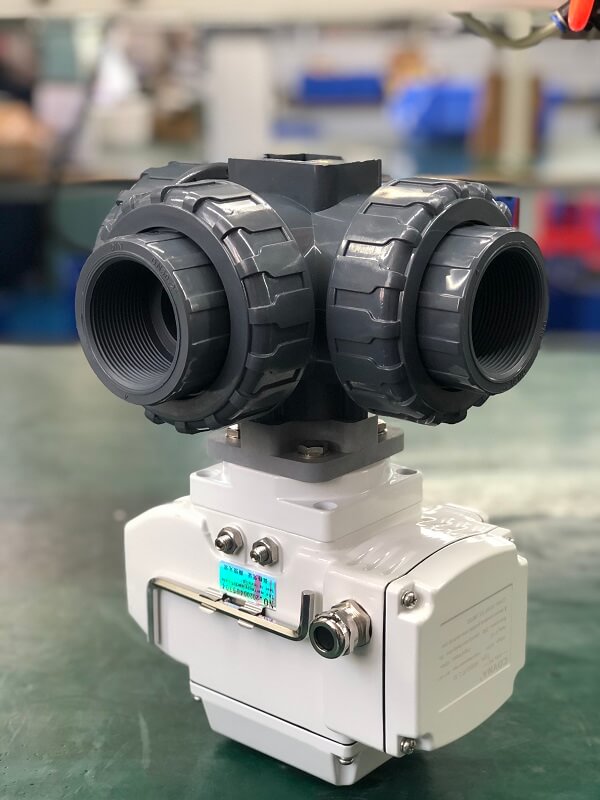

HK60-Q-PT True Union 3 Way PVC Electric Ball Valve
What Is Electric 3-Way PVC Ball Valve?
Electric 3-way PVC ball valve(motorized 3-way PVC ball valve) means a 3-way PVC ball valve driven by an electric actuator to 90 degrees open/close to achieving diverter performance. It could be divided into T port and L port to meet your diverter purpose. COVNA electric 3-way UPVC ball valve provides you with a cost-effective fluid control solution. UPVC three-way ball valve can be used for transport, shut off, diverter, confluence, or changing the direction of medium flow. The advantages of the three-way UPVC ball valve are low cost, lightweight, easy to install and maintain, providing a value for money valve solution.
Driven by AC/DC power supply, signal control helps you control remotely. Meanwhile, manual override is available. In the event of an emergency, you can use the handle to manually close/open the valve to ensure the safety of your project.
Features Of HK60-Q-PT True Union 3 Way PVC Electric Ball Valve:
● Available in T port and L port with excellent diverter performance
● PVC material ball valve with features of lightweight and low cost. Offering a cost-effective solution for your project.
● True union quick connection with features of easy to install and easy to repair
● High torque up to 4000Nm
● Available in ON/OFF type, modulating type and intelligent type for your choice to meet your requirements
● Available in normally open type and normally closed type
Technical Parameters Of HK60-Q-PT True Union 3 Way PVC Electric Ball Valve:
| Port size range | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" | Orifice(mm) | 15, 20, 25, 32, 40, 50, 65, 80, 100 |
| End Connection | True Union(Double Union) | Structure | T Port / L Port |
| Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | Voltage Tolerance | ±10% |
| Suitable Media | Water, Air, Wastwater, Oil, Gas, etc | Temperature Of Media | 60℃(140℉) |
| Working Pressure | 10Bar | Actuator Type | ON OFF Type, Modulating Type and Intelligent Type |
Dimension Of HK60-Q-PT True Union 3-Way PVC Electric Ball Valve:
3 Way Ball Valve Flow Diagram:
Technical Parameters Of COVNA 90 Degrees Quarter-Turn Electric Actuator:
● ON/OFF Type Electric Actuator: 90-degree rotation. Fully open and fully closed.
● Regulation Type Electric Actuator: With the function of adjusting the switch angle from 0 degrees to 90 degrees
● IntelligentType Electric Actuator: Adjustable switch angle from 0 degrees to 90 degrees with a display screen
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 or IP67 |
| Model | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90°Cycle Time | 20s/60s | 15s/30s/60s | 30s/60s | 100s | 100s | 100s | ||
| Angle of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Product Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Voltage Option | AC 110V, AC 220V, AC 380V, DC 12V, DC 24V | |||||||
| Insulation Resistance | DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V | |||||||
| Withstand Voltage | DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute | |||||||
| Protection Class | IP65 | |||||||
| Installation Angle | Any | |||||||
| Electrical Connection | G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃to 60℃ | |||||||
| Control Circuit | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with servo control module | ||||||||
| F: DC24V/DC12V dirct ON/OFF type | ||||||||
| G: AC380V three-phase power supply with passive signal feedback | ||||||||
| H: AC380V three-phase power supply with resistance potentiometer signal feedback | ||||||||
| Optional Function | Over Torque protectors, dehumidify heater, stainless steel coupling & yoke | |||||||
Other COVNA Electric Actuator Options:
Whatsmore, we also offer explosion-proof type electric actuators, water-proof type electric actuators and auto return type electric actuators for your project
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
