2W-EX Explosion Proof Solenoid Valve – Brass

Short Description:

2W-EX Brass Explosion Proof Solenoid Valve

has good sealing performance solenoid coil that is not easy to burn. Suitable for LPG, gas industries. Offering all types of solenoid valves in explosion-proof types, water-proof types, high-temperature types, high-pressure types for various applications. Consult us to get the best price!

Model

Function: Normally Closed
Pressure: 0 to 10 bar
Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media: -10 to 80℃ (14℉ to 176℉)
Suitable Media: Water, Air, Oil, Gas, etc
Material: Brass

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Solenoid Valves Manufacturer

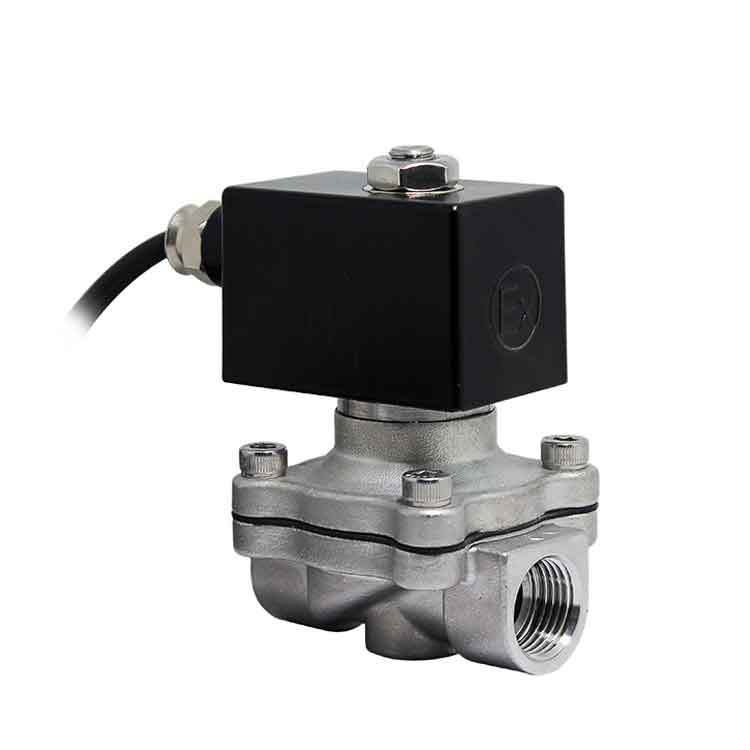

In addition, we also offer 2W stainless steel explosion proof solenoid valves to cater to a wider range of applications.

Stainless steel material provides excellent corrosion resistance and high-temperature durability, making it suitable for handling various liquid and gas media. Whether it is in explosive environments such as chemical, petroleum, natural gas, or mining, our stainless steel explosion-proof solenoid valves deliver reliable fluid control and safe operations.

Features Of 2W-EX Brass Explosion Proof Solenoid Valve:

● Direct lifting diaphragm construction with high frequency.

● Open from 0 bar with large flow rate.

● Applied to low pressure system.

Technical Parameters Of 2W-EX Brass Explosion Proof Solenoid Valve:

Port size	3/8", 1/2", 3/4", 1", 1¼", 1½", 2"	Orifice(mm)	10, 15, 20, 25, 32, 40, 50
Port Thread	BSPP, BSPT, NPT	Function	Normally Closed
Pressure	0 to 10 bar	Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media	-10 to 80℃ (14℉ to 176℉)	Suitable Media	Water, Air, Oil, Gas, etc
Material	Brass	Coil	EX1620,20VA(AC),16W(DC),IP65,100%ED

Size	Port Size	Orifice	Cv	Min Pressure	Max Pressure
Size	Port Size	Orifice	Cv	Min Pressure	AC(20VA)	DC(16W)
2WEX-10	3/8"	10	4.5	0.0 MPa	0.7 MPa	0.7 MPa
2WEX-15	1/2"	15	4.5	0.0 MPa	0.7 MPa	0.7 MPa
2WEX-20	3/4"	20	9.3	0.0 MPa	0.7 MPa	0.7 MPa
2WEX-25	1"	25	12	0.0 MPa	0.7 MPa	0.7 MPa
2WEX-32	1 1/4"	32	24	0.0 MPa	1.0 MPa	1.0 MPa
2WEX-40	1 1/2"	40	29	0.0 MPa	1.0 MPa	1.0 MPa
2WEX-50	2"	50	48	0.0 MPa	1.0 MPa	1.0 MPa
