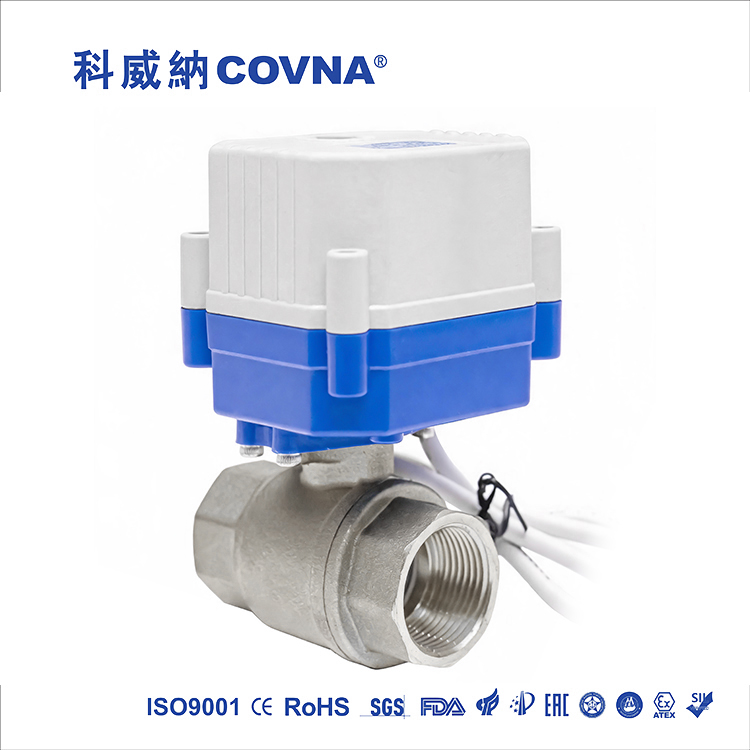

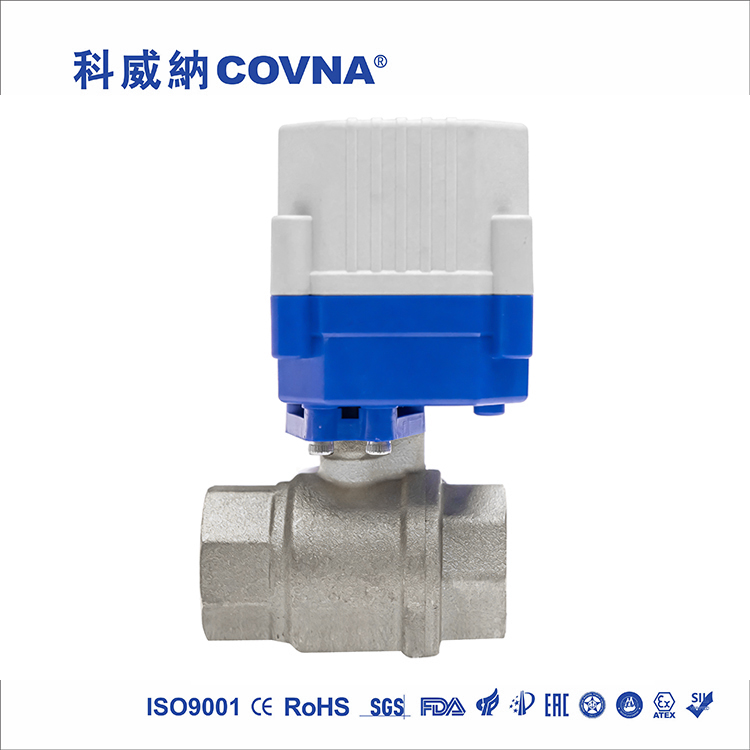

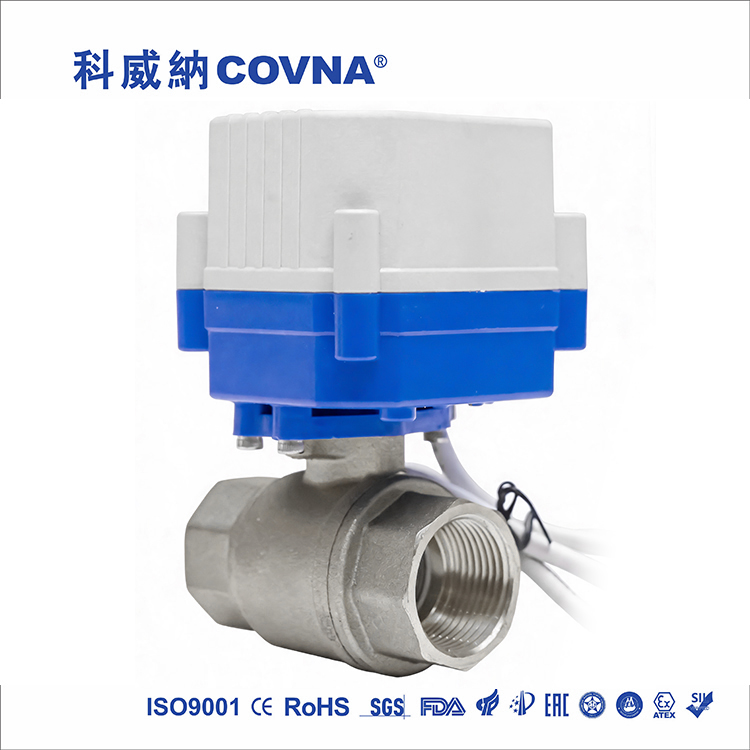

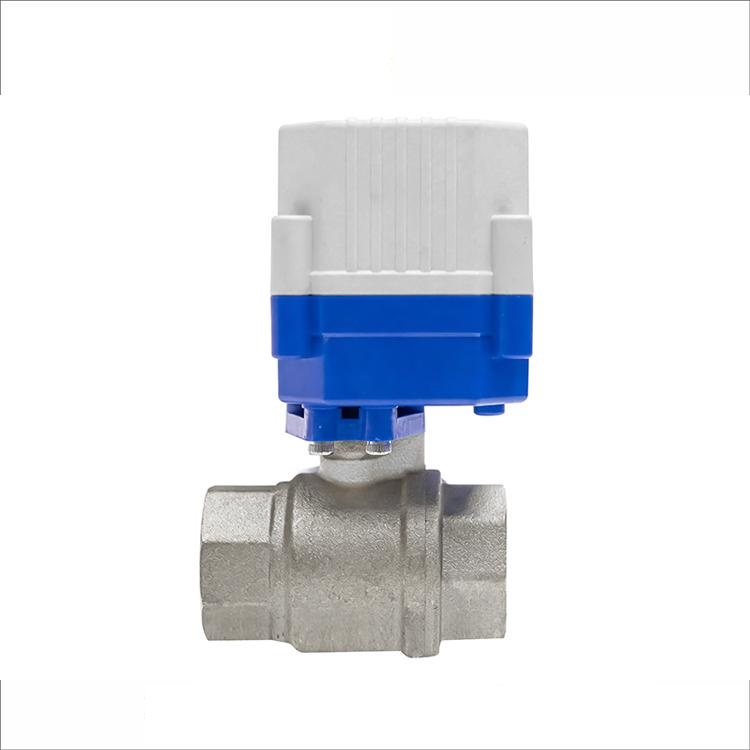

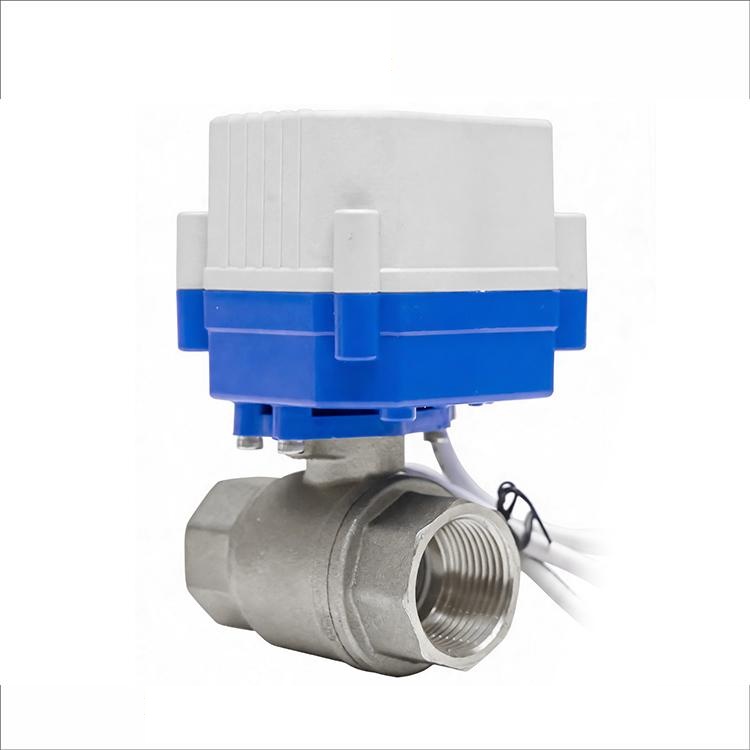

COVNA CWX-15Q 5V DN15 SS304 Electric Ball Valve for Water

Short Description:

COVNA Miniature Timer Control Motorized Ball Valve with brass and stainless steel material, gray and black color. Working voltage: AC110V~230V, DC9~24V, size range from 1/2”~2”; Zero leakage and good sealing performance. User friendly ON/OFF timer control. OEM branding available. It has been successfully applied in many industrial fields, such as air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments, flue gas sampling and other industries

Model: HK65-S
Size Range: 1/2″ to 3/4″
Pressure Range: 0~1.0MPa
Material: Stainless steel, Brass

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

COVNA CWX-15n Mini Motorized Ball Valve

This product uses an all copper gear design to achieve high-precision output torque. It has very high suitability for multi-channel weighing systems. The product is compact in structure and its size is small so it is very easy to set a time control. It also supports feedback signals for computer intelligent unit testing. It boasts exceptional IP67 level sealing performance, achieving zero leakage and ±2.5% hysteresis.

Technical Parameters of Valve Body

Model	HK65-S	Voltage	AC110V~230V, DC9~24V
MOQ	1 Set	Working current	≤80mA
Open/Close time	≤7s	No. of Ways	2 Way
Torque output	2.0N.M	End Connection	BSP Thread
Life time	100,000 times	Medium	Water, Air

Body Material	Brass, ss304, ss316(optional)	Temp. of Media	2°C to 90°C
Valve Ball	PVC, UPVC, Brass, Stainless Steel(Optional)	Certification	ISO 9001, CE, TUV, SGS
Sealing Material	SEPDM	Indicator	Yes
Keeping Valve Open Time	0H:0M:OS-99H:59M:59S	Manual override	NO
Actuator material	Engineering Plastics	Ambient temperature	-15°C to 50°C
