HK60ZD Multi Turn Electric Actuated Knife Gate Valve
Benefits Of Electric Knife Gate Valves:
The COVNA Electric Knife Gate Valve is an intelligent valve that provides you with a flexible and reliable fluid control solution. Knife gate valves are opened or closed by electric actuators. Receive or feedback signals to the control system through the electric actuator to realize remote control and help you realize industrial automation. Widely used in paper and pulp, cement plants, battery slurry pipelines, etc.
Features Of HK60Z-D Electric Actuated Knife Gate Valve:
● Multi-turn electric actuator with high torque up to 10,000Nm
● Aluminum shell with features of anti-oxidation, anti-corrosion, can be used outdoors
● Long service life and excellent cutting performance
● Suitable for mud, pulp, wastewater, and other mediums
● Stainless steel material with anti-corrosion performance
● Available in Profibus Fieldbus, ModbusFieldbus, HartFieldbus, FFFieldbus and Device NetFieldbus
● Electric gate valve type is available for your project! Welcome to consult us to get more info and discount price.
Technical Parameters Of HK60Z-D Electric Actuated Knife Gate Valve:
| Actuator Type | Multi-turn electric actuator | Size Range | DN15 to DN600 |
| Connection | Lugged or Flanged | Seal Material | PTFE / Metal |
| Medium | Air, water, steam, oil, mud, etc | Working Pressure | 16 bar (232 psi) |
| Body Material | Carbon Steel, Stainless Steel 304/316/316L, Cast Iron, and Cast Steel | Temperature Of Media | -10 to 400℃(14℉ to 752℉) |
Technical Parameters Of Electric Gate Valve Actuator:
| Power Supply | 380V AC +10% / 50 Hz plus or mins 5%, or custom220V AC +10% / 50 Hz plus or mins 5%, or custom |
| Input Signals | A) Analog quantity 4mA-20mA DC, input impedance 250ΩB) On-of quantity active 24V DCC) The Profibus-DP or MODUS (optional) |
| Output Signal | A) 4mA-20mA DC, load resistance 750Ω or lessB) 6 groups of passive contactsC) Profibus-DP or MODUS (optional) |

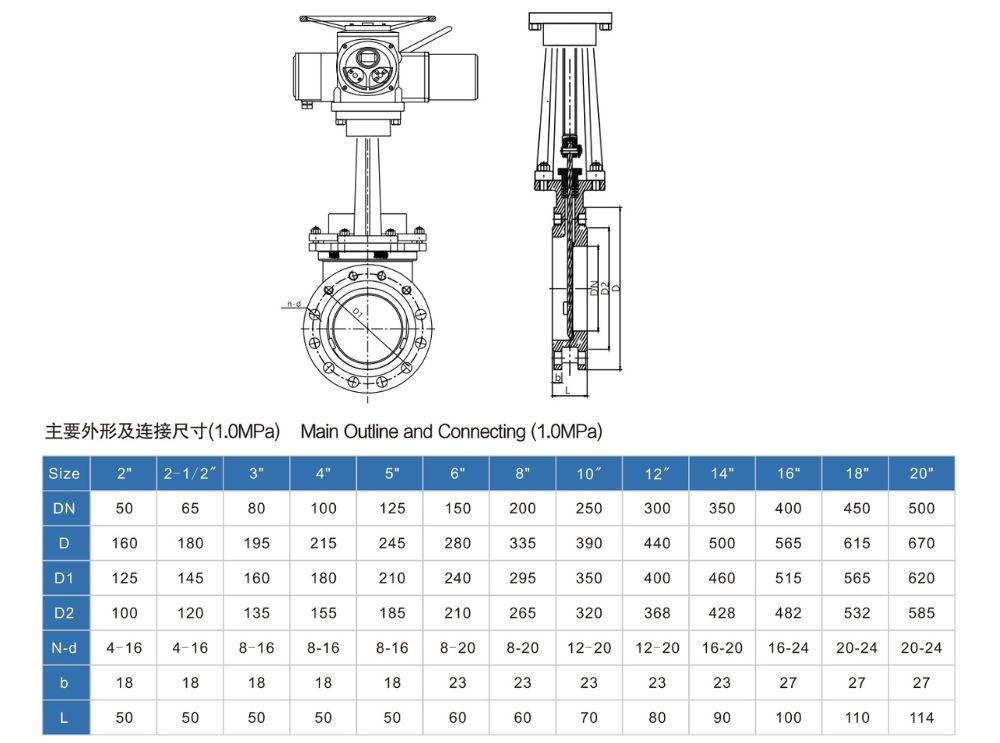

Dimension Of Multi-Turn Electric Gate Valve:
