Motor Operated Butterfly Valve
What Is Motor Operated Butterfly Valve?
Motor operated butterfly valve is a type of valve that utilizes an electric motor to control the opening and closing of a butterfly disc inside the valve body.
One of the key features of motor operated butterfly valves is their precise control over flow rates. The electric motor allows for accurate positioning of the disc, enabling precise adjustment of flow through the valve. This level of control is essential for maintaining system efficiency and optimizing processes.
It comes in various connection modes, including wafer type, lug type, flange type, and tri-clamp type.
Materials range from stainless steel to cast iron and plastic, while sealing options include soft and hard seals.
The structure can be single eccentric, double eccentric, or triple eccentric.
We provide tailored solutions for engineering and equipment-focused customers. Contact us now for a free valve solution consultation.
COVNA could help you to custom the motor operated butterfly valve for your project, please consultus at sales@covnavalve.com
COVNA- Your Motor Operated Butterfly Valve Manufacturer
HK60D Wafer Type Motor Operated Butterfly Valve
HK60D Wafer Type Motor Operated Butterfly Valve90-degree rotary valve for various applications such as water treatment, HVAC, etc. Available in stainless steel and cast iron material to meet your project's standards. Suitable for a wide range of mediums. Get More Product Details
| Model | HK60D Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type, Explosion-proof Type |
| Size Range | 2" to 72" |
| Pressure | 10bar/16bar |
| Temperature | -10℃ to 180℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Wafer Type |
HK60D-M Lugged Type Motor Operated Butterfly Valve
Available incast iron and stainless steel material for different applications. 4 Versions of seals: NBR, EPDM, VITON and PTFE seals to meet the medium's requirements. ANSI, DIN, JIS, GB standard for choice. Get More Product Details
| Model | HK60D-M Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type, Explosion-proof Type |
| Size Range | 2" to 72" |
| Pressure | 10bar/16bar |
| Temperature | -10℃ to 180℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Lugged Type |

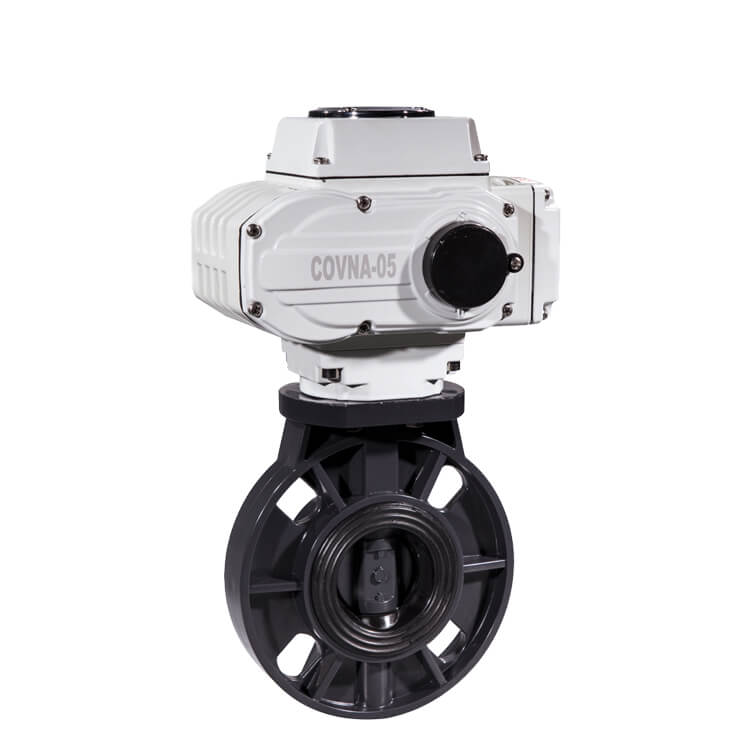

HK60D-P Plastic Motor Operated Butterfly Valve
Lightweight, low cost. Your best choice for an actuation solution. General used for flow control of water, air, gas. High flows, zero leakage. Get More Product Details
| Model | HK60D-P Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type |
| Size Range | 2" to 8" |
| Pressure | 10bar |
| Temperature | -5℃ to 80℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Wafer |
HK60QD-W Food Grade Motor Operated Butterfly Valve
Food safe motor operated butterfly valve with FDA certificates. Well for the food industry, medical industry for on/off control of milk, drink, water, and so on. Get More Product Details
| Model | HK60QD-W Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type, Explosion-proof Type |
| Size Range | 19 to 102mm |
| Pressure | 10bar |
| Temperature | -10℃ to 180℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Tri-clamp |
HK60DF Flanged Motor Operated Butterfly Valve
HK60DF Flanged Motor Operated Butterfly ValveCOVNA flanged motor-operated butterfly valve available in cast iron and stainless steel 304/316/316L material to meet your requirements. Also available in metal seal and soft seal. Offering the best actuation solution for the application which requires flanged connection. Get More Product Details
| Model | HK60DF Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type, Explosion-proof Type |
| Size Range | 2" to 72" |
| Pressure | 10/16bar |
| Temperature | -10℃ to 180℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Flanged |
HK60DF Motor Operated Hard Seat Triple Offset Butterfly Valve
HK60DF Motor Operated Hard Seat Triple Offset Butterfly ValveCOVNA motor operated triple offset butterfly valve with high-pressure range up to 40 bar and high-temperature range up to 450℃. Widely used in high temperature/pressure industries. Get More Product Details
| Model | HK60DG Triple Offset Motor Operated Butterfly Valve |
| Actuator Type | On/Off type, Modulating type, Intelligent Type, Explosion-proof Type |
| Size Range | 2"to 72" |
| Pressure | 10/16/25/40bar |
| Temperature | -10℃ to 450℃ |
| Voltage | DC-12V,24V; AC-24V,110V,220V,380V |
| Connection | Wafer or Flanged |
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA. Torque range from 50Nm to 4,000Nm |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V. Torque range from 50Nm to 4,000Nm |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65/IP67 |
Advantages Of COVNA Motor Operated Butterfly Valve
1. Precise control of flow rates.
2. Rapid response time.
3. Low power consumption.
4. Minimal maintenance requirements.
5. Enhanced durability and resistance to wear and tear.
6. Remote monitoring and control capabilities.
