COVNA Series Motorized Ball Valve
If you are looking for motorized ball valve suppliers, you are in the right place. COVNA, a supplier of motorized ball valve inlcluding 2 way motorized ball valve and 3 way motorized ball valve for various industries. Such as ventilator, solar equipment, HVAC, etc.
Any demand, welcome to inquiry us at sales@covnavalve.com
COVNA Offers All Kinds Of Motorized Ball Valve For Your Choice
What Is Motorized Ball Valve?
Motorized ball valves are valves equipped with motorized valve actuators. Driven by AC/DC power supply and signal feedback, the valve will open or close according to your requirements. This is a device that makes your industry more automated.
Motorized ball valves have the advantages of high degree of automation, high control precision, fast response, and easy maintenance, which can greatly improve work efficiency and reduce manual intervention, while also reducing energy consumption and environmental pollution. Motorized ball valves can also adapt to different working environments and media, and have a wide range of applications.
Types of Motorized Ball Valve
● Connections: According to connection types, we could offer motorized ball valves in flanged, threaded, wafer, double union andtri-clamp types. To meet your different connections and allow your installation easier.
● Materials: According to material types, we could offer a motorized ball valve in stainless steel 304/316L andplastic material for your choice. To meet your different medium requirements.
● Functions: According to functions, we could offer general-purpose type, modulating type, explosion-proof type, spring return type and water-proof type to meet your different requirements.
HK60-Q-3PS Electrically Operated 3-Piece Ball Valve
● Size Range: 1/4in to 4in
● Pressure Range: 10 to 64 bar
● Temperature Range: -10°C to 180°C
● Material Options: Stainless steel 304/316L
● Connection Options: Threaded/ Flanged/ Tri-clamp/ Welded
Features of electrically operated 3-piece ball valve including easy to repair and easy to install. Available in 4 connection types like threaded, flanged, tri-clamp or welded to meet your different pipeline
HK60-Q-2PS-F Flanged Motorized Ball Valve
● Size Range: 1/2in to 8in
● Pressure Range: 10 to 64 bar
● Temperature Range: -10°C to 180°C
● Material Options: Stainless steel 304/316L
● Connection: Flanged
● Other Options: 3-way and 4 way are available
Features of flanged motorized ball valve including has a large size range for choice, available in ANSI, JIS, DIN, GB standard for the various pipeline, easy to install. Offering the best solution for the pipeline which requires flanged connection.
HK60-Q-P Electric Actuated UPVC Ball Valve
● Size Range: 1/2in to 4in
● Pressure Range: 10 /16 bar
● Temperature Range: -10°C to 80°C
● Material Options: UPVC/CPVC/PPH/PVDF
● Connection Options: Flanged
● Other Options: 3-way ball valve is available
Features of electric actuated UPVC ball valve including lightweight, anti-corrosive andanti-rust.Meanwhile, it has the lowest cost than a stainless steel ball valve. Offering the cost-effective valve solution foryou.
HK60-Q-W Food Grade Electric Actuator Ball Valve
HK60-Q-W Food Grade Electric Actuator Ball Valve● Size Range: 19mm to 102mm
● Pressure Range: 10 /16 bar
● Temperature Range: -10°C to 180°C
● Material Options: Stainless steel 304/316L
● Connection Options: Tri-clamp(Food safe)
● Other Options: 3-way ball valve is available
Features of food grade electric actuator ball valve including polishing and disinfection inside and outside which well for food. The tri-clamp connection can prevent food from accumulating, thereby preventing food from being contaminated.
HK60-Q-T Motorized 3-Way Ball Valve
● Size Range: 1/2in to 3in
● Pressure Range: 10 to 64 bar
● Temperature Range: -10°C to 180°C
● Material Options: Stainless steel 304/316L
● Connection Options: Threaded
3-way motorized ball valve available in T type and L type for your choice. Offering the best diverter solution for you.
HK60-Q-B Electric Wafer Ball Valve
HK60-Q-B Electric Wafer Ball Valve● Size Range: 1/2in to 4in
● Pressure Range: 10 to 64bar
● Temperature Range: -10°C to 300°C
● Material Options: Stainless steel 304/316L
● Connection Options: Wafer
HK60-Q-G High-Pressure Electrically Operated Ball Valve
HK60-Q-G High-Pressure Electrically Operated Ball Valve● Size Range: 1/4in to 2in
● Max. Pressure: 400 bar
● Temperature Range: -10°C to 180°C
● Material Options: Stainless steel 304/316L
● Connection Options: Threaded
Types Of Motorized Ball Valve Actuator
● ON/OFF Type 90 Degrees Motorized Ball Valve Actuator: Quarter turn rotary actuator for ball valve and butterfly valve. AC/DC power supply and manual override are available.
● Modulating Type Part-Turn Motorized Ball Valve Actuator: With an adjustable switch angle from 0 degrees to 90 degrees. AC/DC power supply, signal control(4-20mA, 1-5V, 0-10VDC) and manual override.
● Intelligent Type Quarter-Turn Motorized Ball Valve Actuator: With an adjustable switch angle and a display screen to let your check situation easier. AC/DC power supply, signal control(4-20mA, 1-5V, 0-10VDC) and manual override.
● Explosion-proof Motorized Ball Valve Actuator: Exd II CT4. Suitable for oil and gas industries, power plants and so on.
Other COVNA Electric Actuator Options:
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
Why Choose COVNA Motorized Ball Valve
COVNA is a leader manufacturer of motorized valves and we have our own production base to manufacture common valves and custom valves basic on our client requirements. Not only valve we offer, but we also provide:
● 3D Drawing to help you to design the system
● Online technical support and selection guide
● 1-year warranty for all products

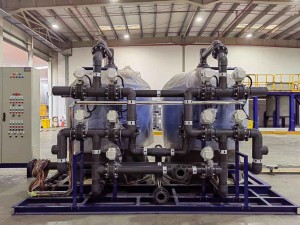

Engineering Case
COVNA is committed to serving all kinds of pipeline flow regulation, whether it is from water treatment equipment, irrigation, oil and gas, food and beverage processing and swimming pool pipeline design, etc., we have plenty of case experience to make your project go smoothly.
