Pneumatic Butterfly Valve
Pneumatic Actuated Butterfly Valve Manufacturer In China
FOR PROJECT DESIGNER OR CONTRACTOR
● Wide range of actuated butterfly valves for all your valve needs
● Competitive pricing to help you win projects
● Ample valve stock for fast delivery and project commencement
● Custom valve services to meet your specific project requirements
FOR DISTRIBUTORS
● Comprehensive market analysis and insights for effective sales and market expansion.
● Competitive pricing to maximize profitability and gain a competitive edge.
● Ample stock availability and efficient shipping solutions for streamlined inventory management.
● Product training and support to enhance knowledge and provide excellent customer service.
● Dedicated account management and personalized assistance for a successful partnership.
COVNA Pneumatic Actuated Butterfly Valve Range For Your Choice

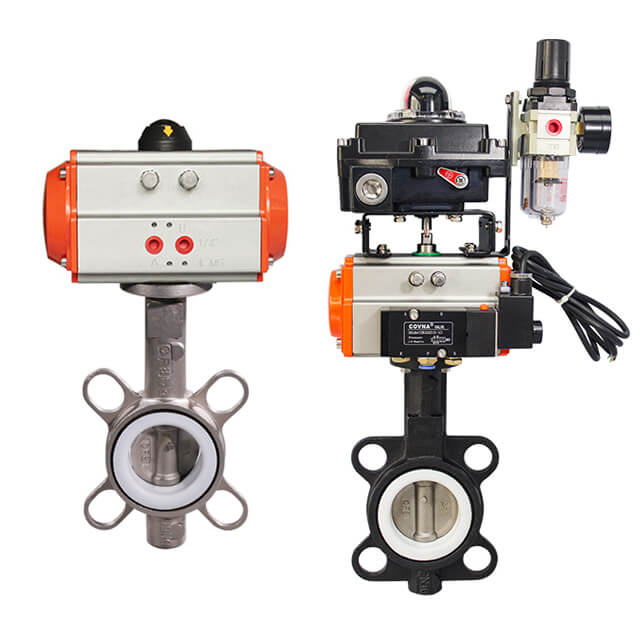

HK59-D Wafer Pneumatic Butterfly Valve
Wafer butterfly valve with pneumatic actuator including cast iron and stainless steel body material for choice. SS 304 disc or SS 316 disc available. EPDM seal, VITON seal and PTFE seal options. High torque, large size range. Suitable for water, oil, air, steam, gas control.
Get A Better Quote Now Download Datasheet
| Model | HK59-D |
| Actuator Type Options | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 2" to 24" |
| Pressure | 10bar |
| Temperature | -10℃ to 180℃ (14°F to 356°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Wafer Type |
| Pneumatic Accessories | Positioner, Limit Switch, Gear Box, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | Cast iron or Stainless steel 304/316/316L |
| Sealing Material Options | EPDM, PTFE |

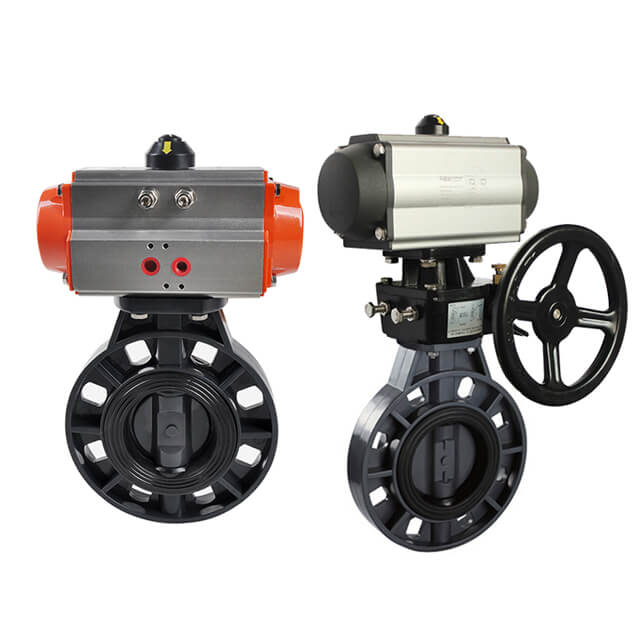

HK59D-P Plastic Pneumatic Butterfly Valve
PVC Pneumatic butterfly valve available in 2", 2.5", 3", 4", 5", 6", 8", 10", 12", 14", 16" and other size for choice. Features include low cost, anti-corrosive, low weight, high torque. Suitable for flow control such as water control, gas control, air control. 90-degree rotary valve.
Get A Better Quote Now Download Datasheet
| Model | HK59D-P |
| Actuator TypeOptions | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 2" to 16" |
| Pressure | 10bar |
| Temperature | -5℃ to 80℃ (23°F to 176°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Wafer Type |
| Pneumatic Accessories | Positioner, Limit Switch, Gear Box, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | CPVC, UPVC, PPH, PVDF |
| Sealing Material Options | EPDM, PTFE |

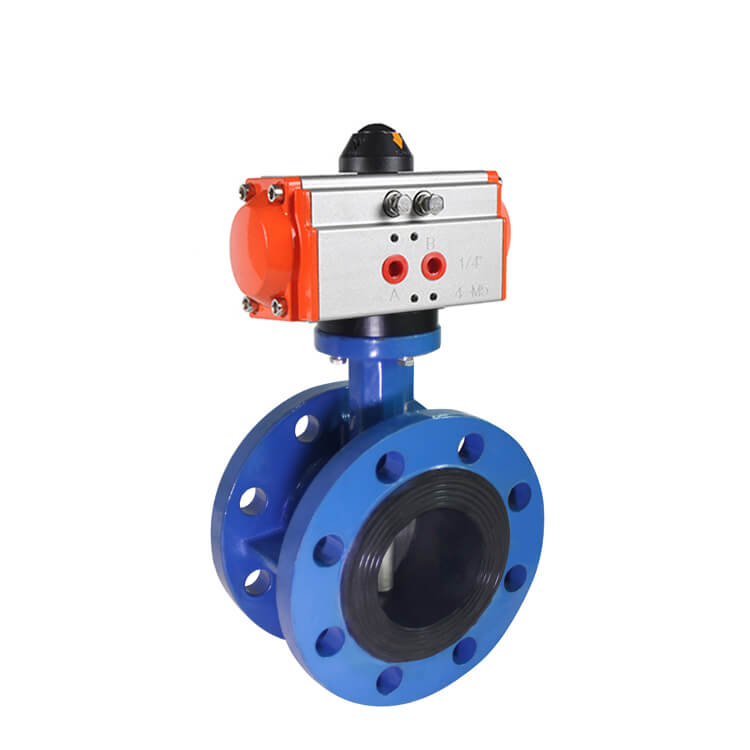

HK59-D-F FlangePneumatic Butterfly Valve
Manufacturing flange pneumatic butterfly valve in cast iron and stainless steel material for HVAC, vent stacks and other applications. Easy to install, large flow rate. Available in ANSI, JIS, DIN, GB standard to meet your needs.
What's more, we also have stainless steel material for your choice.
Get A Better Quote Now Download Datasheet
| Model | HK59-D-F |
| Actuator TypeOptions | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 2" to 24'' |
| Pressure | 10bar/16bar |
| Temperature | -10℃ to 180℃ (14°F to 356°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Flanged |
| Pneumatic Accessories | Positioner, Limit Switch, Gear Box, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | Cast iron or Stainless steel 304/316/316L |
| Sealing Material Options | EPDM, PTFE |

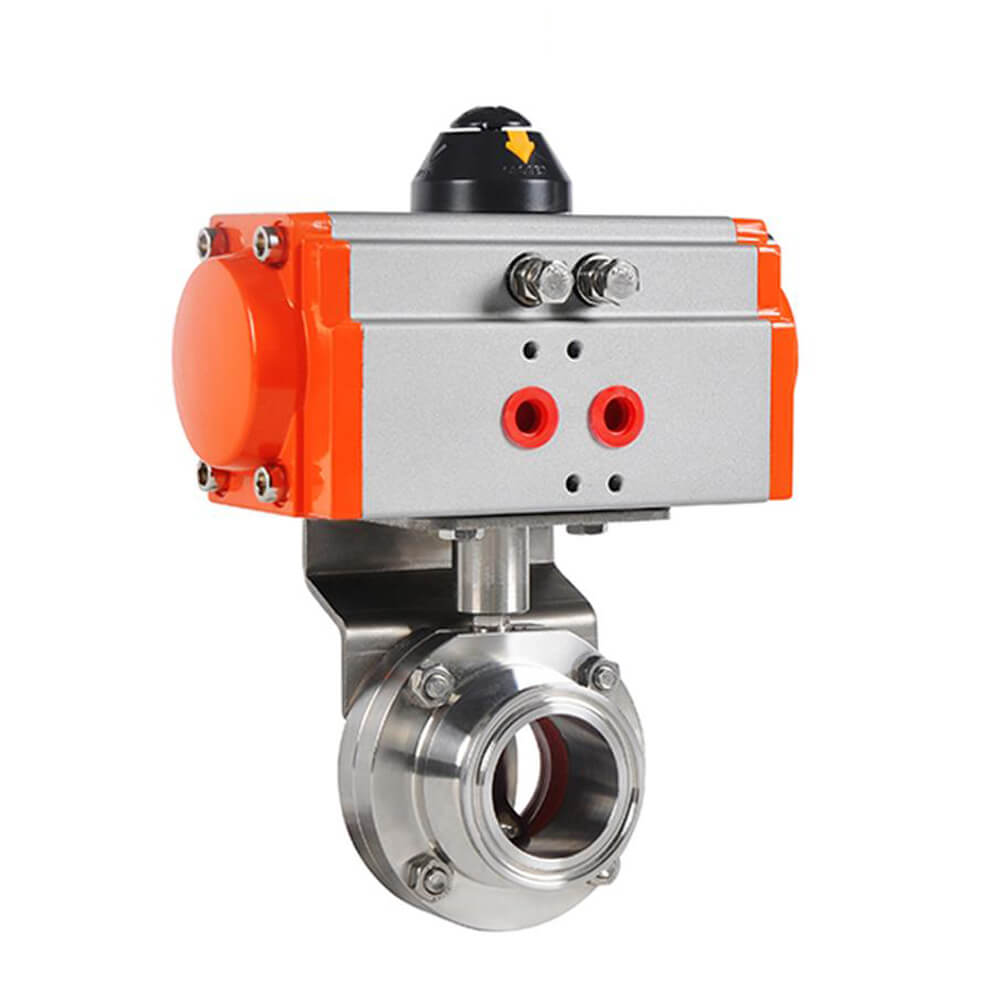

HK59-D-W Food Safe Pneumatic Butterfly Valve
Stainless steel sanitary pneumatic butterfly valve for food & beverage, medical and other application for water, milk, drink control. Stainless steel 304 and stainless steel 316 are available. Tri-clamp connection. Single acting and double acting pneumatic actuator for choice.
Get A Better Quote Now Download Datasheet
| Model | HK59-D-W |
| Actuator TypeOptions | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 19/25/32/38/45/51/57/63/76/89/101mm |
| Pressure | 10bar |
| Temperature | -10℃ to 180℃ (14°F to 356°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Tri-Clamp Type |
| Pneumatic Accessories | Positioner, Limit Switch, Gear Box, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | Stainless steel 304/316/316L |
| Sealing Material Options | PTFE, PPL |

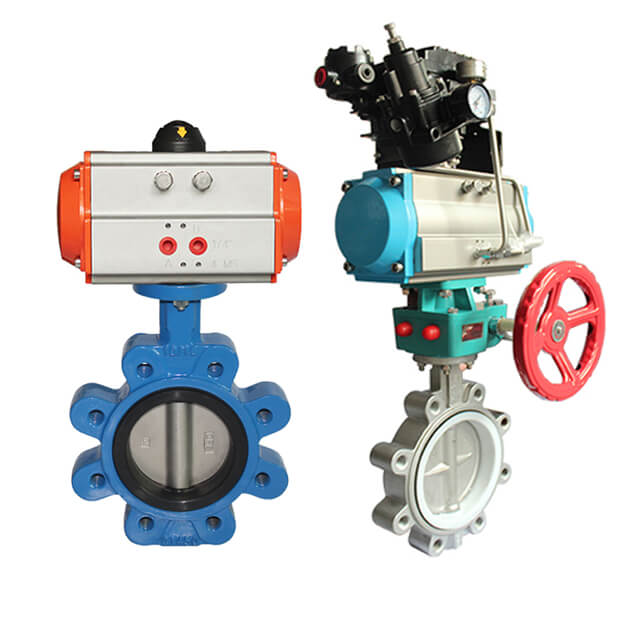

HK59D-M Lugged Pneumatic Butterfly Valve
A lugged pneumatic butterfly valve is available in cast iron and stainless steel material and available in ANSI, GB, JB standard. 2.5 bar to 8 bar air supply pressure. Pressure range from 0-16bar(0psi to 232psi). 2" to 24" lugged butterfly valve with rack and pinion pneumatic actuator. Available in stainless steel and cast iron material.
Get A Better Quote Now Download Datasheet
| Model | HK59D-M |
| Actuator TypeOptions | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 2" to 24" |
| Pressure | 10bar/16bar |
| Temperature | -10℃ to 180℃ (14°F to 356°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Lugged Type |
| Pneumatic Accessories | Positioner, Limit Switch, Gearbox, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | Cast iron or Stainless steel 304/316/316L |
| Sealing Material Options | EPDM, PTFE |

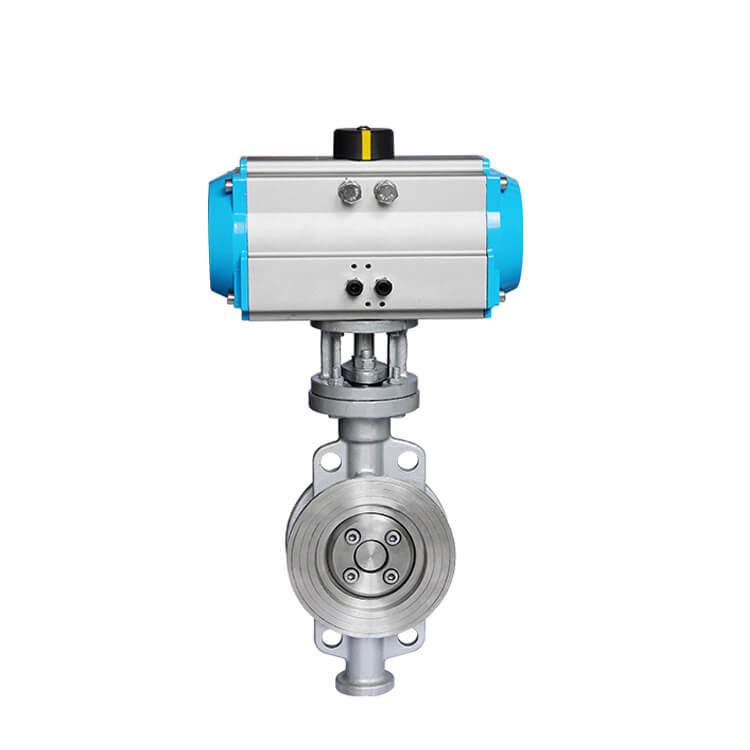

HK59-D-G Pneumatic Hard Seated Butterfly Valve
COVNA pneumatic hard seated butterfly valve adopts metal as the sealing. With a high-pressure range from 0 bar to 40 bar and a high-temperature range from 14°F to 752°F. Widely used in power plants, steam plants, and other applications.
Get A Better Quote Now Download Datasheet
| Model | HK59-D-G |
| Actuator TypeOptions | Spring Return Actuator (Single Acting) or Double Acting Actuator |
| Size Range | 2", 2.5", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24" |
| Max. Pressure | 40bar |
| Temperature | -10℃ to 400℃ (14°F to 752°F) |
| Air Supply Pressure | 2.5bar to 8bar |
| Connection | Flanged or Wafer |
| Pneumatic Accessories | Positioner, Limit Switch, Gear Box, F.R.L, Pneumatic Solenoid Valve |
| Valve Material Options | Stainless steel 304/316/316L |
| Sealing Material Options | Stainless steel 304/316/316L |
COVNA Pneumatic Actuator Series
We provide rack and pinion pneumatic actuators with ISO5211 mounting for ball and butterfly valves for your any applications
● Single Acting Pneumatic Valve Actuator(Spring Return Pneumatic Valve Actuator): Air to open and air interrupt to close. Easy to install and change the number of springs to ensure the output torque. Safe for various applications. ISO5211 direct mounting for ball and butterfly valve to use in various applications. Torque range from 5.7Nm to 2792Nm.
● Double Acting Pneumatic Valve Actuator: Air to open and air to close. With features of responsive and eco-friendly. ISO5211 direct mounting for ball valve and butterfly valve for various applications. Torque range from 8Nm to 4678Nm
We also have the AW series pneumatic actuators and scotch yoke pneumatic actuators for the large size butterfly valve which have a higher torque need. Torque range up to 15,7300Nm
COVNA Pneumatic Accessories For Your Choice
As a one-stop valve solution provider, we provide a positioner, limit switch, gearbox, F.R.L, pneumatic solenoid valve for you to help your automation easier.
Advantages Of COVNA Pneumatic Butterfly Valve
1. 1 million lifetime
2. High torque up to 4600Nm. Quickstart/close
3. High-quality spring keep safe when air supply interrupt
5. Lightweight, low cost
6. 100% inspection before shipping like torque test, air supply pressure test
7. Large stock, fast delivery time
8. Production processing under ISO9001:2015 quality system
9. CE, ISO, FDA certificates
10. Selection guide and technical support to help you use the valve well
Working Principle of Pneumatic Actuator Valve
Pneumatic actuator valves are valves that are driven by compressed air. By using the compressed air to drive the combined pneumatic piston in the actuator, the force is transferred to the cross beam and the inner curve track, which drives the hollow core spindle to rotate, and the compressed air is transported to each cylinder change the position of air inlet and outlet to change the spindle rotation direction, according to the valve required to rotate torque requirements, the number of cylinder combinations can be adjusted to drive the valve work. Pneumatic Valve can be used to control the air, water, steam, a variety of corrosive media, mud, oil, liquid metal and radioactive media, and other types of fluid flow.
