HK1071 Stainless Steel Ball Valve

Short Description:

HK1071 Stainless Steel Ball Valve

suitable for water, air, oil, etc. Stainless steel 304 and 316 are available. 2 type thread for choice: G and NPT. Available in male and female thread. ISO5211 mounting for electric actuator and pneumatic actuator. Full port, lockable handle. Offering stainless steel ball valve for various applications like shipyard, water treatment, irrigations, food and beverage, etc. Consult us to select the suitable valve!

Model

Valve Body Material: Stainless Steel 304 or 316
Core Material: Stainless Steel
Pressure: 10bar, 16bar, 25bar, 40bar, 64bar (145psi, 232psi, 362psi, 580psi, 928psi)
Temperature: -10℃ to 180℃ (14℉ to 356℉)
Suitable Medium: Water, Oil, Gas, Air, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Features Of Stainless Steel 2pc Ball Valve:

● Stainless steel material offers a no-rust solution for your project

● Available in stainless steel 304 or 316 material for your choice

● Available in G and NPT threaded to meet your pipeline standard

● Easy to install and easy to open/close

● Lockable is available

● ISO5211 mounting for electric actuator and pneumatic actuator

Technical Parameters Of 2-Piece Ball Valve:

● Size Range: DN8 to DN80 (1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3")

● Material: Stainless Steel 304 or Stainless Steel 316

● General Pressure: PN16/25/40/64

● Temperature: -10 to 180℃ (-10°F to 356°F)

● Suitable Medium: Water, Oil, Gas, etc

● Widely used in water treatment, shipyard, boiler, food and beverage, oil and gas industry and other applications

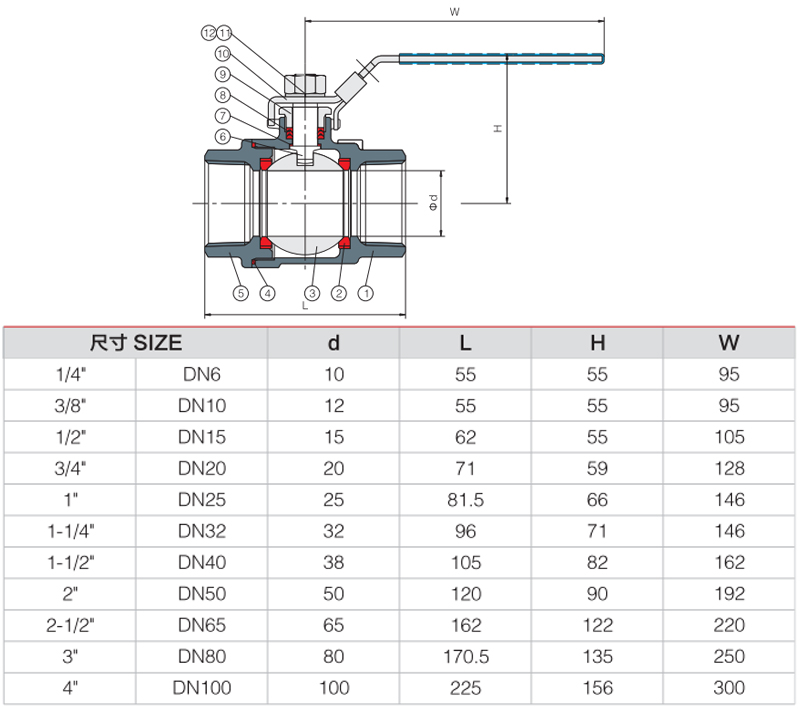

Material List:

No.	Parts	Material
1	Valve Body	WCB	CF8	CF8M
2	Seat	PTFE
3	Ball	CF8	CF8M
4	Gasket	PTFE
5	Bonnet	WCB	CF8	CF8M
6	Stem	304	316
7	Stem Washer	PTFE
8	Packing	PTFE
9	Gland	304
10	Handle	304+PVC
11	Spring Washer	304
12	Nut	304
