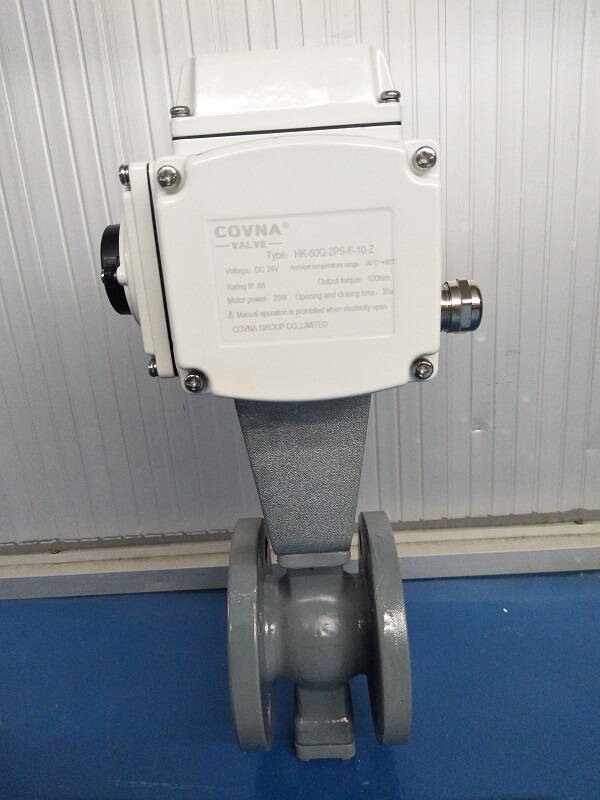

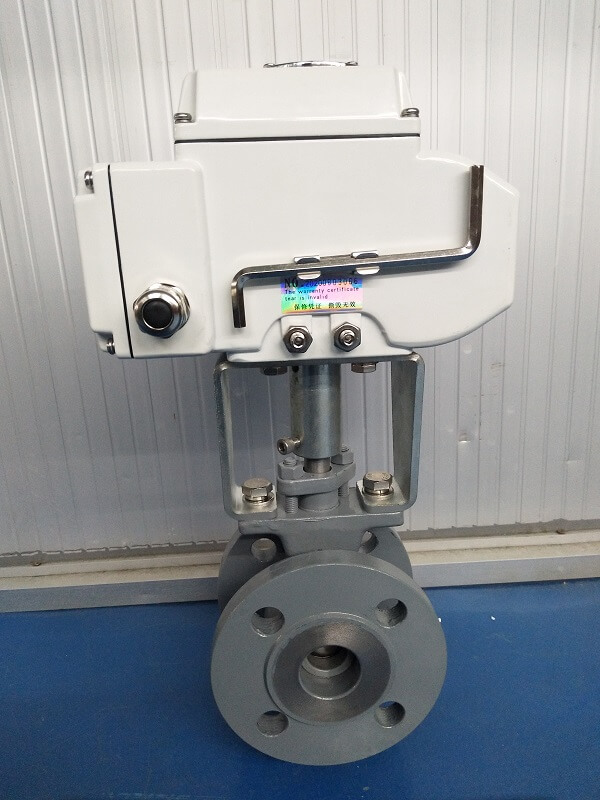

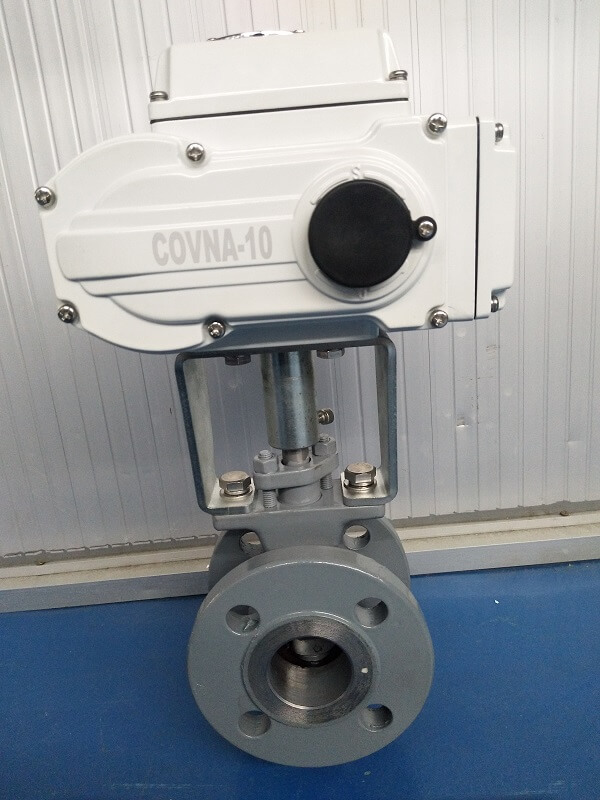

HK60-Q-V Electric Segmented V-Port Ball Valve

Short Description:

Manufacturing

Electric Segmented V-Port Ball Valve

in 30%, 60%, 90% ball valve types for your choice. V-port ball valve has an excellent flow control performance to help to control the flow for your projects. It has two functions of adjustment and cut-off. The sealing ring has two types of soft seal and metal seal to meet the requirements of different applications. Simple flow path, large flow capacity and adjustable ratio up to 100.
Widely used in high temperature and high-pressure industries like paper and pulp, food and beverage, wastewater treatment, etc. Suitable for wastewater, steam, pulp, fiber, and so on.
Any demand for V-port ball valve, feel free to consult us!

Model

Actuator Type: On-Off Type, Modulating Type
Body Material: Stainless Steel 304/316/316L
Pressure: 145 psi to 1450 psi
Temperature Of Media: -10 to 180℃ (14℉ to 356℉)
Suitable Media: Water, Air, Oil, Gas, Pulp, Steam, etc
Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
Connection Type: Flanged

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits of Electric Segmented V-Port Ball Valves:

COVNA Electric Segmented V-Port Ball Valve gives you the solution to precisely regulate flow. COVNA diversifies production to meet the different needs of different application fields. The V-port ball valve is a suitable valve for flow regulation. Its advantage is that V-ports of different angles can be customized according to your needs to meet your flow regulation needs.

Furthermore, the electric actuator can receive or feedback signals, and realize remote control by signal control or Bluetooth control. Helps you control the valve more easily.

Features Of HK60-Q-V Electric Segmented V-Port Ball Valve:

● A V-port ball valve has an excellent flow control performance for various industries

● Available in stainless steel 304/316/316L material

● Offering 3 types for your choice: 30%, 60%, 90% to allow your flow control easier

● The modulating valve actuator is available. This actuator could help your automation easier

● Available in normally open type or normally closed type

● Widely used in paper and pulp, food and beverage, wastewater treatment, shipyard, etc

Technical Parameters Of HK60-Q-V Electric Segmented V-Port Ball Valve:

Medium	Air, water, steam, oil, liquid, pulp, etc	End Connection	Flanged
Port size range	DN15 to DN300	Core Material	Stainless Steel 304/316/316L
Body Material	Stainless Steel 304/316/316L	Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V
Structure	V-Port Ball Valve	Voltage Tolerance	±10%
Temperature Of Media	-10 to 180℃ (14℉ to 356℉)	Working Pressure Range	145 psi to 1450 psi

Technical Parameters Of COVNA Quarter Turn Electric Actuators:

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field Operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
Voltage optional	AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized
Protection Class	IP65
Torque Range	50 to 160 Nm

Model	5	10	16	30	60	125	250	400
Torque Output	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
90°Cycle Time	20s/60s	15s/30s/60s			30s/60s	100s	100s	100s
Angle of Rotation	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Working Current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting Current	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Drive Motor	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Product Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Voltage Option	AC 110V, AC 220V, AC 380V, DC 12V, DC 24V
Insulation Resistance	DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute
Protection Class	IP65
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire
Ambient Temp.	-30℃to 60℃
Control Circuit	A: ON/OFF type with light indicator signal feedback
	B: ON/OFF type with passive contact signal feedback
	C: ON/OFF type with resistance potentiometer signal feedback
	D: ON/OFF type with resistance potentiometer and neutral position signal feedback
	E: Regulation type with a servo control module
	F: DC24V/DC12V direct ON/OFF type
	G: AC380V three-phase power supply with passive signal feedback
	H: AC380V three-phase power supply with resistance potentiometer signal feedback
Optional Function	Over Torque protectors, dehumidify heater, stainless steel coupling & yoke

Other COVNA Electric Actuator Options:

● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm

● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm

● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
