HK60-EX-F Series Explosion Proof Electric Ball Valve

Short Description:

Manufacturer of Explosion Proof Electric Ball Valve.
COVNA explosion-proof electric ball valve is your safe and reliable choice. Electric actuators are certified to meet explosion-proof standards in the US, EU, and China, making them suitable for environments where flammable gases are present. COVNA explosion-proof electric ball valve can be automated to minimize labor costs and environmental risks.

We use various international standard flanges to connect the pipeline, making the valve actuator easy to install. COVNA explosion-proof actuator features remote control, visual valve position indication, manual operation, IP68 rating, ensuring the safety and production efficiency of your workplace.

COVNA explosion-proof electric ball valve is your best choice, whether you need a single valve device or the design and installation of the entire valve system. We can provide you with comprehensive services and support.

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Explosion-proof Electric Ball Valves:

Explosion-proof electric ball valve has the advantages of good explosion-proof performance, high precision, corrosion resistance and intelligence. It is a control device suitable for flammable and explosive environments and strict control requirements.

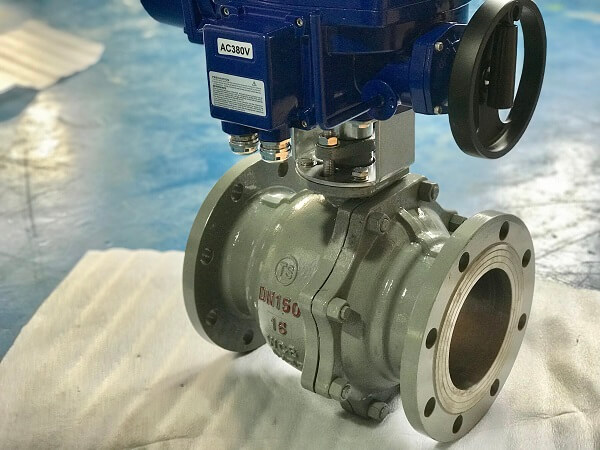

covna-explosion-proof-electric-ball-valves

The explosion-proof electric ball valve is able to achieve the explosion-proof effect by adopting special structural design and materials to suppress the generation of sparks and the spread of flames.

1. Protective housing: The explosion-proof electric ball valve outer casing is made of fireproof and explosion-proof materials, which can withstand external explosion shock waves and high temperatures.

2. Explosion-proof motor: The explosion-proof electric ball valve uses a specially designed explosion-proof motor, which can operate normally in flammable and explosive environments without producing electric sparks.

3. Explosion-proof control manufacturing: The electrical control system of the explosion-proof electric ball valve also needs to be manufactured in an explosion-proof manner, using explosion-proof components and cables different from ordinary equipment, to ensure that any part of the circuit does not produce sparks or arcs.

4. High-standard testing: The explosion-proof electric ball valve needs to undergo a series of strict tests, such as explosion-proof performance testing, temperature testing, electrical performance testing, etc., to ensure that it can work safely and reliably in real explosion environments.

Technical Parameters Of HK60-EX-F Explosion Proof Electric Ball Valve:

Medium	Oil, gas, fuel, etc	Port size Range	DN15 to DN400
Temperature Of Media	-40℃ to 80℃ (-40℉ to 176℉) (PTFE/PPL Sealing)-40℃ to 350℃ (-40℉ to 662℉) (Metal Sealing)	Actuator Type	Explosion Proof Electric Actuator Type
Working Pressure	10 / 16 / 20 / 64 bar (145 / 232 / 290 / 928 psi)	Body Material	Stainless Steel / WCB
Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V	Structure	Flanged ball valve
Voltage Tolerance	±10%	End Connection	Flanged (ANSI, JIS, DIN, GB)
