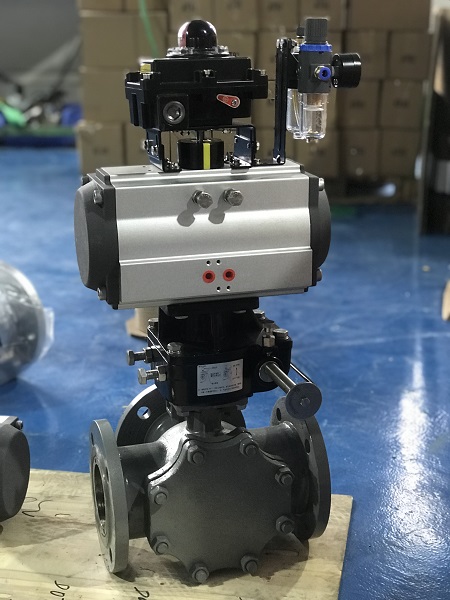

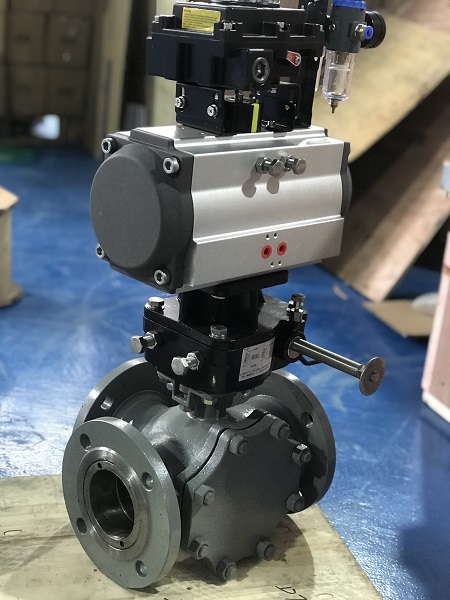

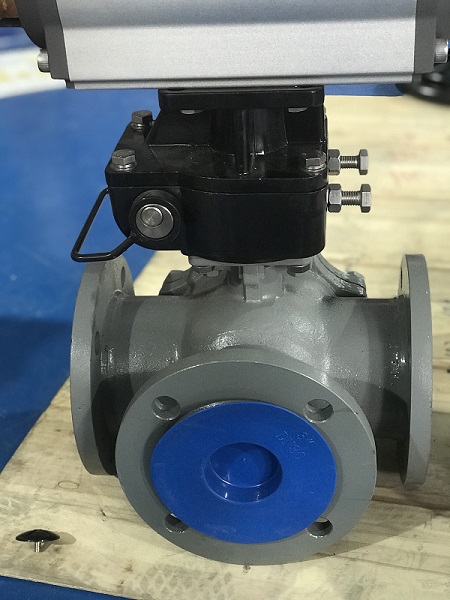

HK55-TF Flanged 3 Way Pneumatic Actuated Ball Valve
Benefits Of Pneumatic 3-Way Flanged Ball Valves:
COVNA Pneumatic 3-Way Flanged Ball Valves provide you with a reliable fluid control solution. The three-way flanged ball valve has T port and L port for you to choose from, to meet your needs for on-off and changing the flow direction of the medium. The connection standard can be customized as ANSI standard, JIS standard, DIN standard or GB standard according to your needs.
Paired with pneumatic actuators, it can be controlled remotely easily and help you increase productivity. Provide you with value for money solutions.
Features Of HK55-TF Flanged 3 Way Pneumatic Actuated Ball Valve:
● Available in ANSI, JIS, DIN, GB standards for you
● Rack and pinion pneumatic actuator with long cycle time up to 1 million time
● Available in single-acting and double-acting pneumatic valve actuator
● Responsive and easy to install
● Good diverter performance for your project
Technical Parameters of HK55-TF Flanged 3 Way Pneumatic Actuated Ball Valve:
| Actuator Type | Spring Return / Double Acting | Structure | T port / L port |
| Working Pressure | 10 / 16 bar (145 / 232 psi) | Body Material | Stainless Steel 304/316/316L |
| Size Range | DN15 to DN200 | Temperature Of Media | -10 to 180℃(14℉ to 356℉) |
| Connection | Flanged | Suitable Media | Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc |
| Connection Standard | ANSI, JIS, DIN, GB | Seal Material | PTFE |
3 Way Ball Valve Flow Diagram:
Dimension of COVNA Flanged 3 Way Pneumatic Actuated Ball Valve:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 bar to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit switch, Gearbox, F.R.L, and Pneumatic solenoid valve |
COVNA AW Series Pneumatic Actuator:
AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
