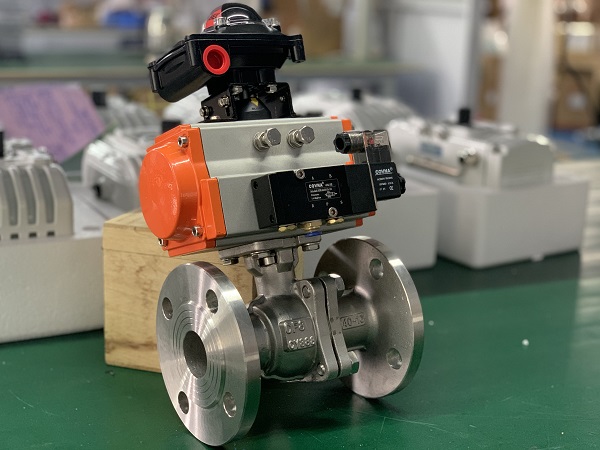

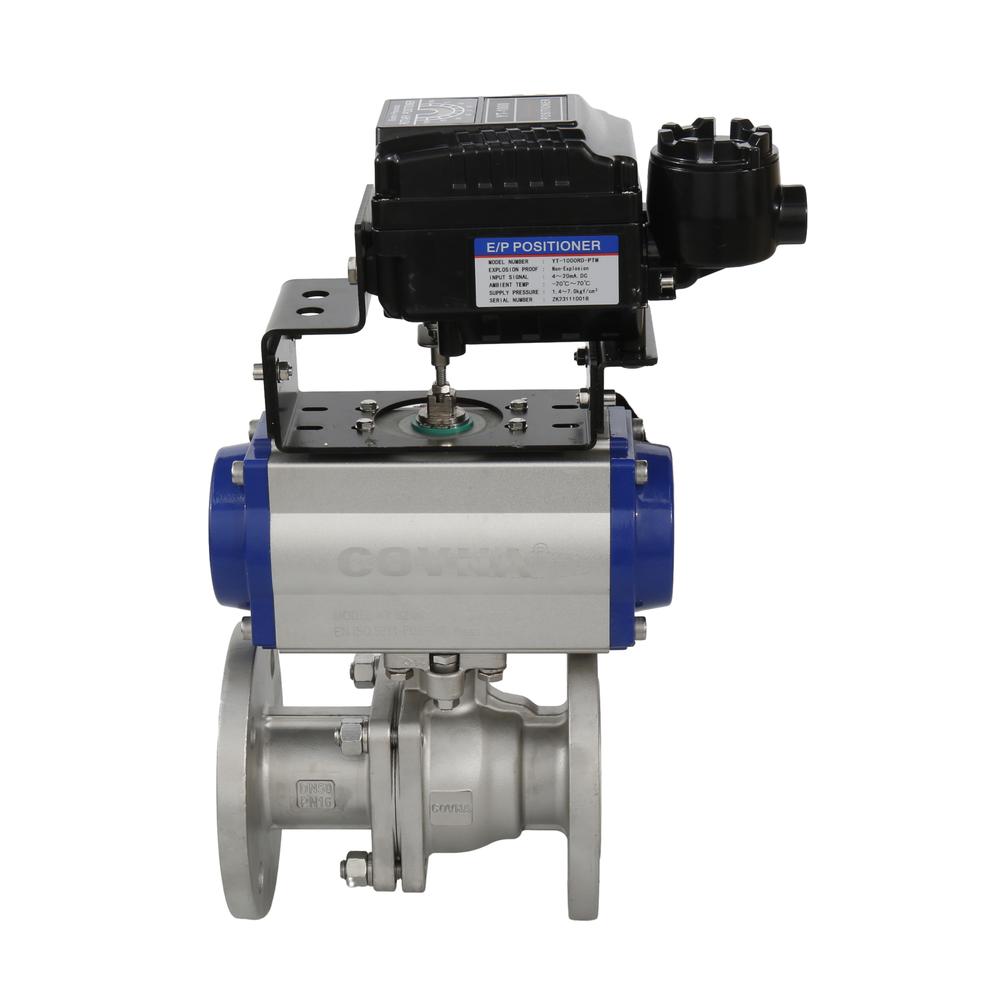

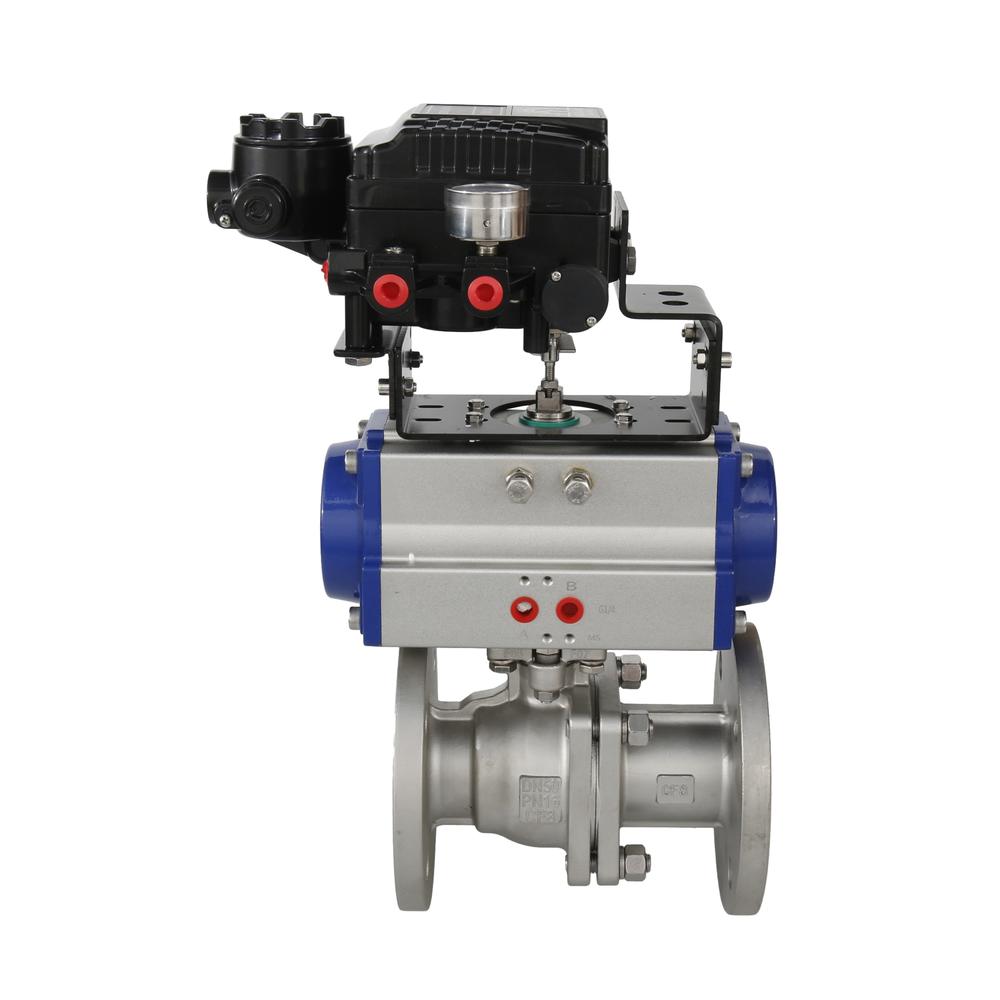

HK55-F Flanged Pneumatic Actuated Ball Valve
Benefits Of Pneumatic Flanged Ball Valves:
COVNA Pneumatic Flanged Ball Valves provide you with flexible and reliable fluid solutions. Flanged ball valve has the advantages of easy installation, easy maintenance, full diameter and large flow. Can be customized to ANSI standard, JIS standard, GB standard or DIN standard according to your piping needs.
The advantages of pneumatic actuators are explosion-proof, safety, fast response and low cost. Furthermore, it can be used with pneumatic accessories to realize remote control and help you improve production efficiency.
Features Of HK55-F Flanged Pneumatic Actuated Ball Valve:
● Available in single-acting and double-acting pneumatic actuator types for your choice
● Easy to install and change the number of springs to ensure the output torque
●1 million lifespans, responsive and safe
● Available in ANSI, JIS, DIN, GB standard
Technical Parameters Of HK55-F Flanged Pneumatic Actuated Ball Valve:
| Actuator Type | Spring Return / Double Acting | Size Range | DN15 to DN200 |
| Connection | Flanged (ANSI, JIS, DIN, GB) | Structure Type | Floating Ball Core |
| Medium | Air, water, steam, oil, gas, fuel, etc | Working Pressure | 1.0 / 1.6 / 2.5 / 4.0 / 6.4MPa(10 / 16 / 25 / 40 / 64 bar) |
| Body Material | Stainless Steel 304/316/316L | Temperature Of Media | -10 to 180℃(14℉ to 356℉) |
| Applications | Wastewater treatment, power plant, paper and pulp, packing industry, etc | Seal Material | PTFE / PPL |
Dimension Of HK55-F Flanged Pneumatic Actuated Ball Valve:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close.Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
COVNA AW Series Pneumatic Actuator:
We also provide AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring return type(single-acting type): Torque range from 270Nm to 37,000Nm
