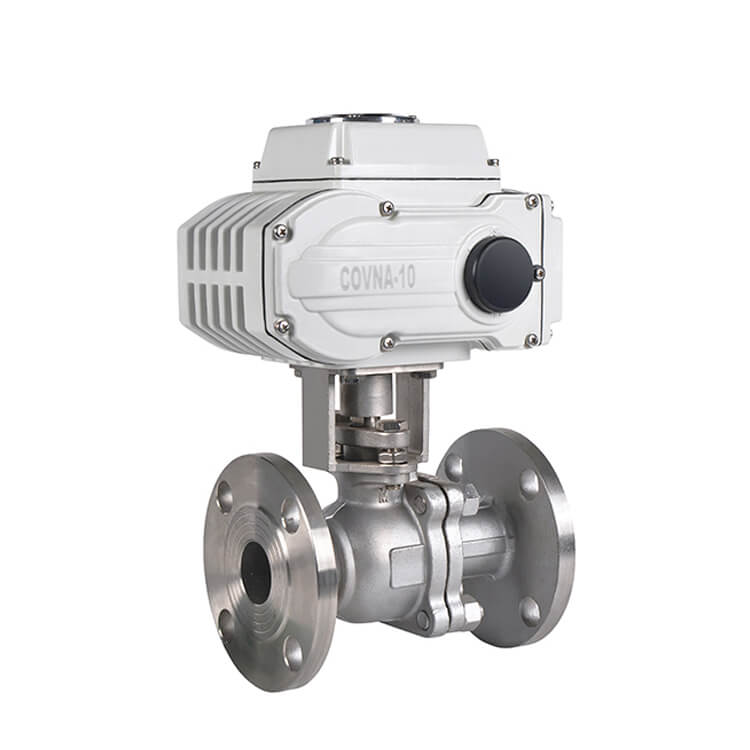

HK60-Q-F Flanged Electric Actuated Ball Valve
Benefits Of Electric Flanged Ball Valves:
COVNA Electric Flanged Ball Valves provide you with a reliable fluid control solution. It can be customized to ANSI standard, JIS standard, DIN standard or GB standard according to your piping requirements to perfectly match your connection requirements. The float ball type can be used for general pressure pipelines. The trunnion mounted type can be used for high-pressure pipelines.
More importantly, flanged ball valves can be made into 2-way, 3-way or 4-way styles to meet your purpose of circulating, blocking and changing the flow direction of the medium.
Flanged ball valves are paired with electric actuators for easier remote control while helping your project improve productivity.
COVNA also manufactures Flanged Electric Actuated Ball Valve with Bracket which could withstand high temperature up to 842℉. And the bracket could keep the actuator far from the mediums to keep it safe. Widely used in high-temperature industries like paper and pulp, chemical industry, and so on.
Features Of HK60-Q-F 2 Way Flanged Electric Actuated Ball Valve:
● Flanged connection with features of large size range for choice and easy to install
● Available in ANSI, JIS, DIN, GB standards to meet your pipeline requirement
● Available in stainless steel 304/316/316L material for your project
● Long working time and long lifespan up to 700,000 lifespans
● Multi control methods: AC/DC power supply, signal control and manual override
● Widely used in paper and pulp, power plant, wastewater treatment, shipyard, food and beverage, etc
● Available in high-temperature types which could withstand the high-temperature mediums
● Available in normally closed type or normally open type
● Also available in 3 way and 4 way for your choice
Technical Parameters Of HK60-Q-F 2 Way Flanged Electric Actuated Ball Valve
| Size Range | DN15 to DN200 | End Connection | Flange (ANSI, JIS, DIN, GB) |
| Body Material | Stainless Steel 304/316/316L | Working Pressure | 10bar, 16bar, 20bar, 40bar, 64bar, Class 150, Class 300 |
| Temperature Of Media | Normal Type: -22℉ to 356℉
High-Temperature Type:-22℉ to 842℉ |
Suitable Media | Water, Air, Oil, Gas, Steam, Pulp, etc |
| Structure | Floating Ball Valve | Voltage | DC-12V, 24VAC-24V, 110V, 220V, 380V |
| Actuator Type | ON OFF Type, Modulating Type or Intelligent Type | Voltage Tolerance | ±10% |
Dimension of HK60-Q-F 2 Way Flanged Electric Actuated Ball Valve:
Technical Parameter Of Quarter-Turn Motorized Valve Actuator:
● On/off type electric actuator: For only 90 degrees rotation open and close
● Regulation type electric actuator: For regulating switch angle of valve from 0 to 90 degrees by signal or Bluetooth
● Intelligent type electric valve actuator: For regulating switch angle with an LCD display screen
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Series | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90° Cycle Time | 20S | 15/30S | 15/30S | 15/30S | 30S | 100S | 100S | 100S |
| Angle Of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.23A | 0.35A | 0.4A | 0.45A | 0.6A | 1.03A | 1.85A | 2.7A |
| Drive Motor | 50W | 75W | 80W | 100W | 130W | 210W | 285W | 360W |
| Mounting Standard | ISO5211 direct mounting | |||||||
| Voltage Options | DC12V, DC24V, AC24V, AC110V, AC220V, AC380V | |||||||
| Input Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Output Signal | 4-20mA, 1-5VDC, 0-10VDC | |||||||
| Protection Class | IP65 protection class | |||||||
| Ambient Temp | -20 to +60°C | |||||||
| Wiring Diagram | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24/DC12V direct ON/OFF type | ||||||||
| G: AC380V 3-phase power supply with passive signal feedback | ||||||||
| H: AC380V 3-phase power supply with resistance potentiometer and neutral position signal feedback | ||||||||
Other COVNA Electric Actuator Options:
As an actuator and valve manufacturer, COVNA also offers IP68 waterproof electric valve actuator, explosion-proof electric actuator and auto return electric actuator for large-size valves for you
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable for use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
