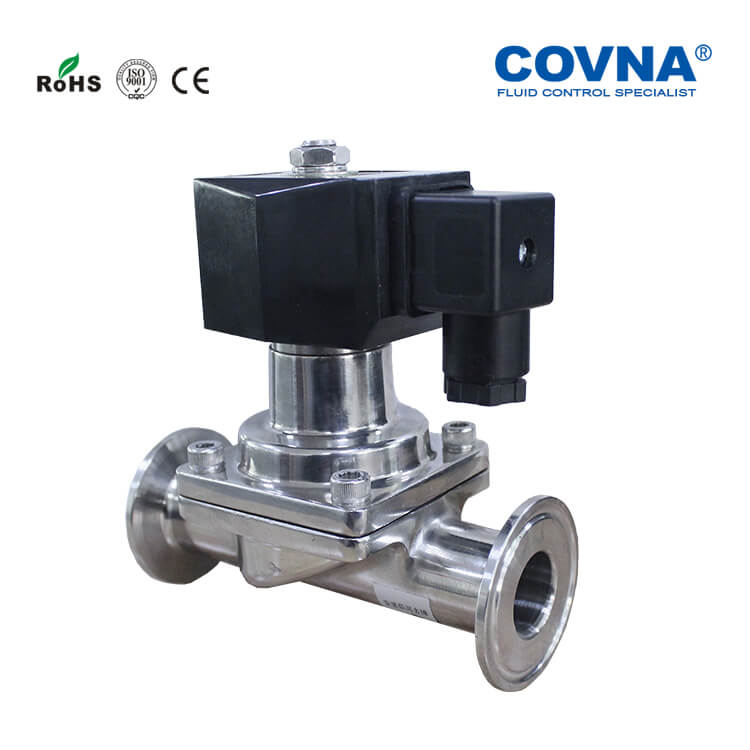

HK0018 Tri Clamp Food Grade Sanitary Electric Solenoid Valve

Short Description:

HK0018 Tri Clamp Food Grade Sanitary Electric Solenoid Valve

HK0018 Tri Clamp food-grade sanitary electromagnetic valve is an excellent valve suitable for industries such as food processing and beverage manufacturing. It is made of 316L stainless steel material, which has high strength, corrosion resistance, and can control fluid through electric means. In addition, its clamp connection method makes it easy to install and disassemble, while also having features such as fast response, high precision, and long life.

Available in 12V DC, 24V DC, 110V AC, 220V AC.
COVNA food-safe food grade sanitary solenoid valve could help you control the medium well for your food industry, medical industry and so on.

Consult us to get the valve solution!

Model

Function: Normally Closed / Normally Open
Pressure: 0 to 10 bar
Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media: -5 to 180℃ (23℉ to 176℉)
Suitable Media: Water, Alcohol, Soft Drink, Wine, etc
Material: Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Features Of HK0018 Tri Clamp Food Grade Sanitary Electric Solenoid Valve

● The Tri Clamp connection makes for fast, reliable, easy to clean and maintain pipe connections.

● Offering the food grade solutions for the food industry, medical industry and other applications that need food grade.

● Available in stainless steel 304 or 316L.

● FDA approved.

● Available in 12VDC, 24VDC, 24VAC, 110VAC, 220VAC voltage.

What's more, we provide the HK0018A high-temperature type food grade sanitary solenoid valve which could withstand high temperature up to 180℃ for your options.

To meet your special needs.

Technical Parameters Of Tri Clamp Food Grade Sanitary Electric Solenoid Valve:

Port size	1/2", 3/4", 1", 1¼", 1½", 2"	Orifice(mm)	15, 20, 25, 32, 40, 50
Connection Type	Clamp	Function	Normally Closed Or Normally Open
Pressure	0 to 10 bar	Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media	HK0018 series: -5 to 80℃ (23℉ to 176℉)HK0018A series: -5 to 180℃ (23℉ to 356℉)	Suitable Media	Water, Alcohol, Soft Drink, Wine, etc
Material	Stainless Steel (SS304 / SS316L )	Ambient Temperature	≤60℃
