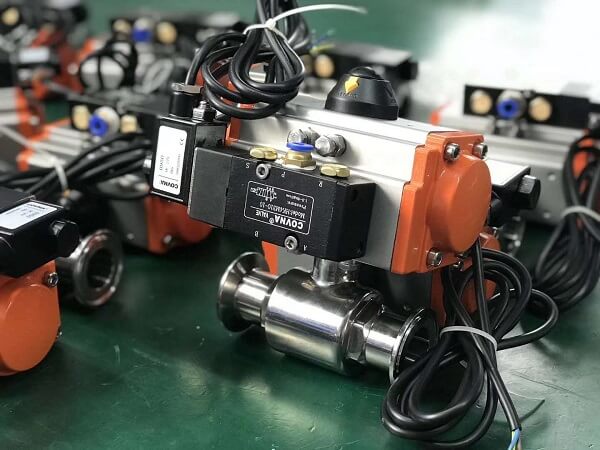

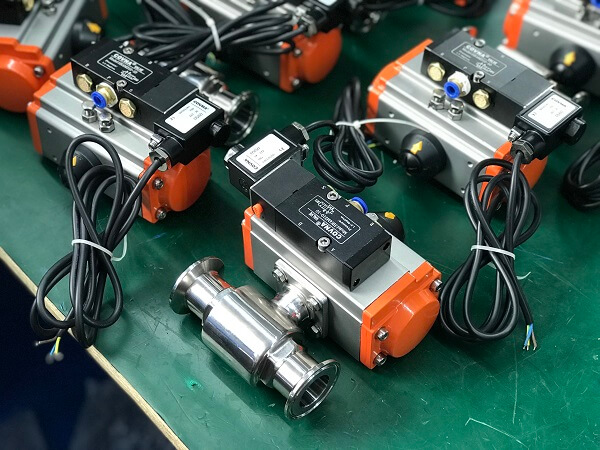

HK56-W Tri Clamp Food Grade Pneumatic Actuated Ball Valve

Short Description:

HK56-W Tri-Clamp Food Grade Pneumatic Actuated Ball Valve

Whether you’re looking to improve the efficiency of your valve automation system or simply want a more reliable solution for your fluid control needs, the COVNA pneumatic actuator is the perfect choice. With an incredible lifespan of up to 1 million cycles, this actuator is designed to deliver reliable, long-lasting performance in even the most challenging environments. Its robust design and exceptional durability ensure that your valves will operate smoothly and efficiently, even after years of use.
As a pneumatic actuated ball valve supplier, COVNA will commit to providing the quality and suitable valve for your project and help you save time and cost.

Model

Actuator Type: Spring Return / Double Acting
Air Supply Pressure: 2.5 bar to 8 bar
Pressure: 10 bar
Body Material: Stainless Steel 304/ 316L
Temperature Of Media:-10 to 180℃ (14℉ to 356℉)
Suitable Media: Water, Liquids, Food, Medicine, Corrosive Medium, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Pneumatic Sanitary Ball Valves:

COVNA Pneumatic Sanitary Ball Valves provide you with a safe and reliable fluid control solution. Sanitary ball valves are made of safe materials. Both the inside and outside of the valve are polished and sterilized. What's more, the ball valve incorporates food-grade seals to avoid food contamination.

Use with pneumatic actuators for easy remote control. Provide you with cost-effective and intelligent fluid control solutions.

Features Of HK56-W Tri Clamp Food Grade Pneumatic Actuated Ball Valve:

● Available in single-acting and double-acting actuators for your choice

● Rack and pinion pneumatic actuator with high torque up to 4678Nm

● Tri-clamp connection with the excellent food-grade performance

● Widely used in food and beverage, packing industry and other industries

● Suitable for gas, air, milk, drink, water and other mediums

● Also available in 3-way tri-clamp ball valve for your choice

Technical Parameters Of HK56-W Tri-Clamp Food Grade Pneumatic Actuated Ball Valve:

Size Range	19mm to 102mm	Connection	Tri-Clamp
Structure Type	2 Way	Actuator Type	Spring Return / Double Acting
Seal	PTFE	Valve Material Options	Stainless Steel 304/ 316L
Working Pressure	10 bar	Temperature Of Media	-10 to 180℃ (14℉ to 356℉)
Accessories Options	Tri-clamp fitting	Suitable Mediums	Water, Liquids, Food, Medicine, Wine, Corrosive Medium, etc

Dimension Of HK56-W Tri Clamp Food Grade Pneumatic Actuated Ball Valve:

Technical Parameters Of COVNA Pneumatic Valve Actuators:

Structure	Rack and pinion pneumatic valve actuator
Mounting	ISO5211, NAMUR, DIN3337
Air Supply Pressure	2.5 to 8 bar
Double Acting Type	Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm
Single Acting (Spring Return)	Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm
Optional Accessory	Offering Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve or Gearbox to help you control automated

COVNA AW Series Pneumatic Valve Actuators:

AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.

● Double acting type: Torque range from 515Nm to 157,300Nm

● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
