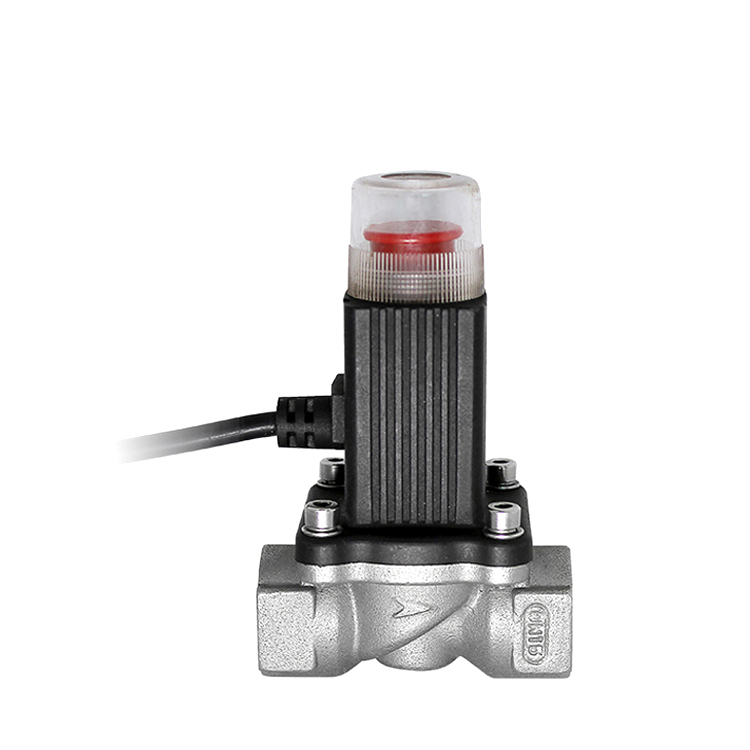

HKPS01-15 Gas Shut Off Solenoid Valve

Short Description:

HKPS01-15 Gas Shut Off Solenoid Valve

, specially designed as gas pipe breaker for emergency use. It can be connected with a gas leaking detection sensor, fire alarm circuit or other intelligent sensor modules so that on site or remote shut down on gas supply (manually or automatically) is possible, hence ensuring the safety on gas usage. The valve features an auto-close when strong vibration is detected. After closing, manual operation is required to turn on the valve. This feature meets safety regulations in the event of an accident.

Model

Suitable Gas Types: Town Gas
Body: Wrought Aluminum Alloy
Operation Temperature: -10 to 80℃ (14℉ to 176℉)
Pressure: 0 to 0.5 bar
Driving Voltage: DC 9V to 12V

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Technical Parameters Of HPS01A Gas Shut Off Solenoid Valves:

Port size	1/2", 3/4", 1"	Orifice(mm)	15, 20, 25
Connections	NPT, G	Turn On	Manual
Pressure	0.0 to 0.5 bar	Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media	-10 to 80℃ (14℉ to 176℉)	Suitable Media	Town Gas
Material	Stainless Steel	Sealing Material	NBR Rubber
Closing Modes	Current Impluse or Manual	Close Time	<1sec
Explosion Proof Mark	Exmb \|\|T4	Lead wire	0.4m

Working Principle:

When the switch is pressed, the capacitor discharges and provides an electric current so that a coil can generate strong magnetic held to pull down the valve, achieving the closing within one second.
