HK17S-F Flange Y Type Pneumatic Control Valve

Short Description:

HK17S-F Flange Y Type Pneumatic Control Valve

with flange connection type. 2/2 way function. Normally open and normally close are available. Suitable for water, steam, air and so on. Manufacturing flange Y type pneumatic control valve in ANSI, DIN, JIS and GB standardS for your choice. Consult us to get the best price!

Model

Actuator Material: Stainless Steel
Body Material: Stainless Steel
Medium Temperature: -20 to 180℃
Working Pressure: 16 Bar
Connection Type: Flange
Control Type: Spring Return / Double Acting

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

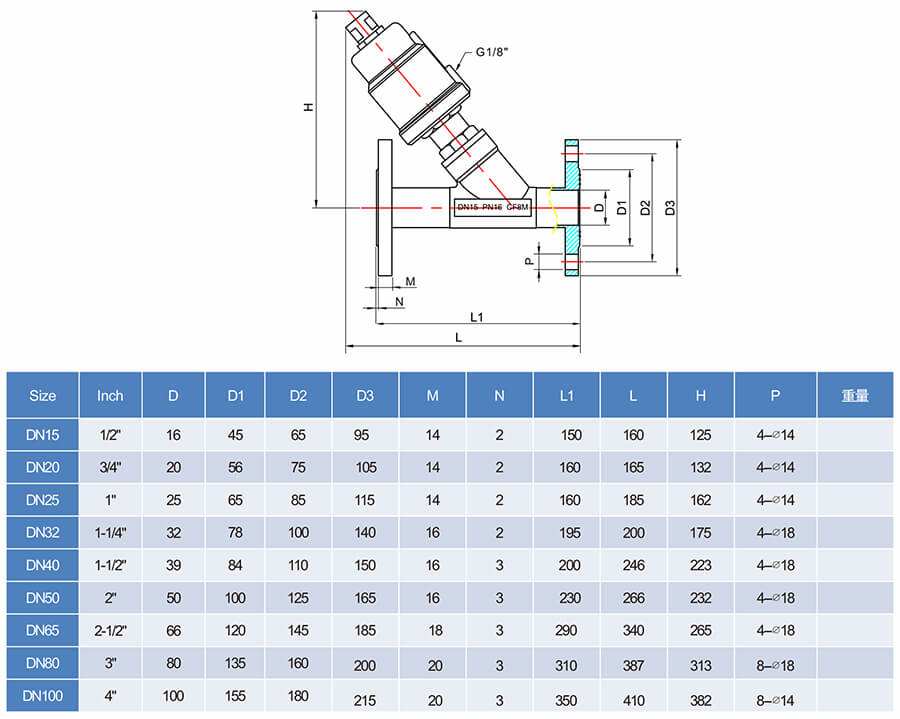

Technical Parameters Of Flanged Pneumatic Angle Seat Valve

Actuator Material	Stainless Steel	Body Material	Stainless Steel
Stem Material	304, 316, 316L	Seat material	PTFE, F46
Ambient temp	-30° to 80°C	Controlling pressure	0.3 to 0.8BMPa
Medium Temperature	-20 to 180℃	Working Pressure	16 Bar
Connection Type	Flange	Control Type	Spring Return / Double Acting
Applicable medium	water neutral gas or liquid, alcohol, oil, organic solvent, steam.	Optional accessory	Solenoid valve, limit switch box, positioner, etc
