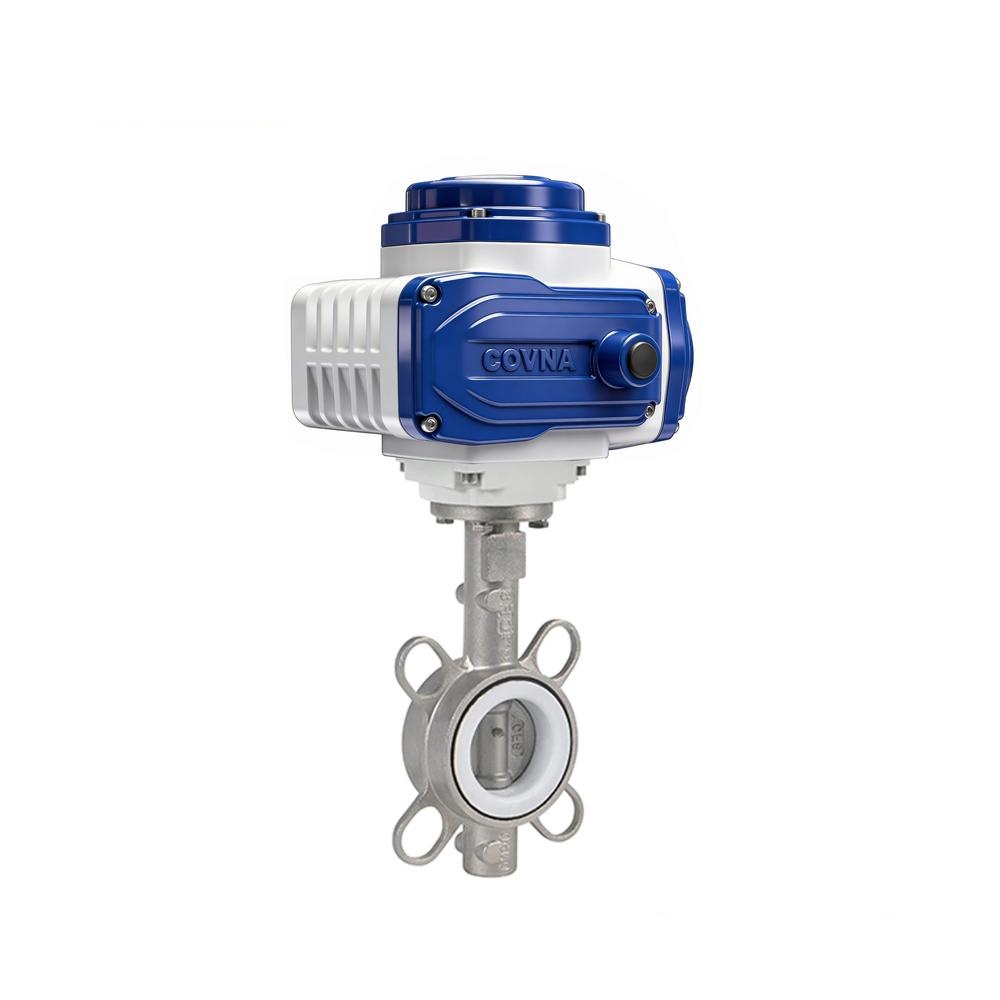

HK60-D Electric Actuated Wafer Butterfly Valves
Benefits Of Electric Actauted Wafer Butterfly Valves:
COVNA Electric actuated wafer butterfly valves provide you with application-oriented fluid control solutions. This butterfly valve adopts a wafer connection method. Advantages include ease of installation, ease of disassembly and maintenance, and long service life. We can change the material of the parts according to your project requirements, such as valve body material, seal material, valve plate material and so on.
Used with electric actuators, it can easily achieve the purpose of remote control, help you improve production efficiency and gain more market share.
Stainless Steel Type
Cast Iron Type
EPDM Sealing Type
PTFE Sealing Type
Technical Parameters Of HK60-D Electric Actuated Wafer Butterfly Valves:
| Medium | Wastewater, seawater, air, gas, etc | Port size | 2", 2.5", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24". Up to 72" |
| Connection Type | Wafer (ANSI, JIS, DIN, GB) | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V |
| Sealing Materials | EPDM/PTFE | Voltage Tolerance | ±10% |
| Body Materials | Cast iron, Carbon Steel, Stainless steel 304/316/316L | Working Pressure | 10Bar(Hard sealing up to 40 bar) |
| Disc Material | Stainless steel 304/316/316L | Temperature Of Media | -10℃ to 180℃ (14℉ to 356℉) |

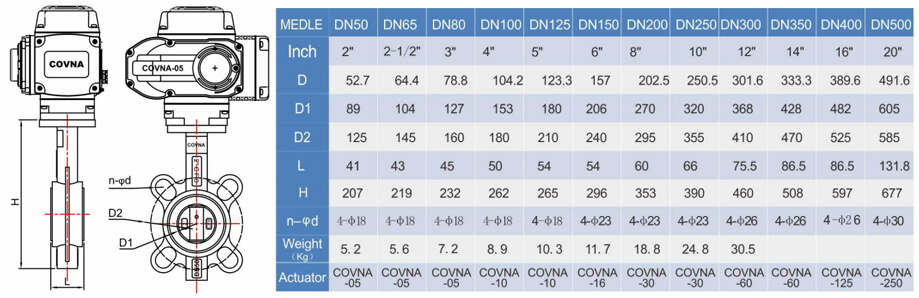

Dimension Of HK60-D Electric Actuated Wafer Butterfly Valves:
Technical Parameters Of COVNA Quarter Turn Electric Valve Actuators:
| ON/OFF Type | 4-20mA For 90 degrees open or close fully |
| Regulator Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5VFor regulating the open/close angle of the valve from 0 to 90 degrees |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP68 |
| Options | Manual override, Bluetooth control or LCD display screen |
| Model | 5 | 10 | 16 | 30 | 60 | 125 | 250 | 400 |
| Torque Output | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| 90°Cycle Time | 20s/60s | 15s/30s/60s | 30s/60s | 100s | 100s | 100s | ||
| Angle of Rotation | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° | 0-90° |
| Working Current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting Current | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Drive Motor | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Product Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Voltage Option | AC 110V, AC 220V, AC 380V, DC 12V, DC 24V | |||||||
| Insulation Resistance | DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V | |||||||
| Withstand Voltage | DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute | |||||||
| Protection Class | IP65 | |||||||
| Installation Angle | Any | |||||||
| Electrical Connection | G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire | |||||||
| Ambient Temp. | -30℃to 60℃ | |||||||
| Control Circuit | A: ON/OFF type with light indicator signal feedback | |||||||
| B: ON/OFF type with passive contact signal feedback | ||||||||
| C: ON/OFF type with resistance potentiometer signal feedback | ||||||||
| D: ON/OFF type with resistance potentiometer and neutral position signal feedback | ||||||||
| E: Regulation type with a servo control module | ||||||||
| F: DC24V/DC12V direct ON/OFF type | ||||||||
| G: AC380V three-phase power supply with passive signal feedback | ||||||||
| H: AC380V three-phase power supply with resistance potentiometer signal feedback | ||||||||
| Optional Function | Over Torque protectors, dehumidify heater, stainless steel coupling & yoke | |||||||
Other COVNA Electric Actuator Options:
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
