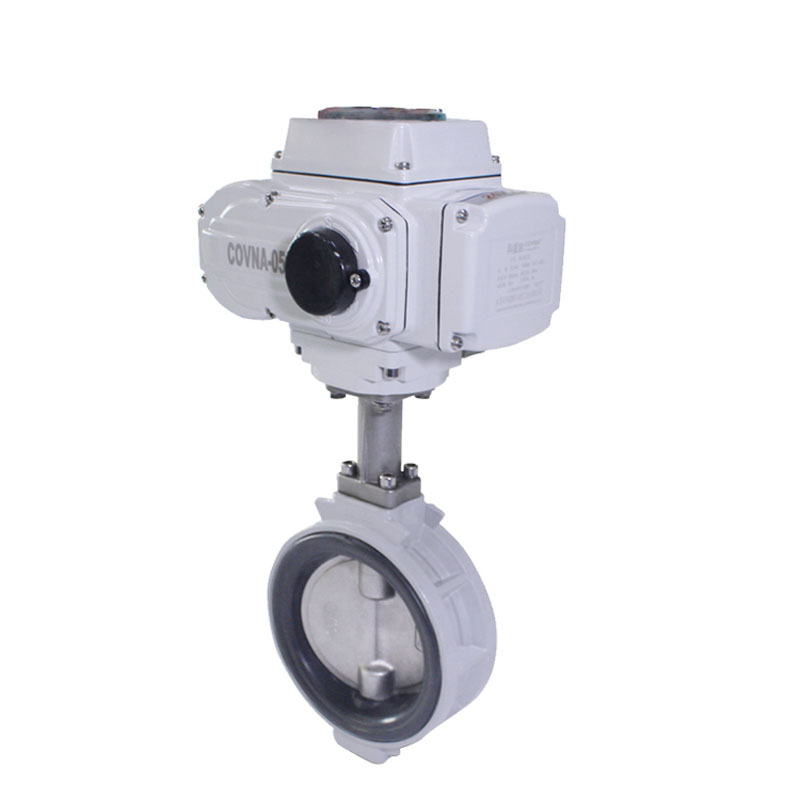

HK60-D-KITZ Lugless Motorised Actuator Butterfly Valve
Technical Parameters Of Valves:
| Port size | DN20 to DN200 | Working Pressure | 16bar (232psi) |
| Medium | Air, water, steam, oil, etc | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
| Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz | Voltage Tolerance | ±10% |
| End Connection | Wafer | Structure | Midline structure A type |
| Body Material | Aluminum Alloy | Core Materal | Stainless Steel, Aluminum Alloy |
Technical Parameters Of COVNA Quarter-Turn Electric Actuators:
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistant, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field Operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
| Voltage optional | AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized |
| Protection Class | IP65 |
| Torque | 50Nm to 4,000Nm |
Other COVNA Electric Actuator Options:
● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm
● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm
● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
Dimension:
Packing:
Company Show:
Certificates:
