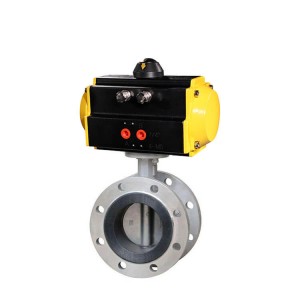

HK59-D-F Pneumatic Flanged Butterfly Valve Series
Benefits Of Pneumatic Flanged Butterfly Valves:
The advantages of pneumatic flanged butterfly valves are good sealing performance, zero leakage and long service life. Provide you with sustainable and reliable fluid solutions. Flanged butterfly valve can be divided into soft sealing butterfly valve and hard sealing butterfly valve according to the material of the seal to meet the needs of different working conditions. A variety of styles are available for you to choose from, providing you with flexible solutions.
Pneumatic actuators with positioners can receive or feedback signals and are compatible with various control systems to meet your remote control purposes.
According To The Sealing Type:
Soft Sealing

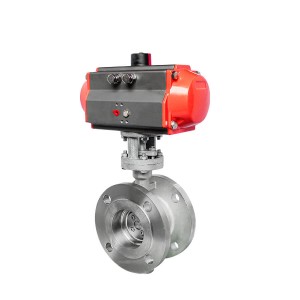

Hard Metal Sealing
According To The Material Type:

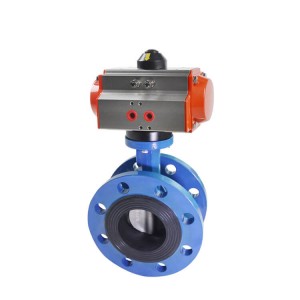

Cast Iron Material
Stainless Steel Material
Technical Parameters Of HK59-D-F Pneumatic Flanged Butterfly Valves:
| Actuator Type | Spring Return / Double Acting | Size Range | DN50 to DN1000 |
| Connection | Flanged (ANSI, JIS, DIN, GB) | Temperature Of Media | -10 to 180℃(14℉ to 356℉) |
| Mediums | Water, Wastewater, Steam, etc | Working Pressure | For soft sealing:16bar; For hard metal sealing: 40bar |
| Body Material | Stainless Steel 304/316/316L, Cast Iron or Carbon Steel | Disc Material | Stainless Steel |
| Seal Material | PTFE / EPDM / Hard Metal | Applications | Wastewater treatment, Shipbuilding, Flue-gas desulfurization, etc |
Dimension Of HK59-D-F Pneumatic Flanged Butterfly Valve:

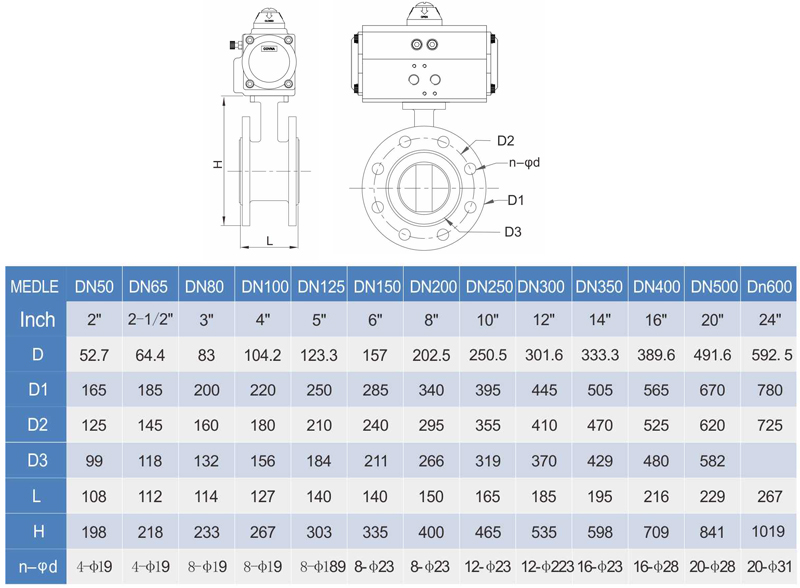

For Soft Sealing Type:

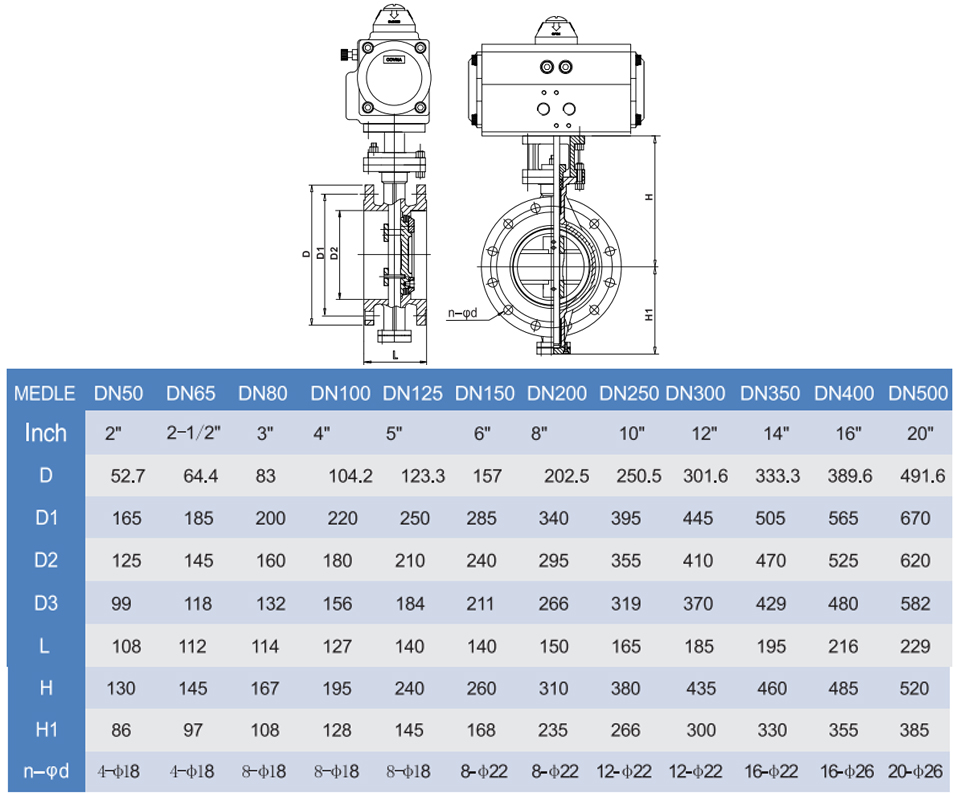

For Hard Metal Sealing Type:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close.Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
