COVNA Pneumatic Heating Jacket Ball Valve

Short Description:

Manufacturing

Pneumatic Heating Jacket Valve

Pneumatic insulated ball valves are available in a variety of stainless steel options, 304/304L/316/316L, which can adapt to your different engineering solutions, and have a durable insulation function, so that your media no longer lose heat.

Model

Actuator Type:Spring Return / Double Acting
Air Supply Pressure:2.5 bar to 8 bar
Pressure:10 / 16 / 20 / 64 bar
Body Material:Stainless Steel 304/304L/316/316L
Temperature Of Media:-10 to 180℃ (14℉ to 356℉)
Suitable Media:Water, Food, Beverage, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Features Of Pneumatic Heating Jakcet Ball Valve:

● Pneumatic Heating Jacket ball valve is suitable for viscous medium in pipeline

● Available in stainless steel 304/304L/316/316L.

● Seats can be designed with PTFE or PPL

Technical Parameters Of Pneumatic Heating Jacket Ball Valve :

Size Range	DN08-DN80	Material	Stainless Steel 304/304L/316/316L
Medium	Air, food, beverage, water, steam, oil, gas, etc	Core Material	Stainless Steel 304/304L/316/316L
Structure Type	Heating Jacket Ball Valve	Working Pressure	10 / 16 bar
Temperature Of Medium	-10 to 180℃(14℉ to 356℉)	Actuator Type	Spring Return / Double Acting

Dimension Of Pneumatic Heating Jacket Ball Valve:

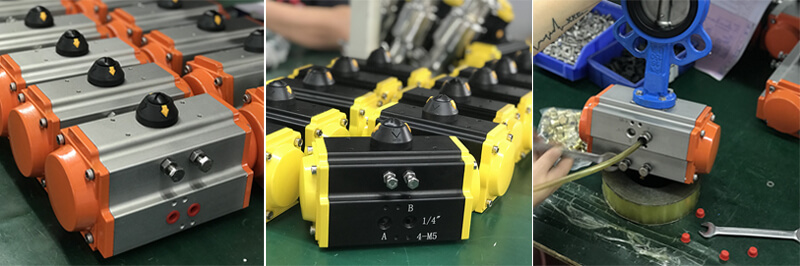

Technical Parameters Of Pneumatic Ball Valve Actuators:

Structure	Rack and pinion pneumatic valve actuator
Mounting	ISO5211, NAMUR, DIN3337
Air Supply Pressure	2.5 to 8 bar
Double Acting Type	Air to open, air to close, air supply failure to keep the current position.Torque range from 8Nm to 4678Nm
Single Acting (Spring Return)	Air to open, interrupt air to close, air failure to close.Torque range from 5Nm to 2792Nm
Optional Accessory	Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox
