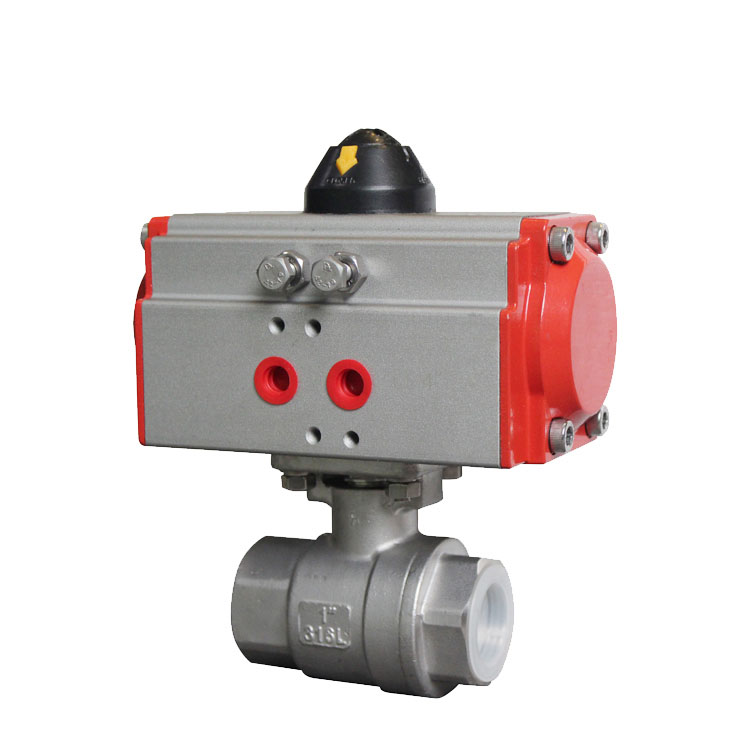

HK56-2PS Threaded Pneumatic Actuated Ball Valve
Benefits Of Pneumatic Threaded Ball Valves:
COVNA Pneumatic Threaded Ball Valves provide you with a reliable fluid control solution. Two-piece ball valves can be used for on-off media. Widely used in water treatment, wastewater treatment, irrigation and other industries. Two-piece threaded ball valves are used with pneumatic actuators for easy fluid control automation. It has the advantages of being cost-effective, easy installation and easy operation.
Features Of HK56-2PS Threaded Pneumatic Actuated Ball Valve:
● Available in spring return and double-acting type pneumatic actuator
● Rack and pinion pneumatic actuator with features of 1 million lifespans, high output torque and fast open/close
● Offering the cost-effective automation solution for you
● Widely used in water treatment, packing industry, food and beverage, paper and pulp, power plant, etc
Technical Parameters Of HK56-2PS Threaded Pneumatic Actuated Ball Valve:
| Size Range | DN08 to DN100 | Medium | Air, water, steam, oil, gas, etc |
| Connection | Female Thread | Structure Type | 2 Piece Ball Valve Design |
| Actuator Type | Spring Return / Double Acting | Working Pressure | 10 / 16 / 20 / 64 bar |
| Body Material | Stainless Steel 304/306/316L | Temperature Of Media | -10 to 180℃ (14℉ to 356℉) |
| Suitable Media | Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc | Seal Material | PTFE |
Dimension Of HK56-2PS Threaded Pneumatic Actuated Ball Valve:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
COVNA AW Series Pneumatic Actuator:
AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion-mounted ball valve. Ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
