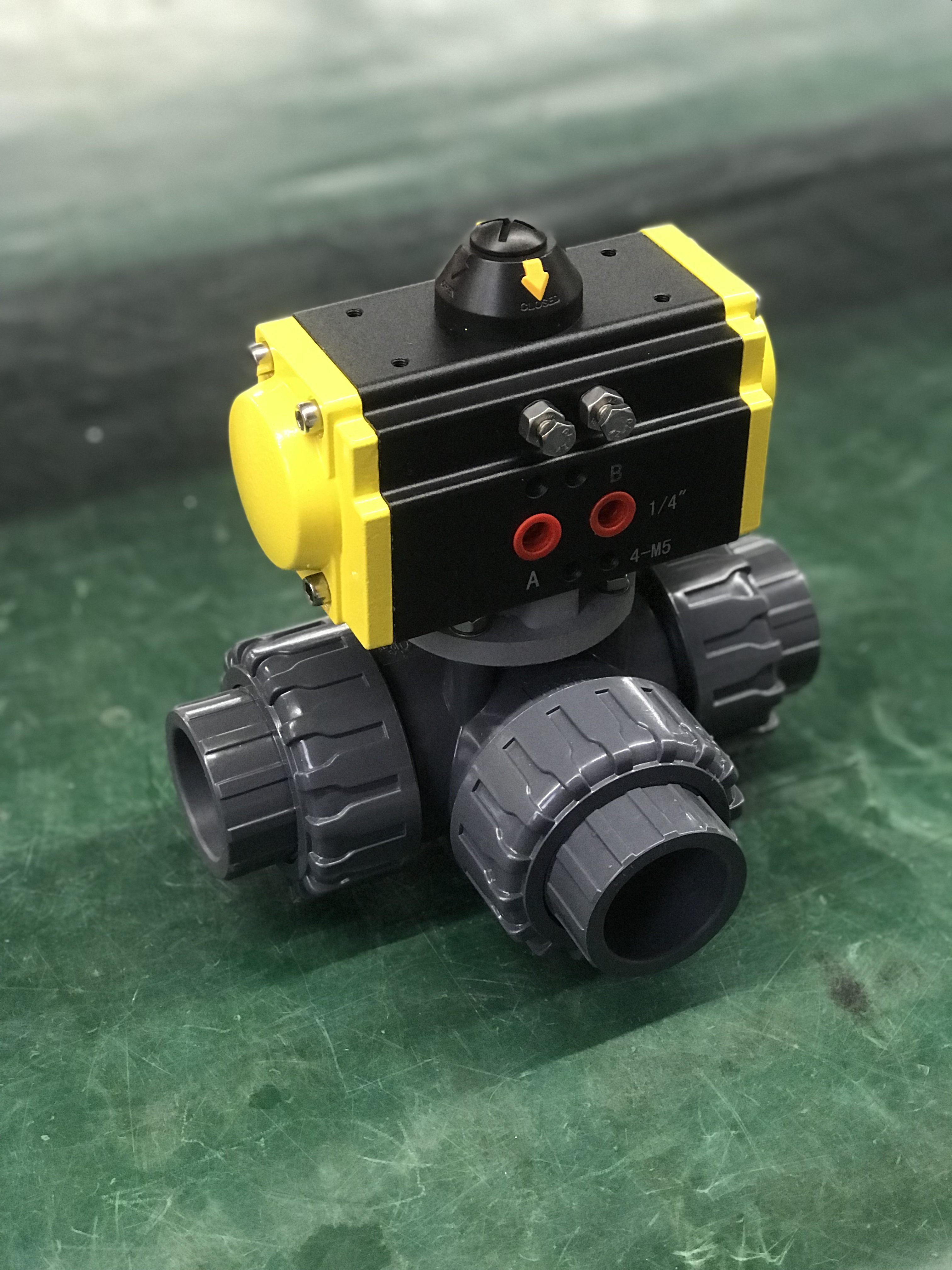

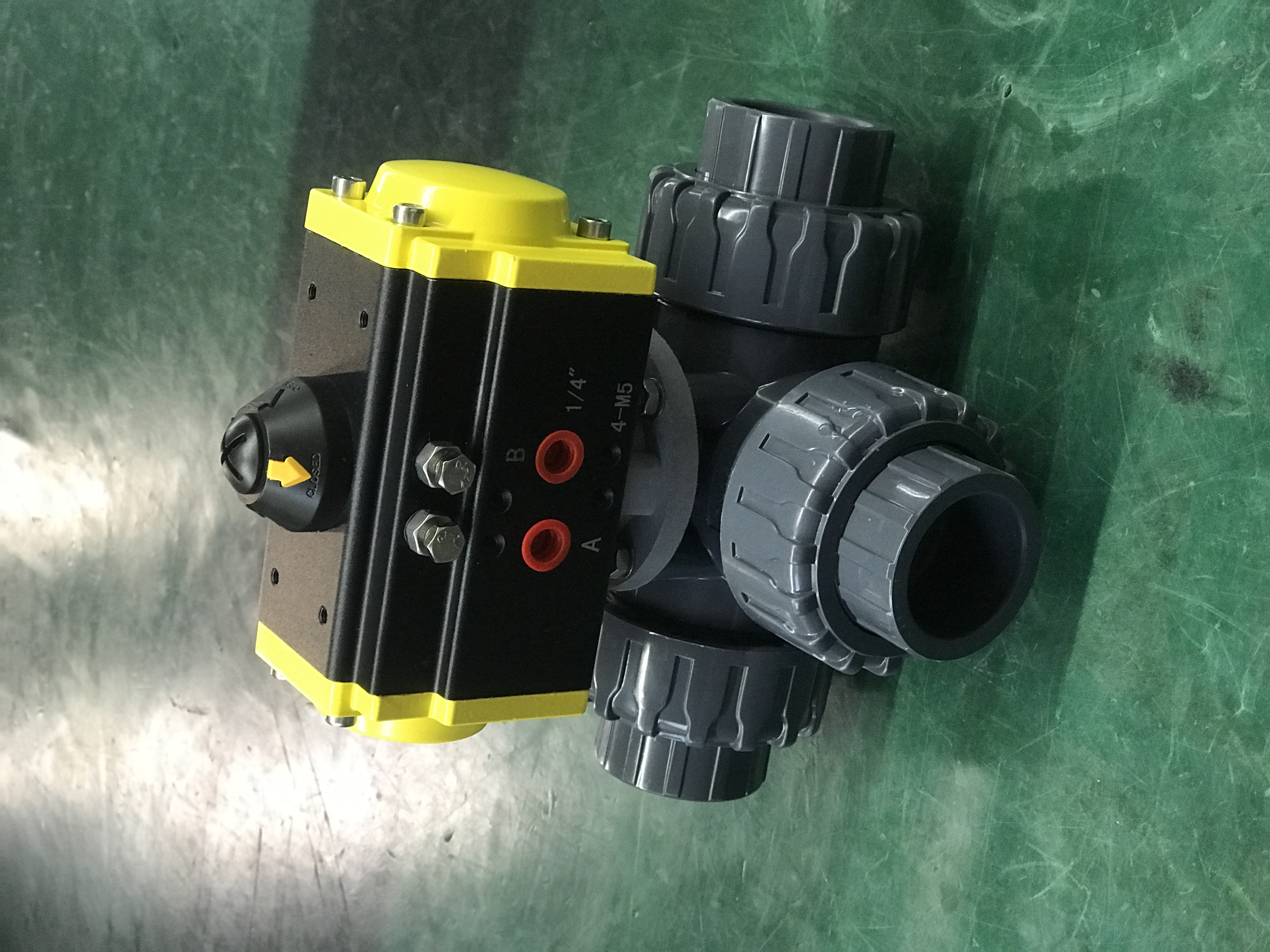

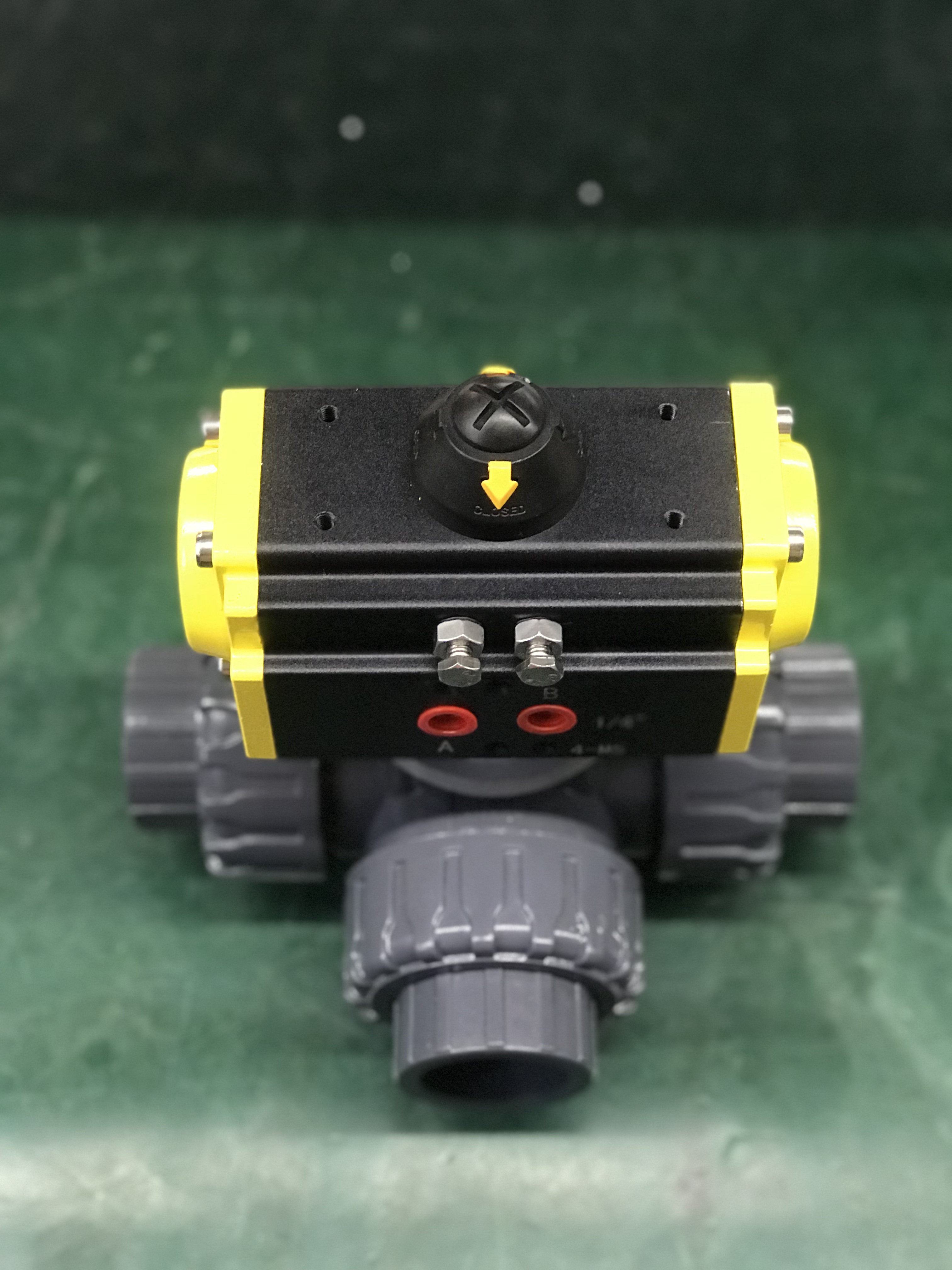

HK57-T Double Union PVC 3 Way Pneumatic Actuator Ball Valve

Short Description:

Features of

Double Union PVC 3 Way Pneumatic Actuator Ball Valve

including 1 million lifetime, high low, high torque and easy to installation. Widely used for various applications. Such as water treatment, water filter, etc. Spring return actuator and double acting actuator are available.
COVNA provides 3 way pneumatic actuator ball valve in T port and L port for your choice. To allow your project to have a good diverter performance.

Model

Actuator Type: Spring Return / Double Acting
Air Supply Pressure: 2.5 bar to 8 bar
Pressure: 10 bar (145 psi)
Body Material: Plastic UPVC / CPVC
Temperature Of Media: 60℃ (140℉)
Suitable Media: Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Pneumatic UPVC 3 Way Ball Valves:

COVNA Pneumatic UPVC 3-Way Ball Valves provide you with great value fluid solutions. UPVC three-way ball valve can help you achieve the needs of transport, shut-off and changing the flow direction of the medium. The advantages of UPVC ball valves are lightweight, easy installation and low cost. Available in T port and L port for you.

Using pneumatic actuators could help you improve production efficiency and reduce labor costs. Provide you with cost-effective fluid solutions.

Features Of HK57-T Double Union PVC 3 Way Pneumatic Actuator Ball Valve:

● 3-way ball valve design with excellent diverter performance

● Double union quick connection

● Available in T port and L port

● To provide supplementary platform-embedded copper nut products

Technical Parameters Of HK57-T Double Union PVC 3 Way Pneumatic Actuator Ball Valve:

Actuator Type	Spring Return / Double Acting	Size Range	DN15 to DN50
Port Thread	Double Union, Threaded	Body Material	Plastic UPVC / CPVC
Medium	Air, water, steam, oil, etc	Structure	T port / L port
Working Pressure	10 bar (145 psi)	Suitable Media	Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc
Body Material	Plastic UPVC / CPVC	Temperature Of Media	60℃ (140℉)

3 Way Ball Valve Flow Diagram:

Dimension Of HK57-T Double Union PVC 3 Way Pneumatic Actuator Ball Valve:

Technical Parameters Of COVNA Pneumatic Valve Actuators:

Structure	Rack and pinion pneumatic valve actuator
Mounting	ISO5211, NAMUR, DIN3337
Air Supply Pressure	2.5 to 8 bar
Double Acting Type	Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm
Single Acting (Spring Return)	Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm
Optional Accessory	Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox

COVNA AW Series Pneumatic Valve Actuators:

AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.

● Double acting type: Torque range from 515Nm to 157,300Nm

● Spring return type(single acting type): Torque range from 270Nm to 37,000Nm
