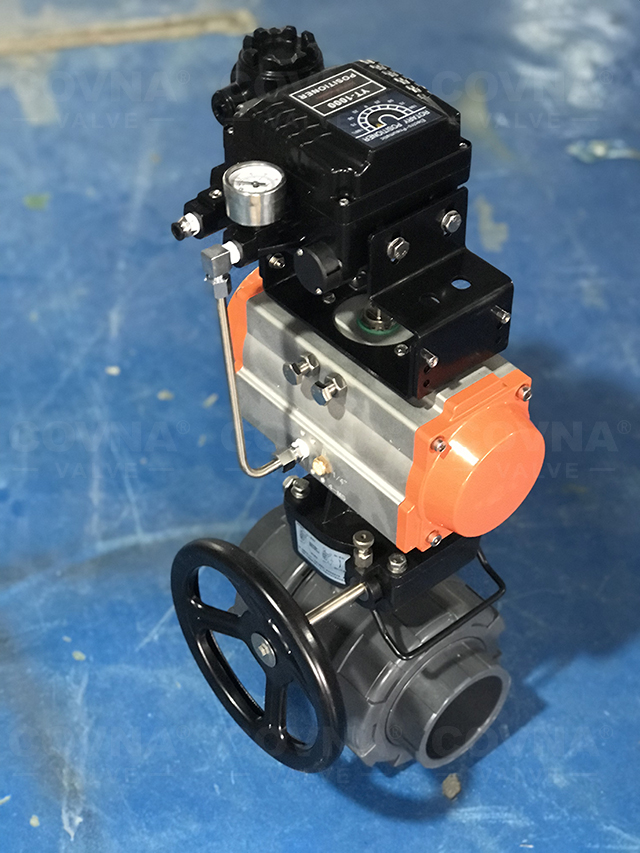

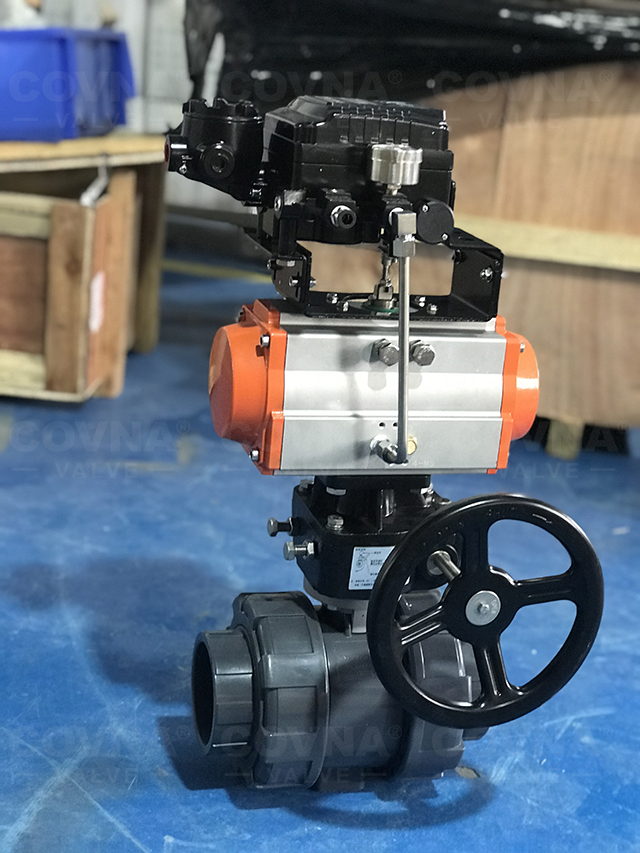

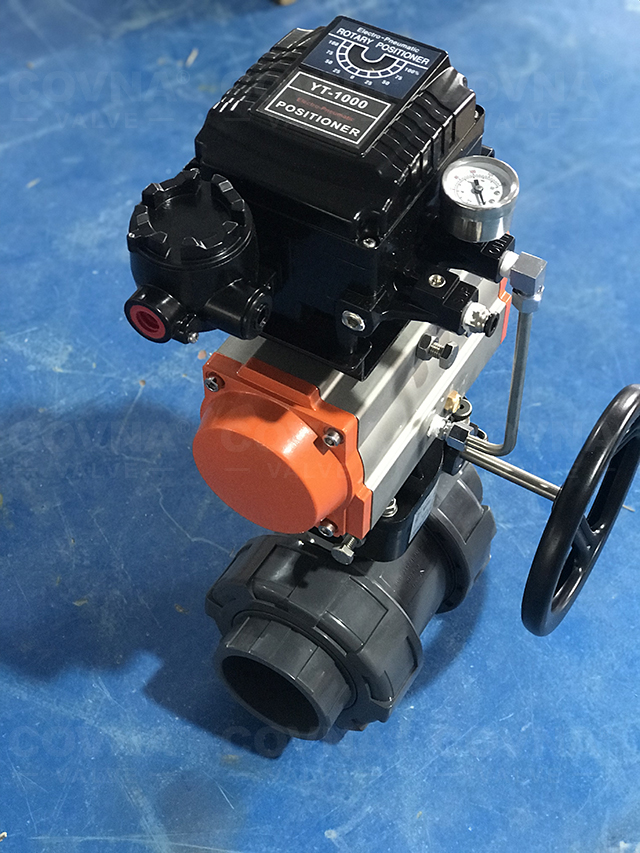

HK57 Double Union PVC Pneumatic Actuator Valve
Benefits Of Pneumatic UPVC Ball Valves:
In order to provide a flexible and suitable solution, we supply UPVC ball valves to provide you with a great value for money solution. UPVC has the advantage of low prices. Therefore, if your industry needs are general needs, then UPVC ball valve will be your first choice. Furthermore, in order to meet customer requirements for different media, we can also provide CPVC, PPH materials to meet your needs.
At the same time, pneumatic actuators have the advantages of low price, fast switching speed, environmental protection, explosion-proof and other advantages, which can help you control the flow remotely.
Features Of HK57 Double Union PVC Pneumatic Actuator Valve:
● Made by UPVC or CPVC material with features of lightweight and anti-corrosion
● Lowest cost. Offering a cost-effective valve solution for your project
● Can use the handle regulating valve seat tightness
● Released by the central section is still intact, the valve is replaceable
● To provide supplementary platform embedded copper nut products
● Available in single-acting and double-acting pneumatic actuators for your choice
Technical Parameters Of HK57 Double Union PVC Pneumatic Actuator Valve:
| Medium | Air, water, gas, oil, wine, etc | Actuator Type | Spring Return / Double Acting |
| Ball Materials | Plastic UPVC or CPVC | Working Pressure | 10 (145 psi) |
| Valve Body Material | Plastic UPVC or CPVC | Temperature Of Media | 60℃(140℉) |
| Suitable Media | Water, Liquids, Gas, Oil, Air, Steam, Corrosive Medium, etc | Size Range | DN15 to DN100 |
| End Connection | Double Union, Threaded | Seal Material | EPDM |
Dimension of HK57 Double Union PVC Pneumatic Actuator Valve:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position.Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
| Air Supply Pressure | 2.5 to 8 bar |
COVNA AW Series Pneumatic Actuator:
AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. To ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
