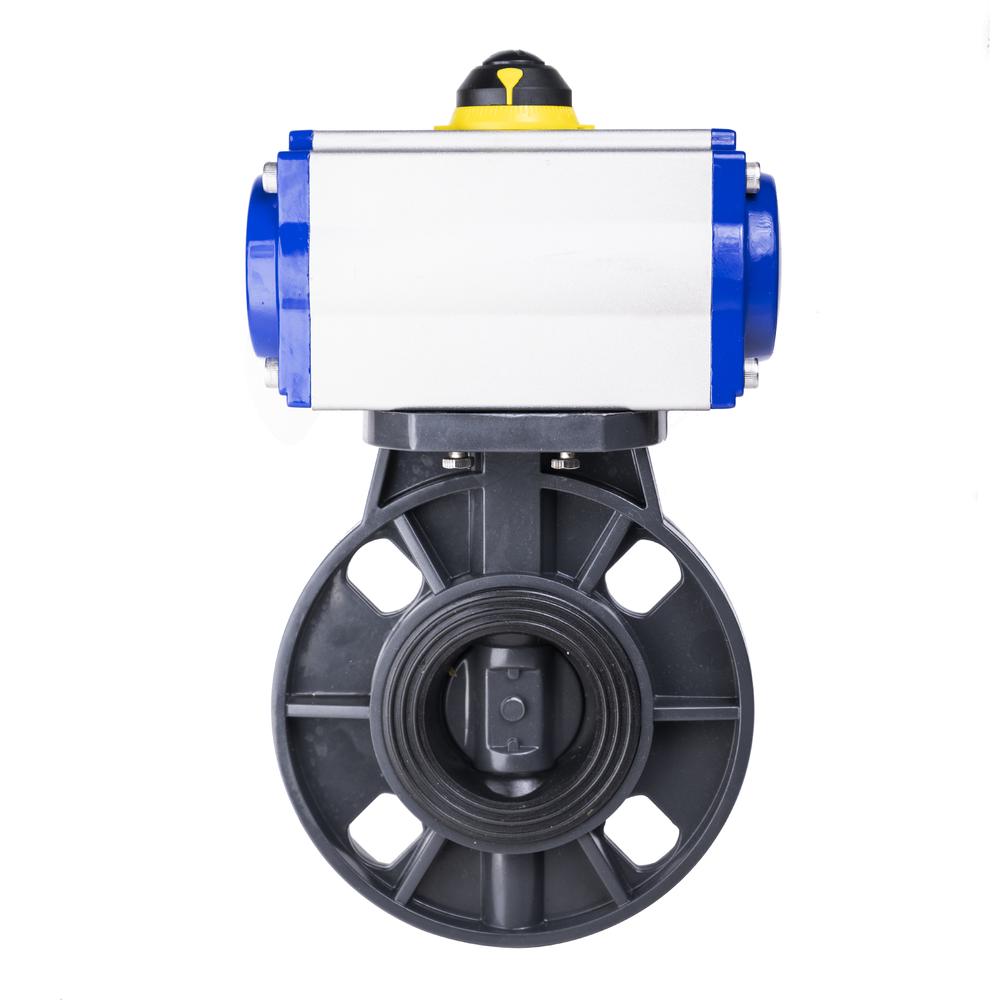

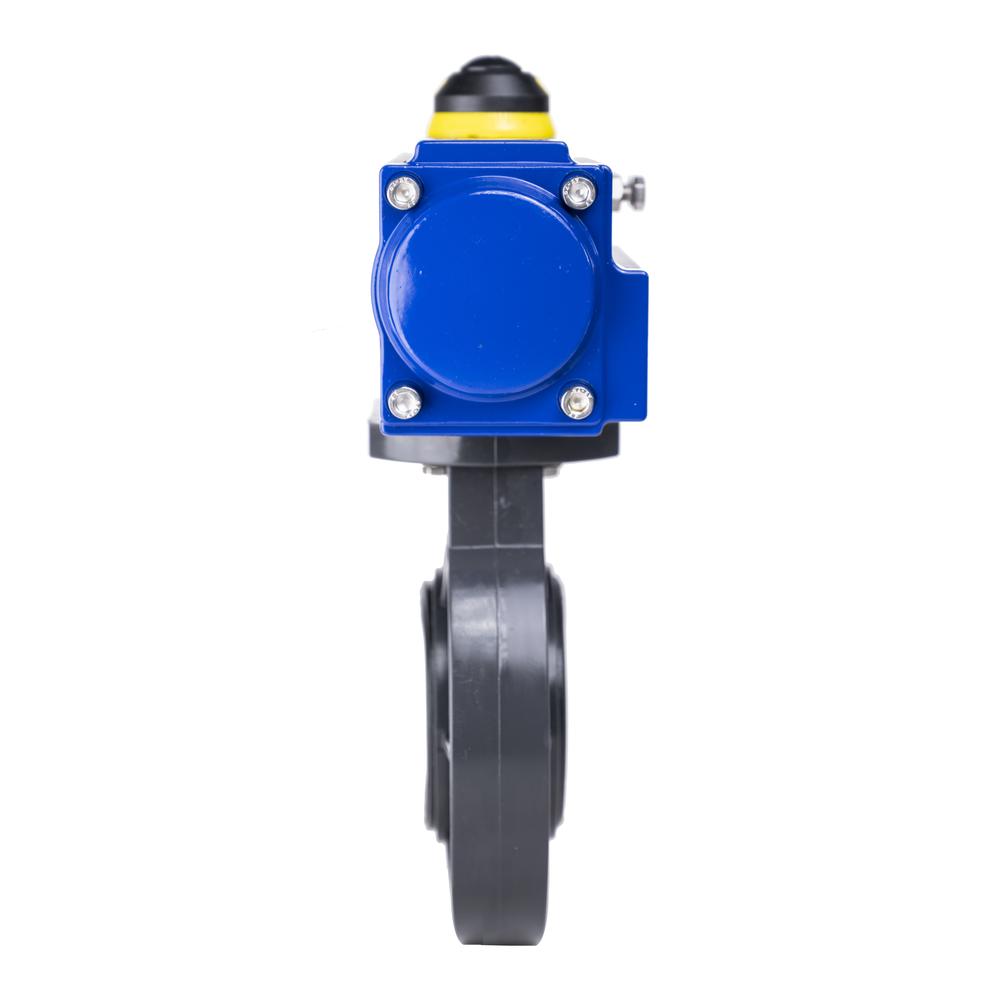

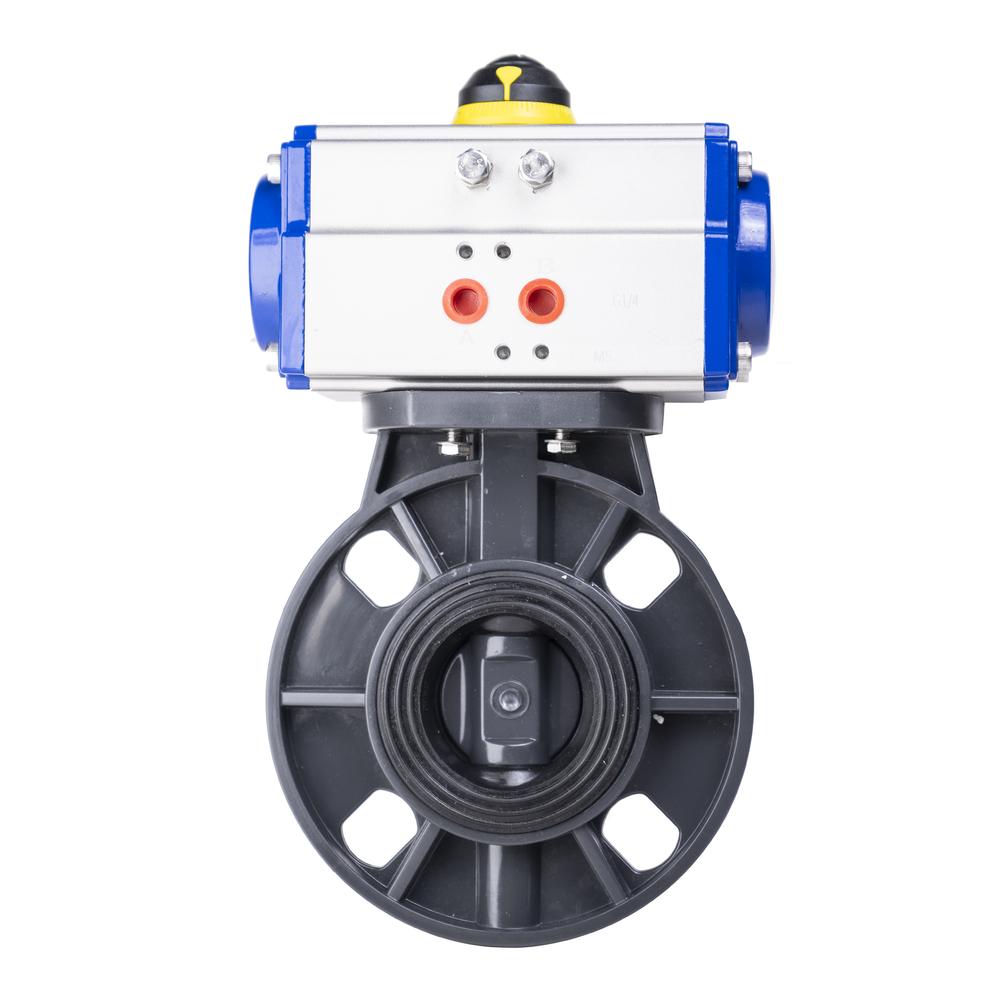

HK59-D-P PVC Pneumatic Actuator Butterfly Valve

Short Description:

PVC Pneumatic Actuator Butterfly Valve

for water, oil, air, gas control. Adopt UPVC material as the valve body with features of lightweight and corrosive resistance. Also available in CPVC and PPH material. Suitable for most mediums like water. The temperature range of PVC pneumatic butterfly valve is -5℃ to 80℃(23℉ to 176℉).
As a pneumatic actuator butterfly valve, we will help you select the right valve and provide a cost-effective actuation solution for your project.
Consult us to get more details!

Model

Actuator Type: Spring Return / Double Acting
Air Supply Pressure: 2.5 bar to 8 bar
Pressure: 10 / 16 bar
Body Material: Plastic UPVC / CPVC / PPH
Temperature Of Media:- 5 to 80℃ (23℉ to 176℉)
Suitable Media: Water, Liquids, Gas, Oil, Air, Corrosive Medium, etc

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Pneumatic UPVC Butterfly Valves:

COVNA Pneumatic UPVC Butterfly Valves provide you with a great value for money fluid control solution. The advantages of UPVC butterfly valve are low cost, lightweight, easy installation and easy operation. UPVC butterfly valve is suitable for general water treatment industry, offering the competitive solution to you.

Use pneumatic actuators to easily achieve remote control and help you achieve industrial automation.

Features Of HK59-D-P PVC Pneumatic Actuator Butterfly Valve:

● Made by PVC material with features of lightweight,anti-corrosion, and easy to install

● Lowest cost. Offering cost-effective valve solution for you

● Wafer quick connection

● Available in spring return and double-acting pneumatic actuator

● Rack and pinion pneumatic actuator with high output torque up to 4678Nm

Technical Paraments Of HK59-D-P PVC Pneumatic Actuator Butterfly Valve:

Actuator Type	Spring Return / Double Acting	Structure	Midline Structure / A Type
Working Pressure	10 / 16 bar	Body Material	UPVC (CPVC, PPH are available)
Media	Air, water, oil, gas, etc	Temperature Of Media	-5 to 80℃(23℉ to 176℉)
Size Range	DN50 to DN600	Connection	Flange
Seal Material	EPDM	Optional Accessories	Solenoid Valve, Positioner, Directional Control Valve, Limit Switch, Gearbox

Dimension Of HK59-D-P PVC Pneumatic Actuator Butterfly Valve:

Technical Parameters Of COVNA Pneumatic Valve Actuators:

Structure	Rack and pinion pneumatic valve actuator
Mounting	ISO5211, NAMUR, DIN3337
Air Supply Pressure	2.5 to 8 bar
Double Acting Type	Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm
Single Acting (Spring Return)	Air to open, interrupt air to close, air failure to close. Torque ranges from 5Nm to 2792Nm
Optional Accessory	Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox

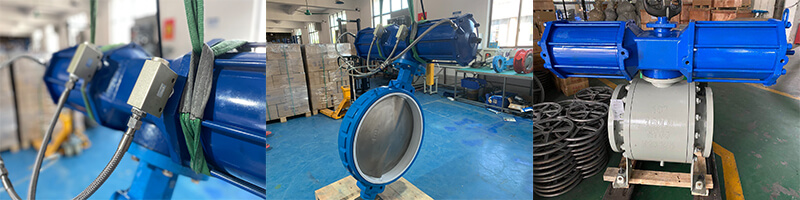

COVNA AW Series Pneumatic Valve Actuators:

AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as a trunnion-mounted ball valve. Ensure the valve opens or closes smoothly.

● Double acting type: Torque range from 515Nm to 157,300Nm

● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
