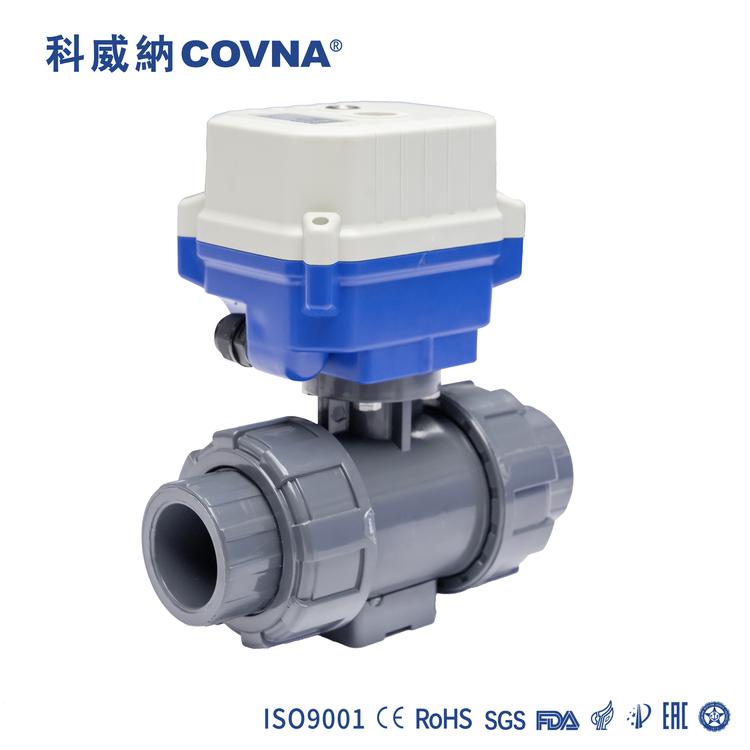

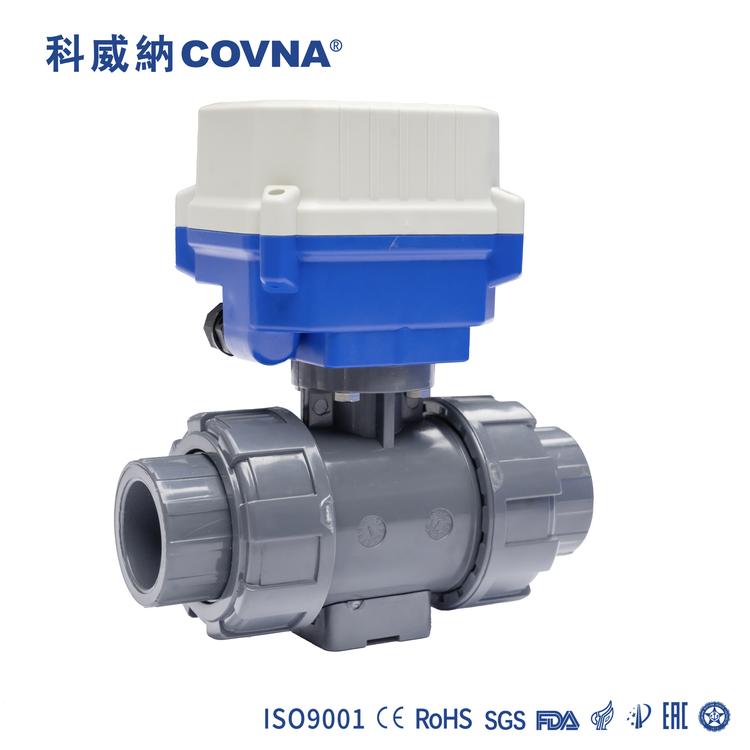

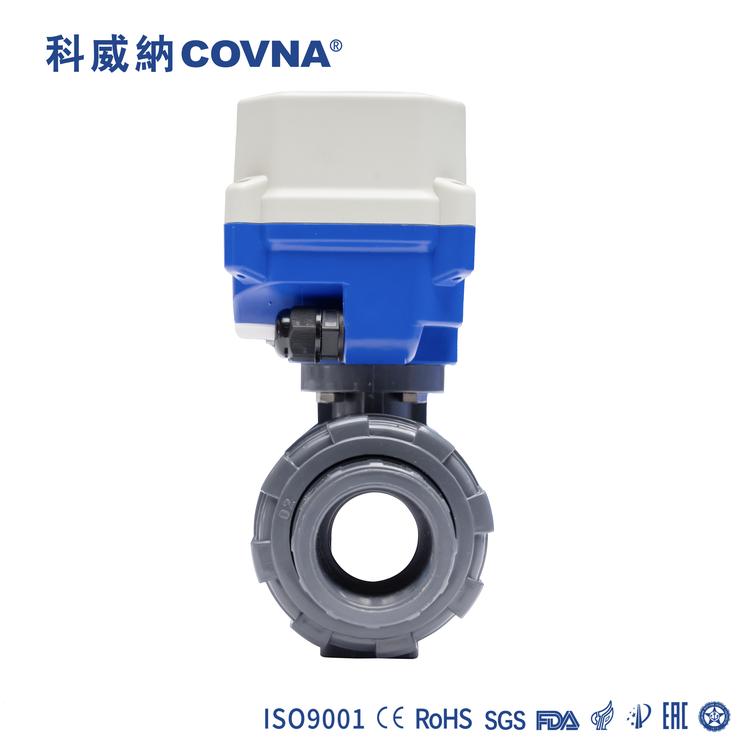

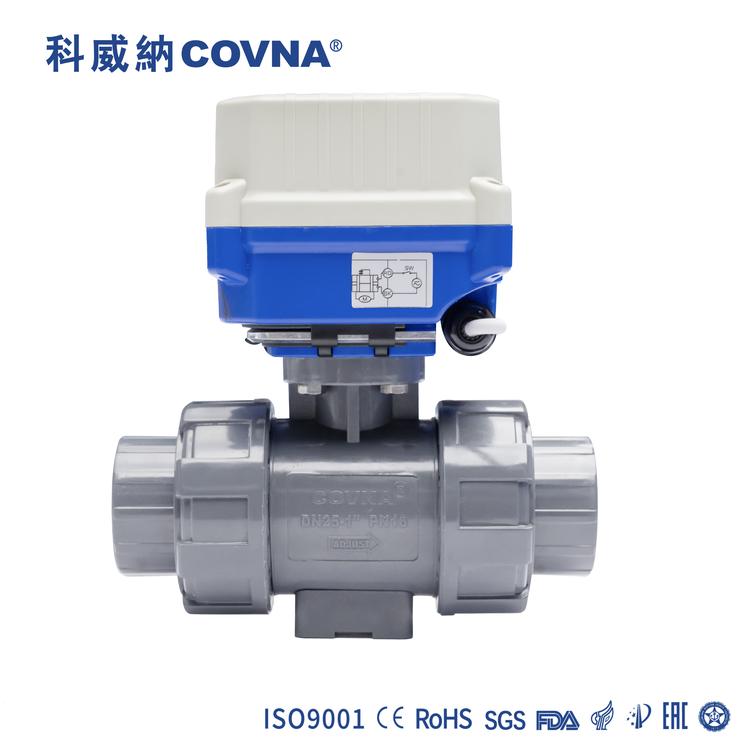

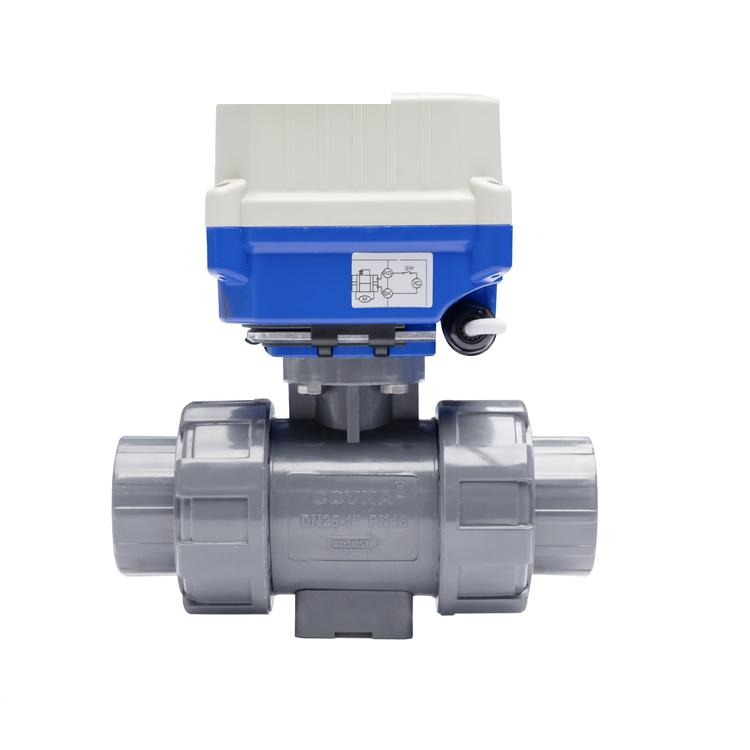

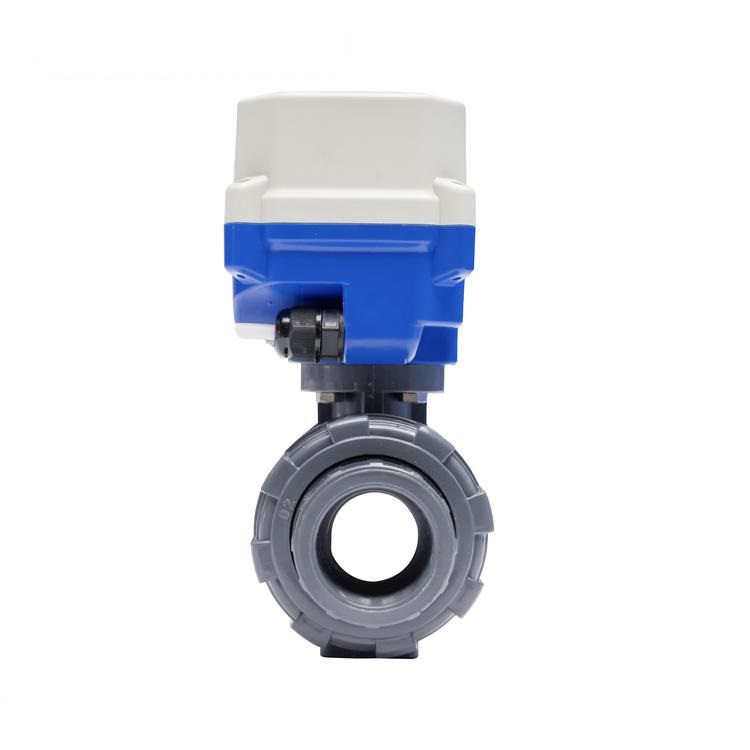

HK62-P UPVC Electrically Actuated Ball Valve
Benefits Of UPVC Electrically Actuated Ball Valve:
COVNA electrically actuated UPVC ball valve provides you with a flexible fluid control solution. Its advantages are small size, lightweight and easy installation. Widely used in various types of skid-mounted systems such as water skid-mounted systems, food process skid-mounted systems and so on.
The motorized valve actuator contains a battery. This means that when the project is powered off suddenly, the battery will be a power source, driving the valve to close or open, ensuring the safety of your project.
Features Of HK62-P UPVC Electrically Actuated Ball Valve:
● The electric actuator could be custom by your needs. It could be ordinary type, fail-safe type, timer control type and regulation type
● We also could help you to custom the switch angle to allow you to regulate the flow rate easier
● Full copper gear design with the feature of high output torque
● UPVC valve body design with the feature of lightweight and low cost
● Double union quick connection
● Compact design for small equipment
Technical Parameter Of HK62-P UPVC Electrically Actuated Ball Valve:
| Port size range | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2" | Ambient Temperature | -15 to 50℃ |
| Rated Voltage | DC-12V, 24V;AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz | Working Current | ≤500mA |
| Open/Close Time | ≤5S | Life Time | 70,000 Times |
| Actuator Material | Engineering Plastics | Torque Output | 2.0N.M |
| Liquid Temperature | -5 to 80℃ | Max. Working Pressure | 1.0 MPa |
Dimension Of HK62-P UPVC Electrically Actuated Ball Valve:
