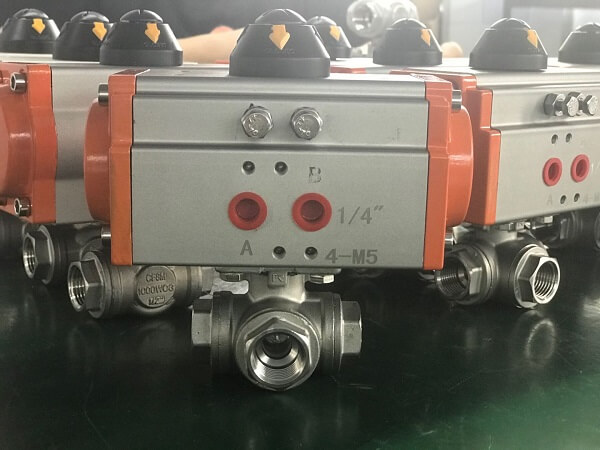

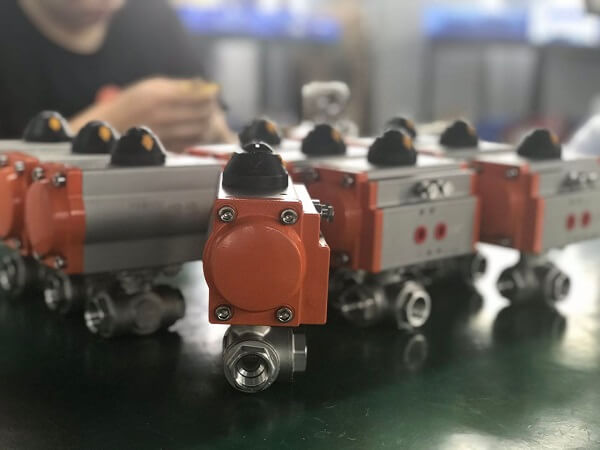

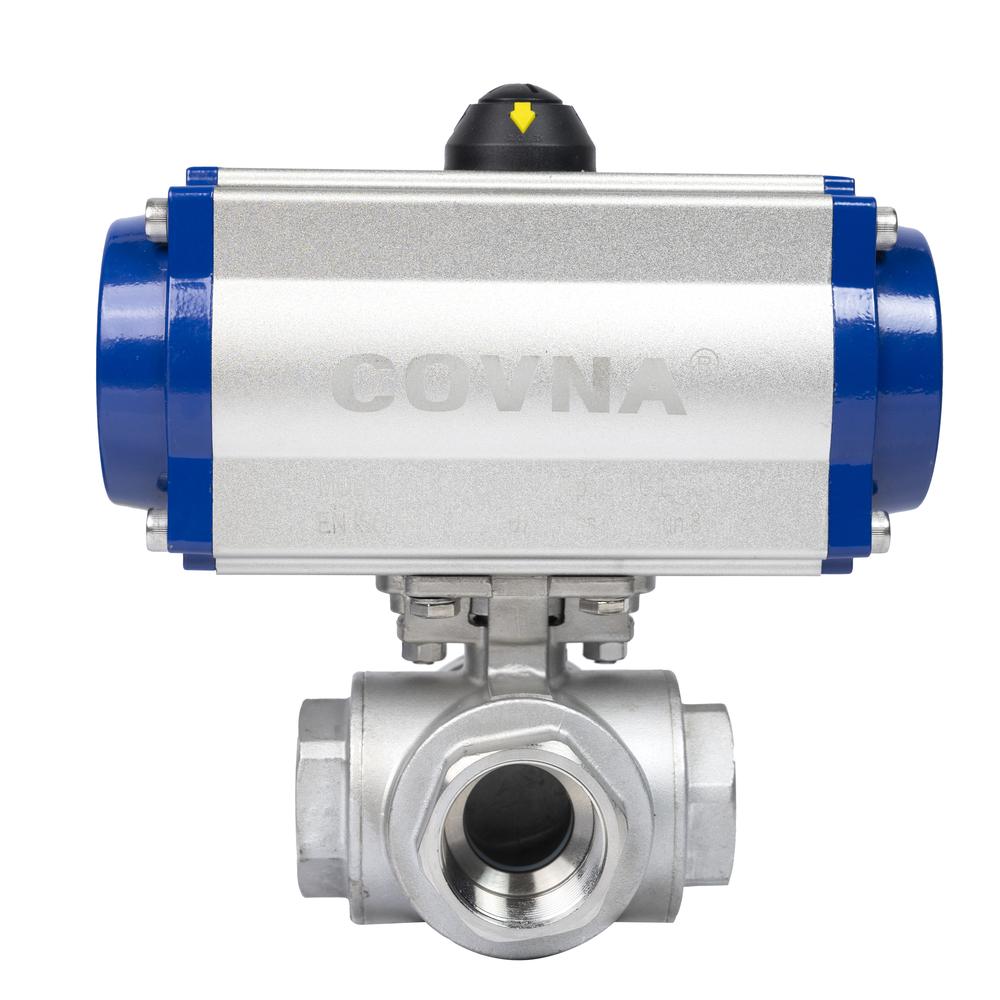

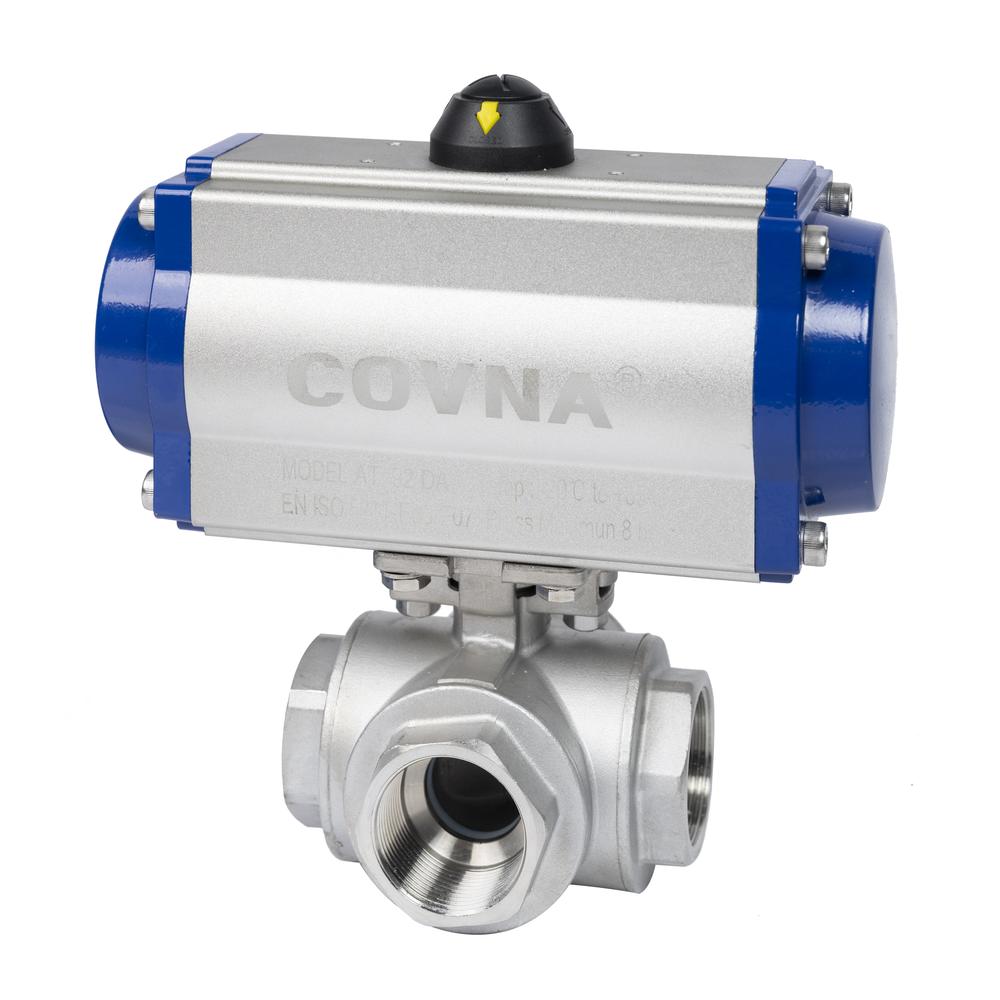

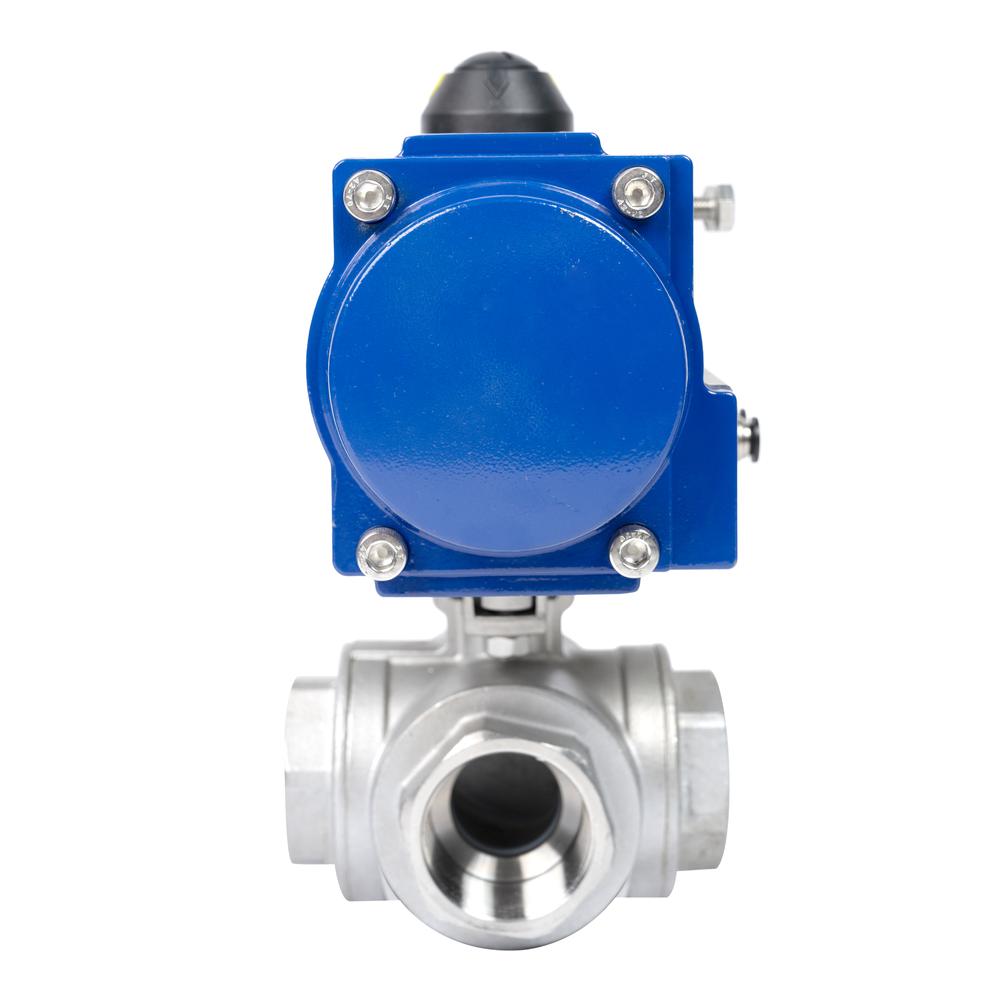

HK56-T Stainless Steel 3 Way Pneumatic Actuator Ball Valve
Features Of HK56-T Stainless Steel 3-Way Pneumatic Actuator Ball Valve:
● Available in G and NPT threaded
● Available in T port and L port
● Spring return and double-acting pneumatic actuator for your choice
● Available in stainless steel 304/316/316L material. Offering a no-rust solution for your applications
Benefits Of Pneumatic 3-Way Threaded Ball Valves:
COVNA pneumatic three-way threaded ball valve provides you with professional fluid control solutions. The advantages of 3-way threaded ball valves are full bore, smooth flow characteristics, easy installation, simple operation and a wide range of applications. Suitable for waste treatment, reverse osmosis plant, media filtration systems, membrane filtration systems and so on.
Equipped with rack and pinion pneumatic actuator with high torque range to ensure the valve opens or close fully. Helping you control remotely and helping you to increase productivity.
Technical Parameters Of HK56-T Stainless Steel 3 Way Pneumatic Actuator Ball Valve:
| Size Range | DN08 to DN100 | Material | Stainless Steel 304/316/316L |
| Medium | Air, water, steam, oil, gas, etc | Connection | Female Thread |
| Structure Type | 3 Way T / L Port | Working Pressure | 10 / 16 bar (145 / 232 psi) |
| Temperature Of Medium | -10 to 180℃(14℉ to 356℉) | Actuator Type | Spring Return / Double Acting |
| Core Material | Stainless Steel 304/316/316L | Connection Options | G, NPT, BSP and BSPP options |
3 Way Ball Valve Flow Diagram:
Technical Parameters Of COVNA Pneumatic Valve Actuators:
| Structure | Rack and pinion pneumatic valve actuator |
| Mounting | ISO5211, NAMUR, DIN3337 |
| Air Supply Pressure | 2.5 to 8 bar |
| Double Acting Type | Air to open, air to close, air supply failure to keep the current position. Torque range from 8Nm to 4678Nm |
| Single Acting (Spring Return) | Air to open, interrupt air to close, air failure to close. Torque range from 5Nm to 2792Nm |
| Optional Accessory | Positioner, Limit Switch, F.R.L, Pneumatic Solenoid Valve, Gearbox |
COVNA AW Series Pneumatic Valve Actuators:
AW series high torque pneumatic rotary actuator suitable for the large size ball valve which has higher torque needs. Such as trunnion mounted ball valve. Ensure the valve opens or closes smoothly.
● Double acting type: Torque range from 515Nm to 157,300Nm
● Spring-return type(single-acting type): Torque range from 270Nm to 37,000Nm
