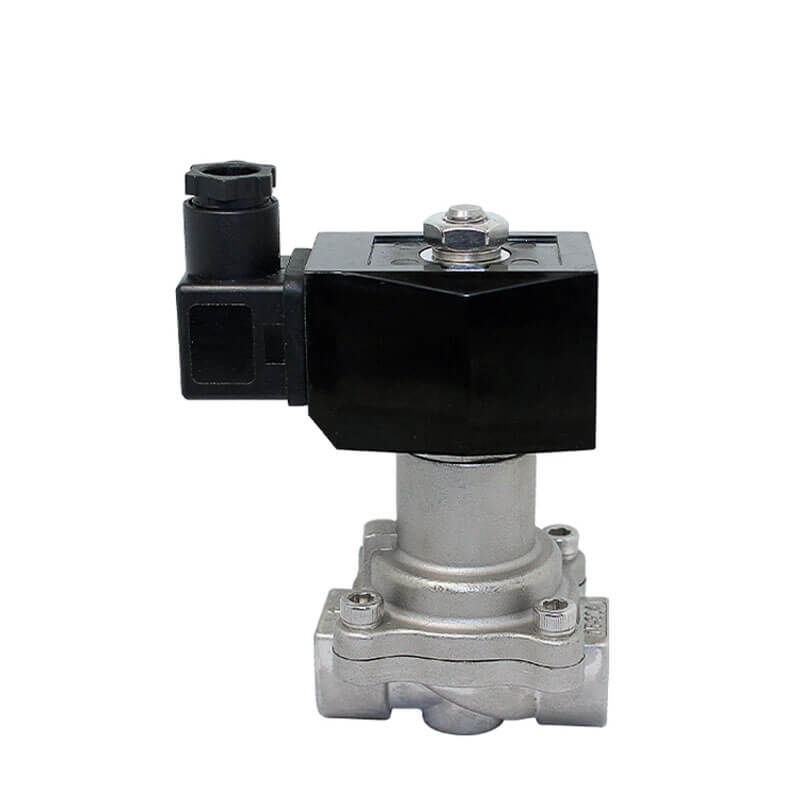

HK08-S Steam Solenoid Valve – Stainless Steel
Features Of HK08 Steam Solenoid Valves
● Excellent heat-resistance performance
● Suitable for steam, hot water, hot oil mediums
● Could withstand high medium temperature up to 180℃
● Pressure range from 0.3bar to 16bar
● Available in thread and flange connection types for your choice
HK08G is our new product.
It has a heat sink and it has good heat dissipation performance to prevent the coil from being damaged by overheating. HK08G could withstand high-temperature range up to 300℃
Technical Parameters Of High-Temperature Solenoid Valves:
| Port size | 3/8", 1/2", 3/4", 1", 1.2", 1.5", 2" | Orifice(mm) | 12, 15, 20, 25, 32, 40, 50 |
| Port Thread | NPT, G | Function | Normally Closed / Normally Open |
| Pressure | 0.03 to 1.6 MPa (0.3 to 16 bar) | Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz |
| Temperature of Media | For HK08: -10 to 180℃(14℉ to 356℉)For HK08G: -10 to 300℃(14℉ to 572℉) | Suitable Media | Hot water, hot oil, steam, etc |
| Material | Stainless Steel 304/316/316L | Voltage Tolerance | ±10% |
| Size | Port Size | Orifice | Cv | Min Pressure | Max Pressure |
| HK08-12 | 3/8" | 12 | 4.5 | 0.03 MPa | 1.6 MPa |
| HK08-15 | 1/2" | 15 | 4.5 | 0.03 MPa | 1.6 MPa |
| HK08-20 | 3/4" | 20 | 9.3 | 0.03 MPa | 1.6 MPa |
| HK08-25 | 1" | 25 | 12 | 0.03 MPa | 1.6 MPa |
| HK08-32 | 1 1/4" | 32 | 24 | 0.03 MPa | 1.6 MPa |
| HK08-40 | 1 1/2" | 40 | 29 | 0.03 MPa | 1.6 MPa |
| HK08-50 | 2" | 50 | 48 | 0.03 MPa | 1.6 MPa |
Dimension Of HK08 Solenoid Valves:
